Specifications
CNC or Not :
CNC
Condition :
New
Grinding Length(mm) :
450
Wheel Size(mm) :
200
Surface Roughness(μm) :
0.65 μm
Table Size(mm) :
200*460
Table Travel (X) (mm) :
238
Table Travel (Y) (mm) :
510
Place of Origin :
Henan, China, China
Brand Name :
Timeway
Weight (KG) :
1600
Warranty :
1 Year
Key Selling Points :
High Productivity
Showroom Location :
India, Canada, Russia
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Bearing, Gearbox
Applicable Industries :
Manufacturing Plant, Construction works , Machinery Repair Shops
Name :
surface grinder
Keywords :
grinder
Machine Type :
cnc grinder
Model :
SG-2050CNC
Precision :
High precision
Color :
customized
Distance from spindle to table :
450
Table cross travel :
238
Table longitudinal travel :
510
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$168,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

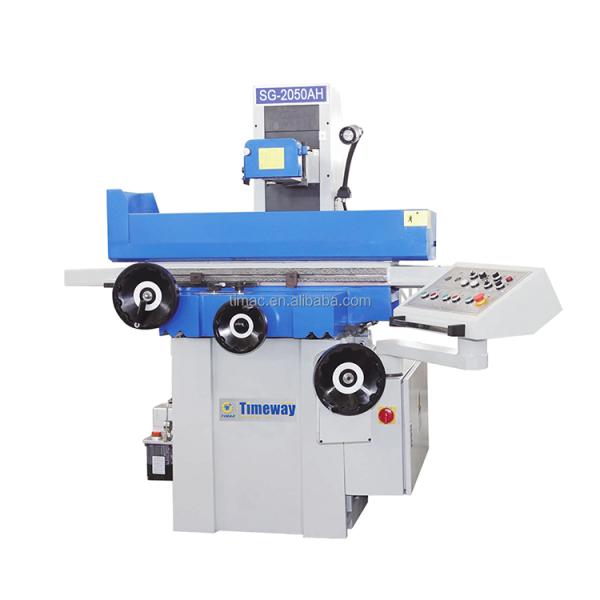

510mm Table Travel CNC Grinder SG-2050CNC Saddle Moving Type Surface Grinding Machine
* SG series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000.
* SG-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.
* SG-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.
* SG-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
* Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by manual (AH series), AC motor (AHR series), or AC servo motor (AHD series).
Specification
Specification
Unit
SG-2050AH
SG-2050AHR
SG-2050AHD
SG-2550AH
SG-2550AHR
SG-2550AHD
Table size
mm
200x508
254x508
Electro magnetic chuck size
mm
200x460
250x500
Distance from spindle to table
mm
450
450
Table cross travel
mm
240
275
Table longitudinal travel
mm
560
560
Loading capacity (include chuck)
kg
180
180
Longitudinal feed speed
m/min
5-25
5-25
Table cross intermittent feed rate
mm/str
0.1-8
0.1-8
Table cross rapid feed speed
mm/min
990
990
Table cross feed of handwheel
mm/gra
0.02
0.02
Wheelhead vertical intermittent feed rate
mm/str
AH: -;
AHR: -;
AHD: 0.005-0.5;
AH: -;
AHR: -;
AHD: 0.005-0.5;
Wheelhead vertical rapid feed speed
mm/min
AH: -;
AHR: 650;
AHD: 480;
AH: -;
AHR: 650;
AHD: 480;
Wheelhead vertical feed of handwheel
mm/gra
0.005
0.005
Spindle speed (50/60HZ)
rpm
2850/3450
2850/3450
Grinding wheel size
mm
200x20x31.75
200x20x31.75
Main motor power
kw
2.2
2.2
Machine dimensions (LxWxH)
cm
230x160x168
230x160x168
Package dimensions (LxWxH)
cm
200x210x215
200x210x215
Machine weight
kg
1650
1800

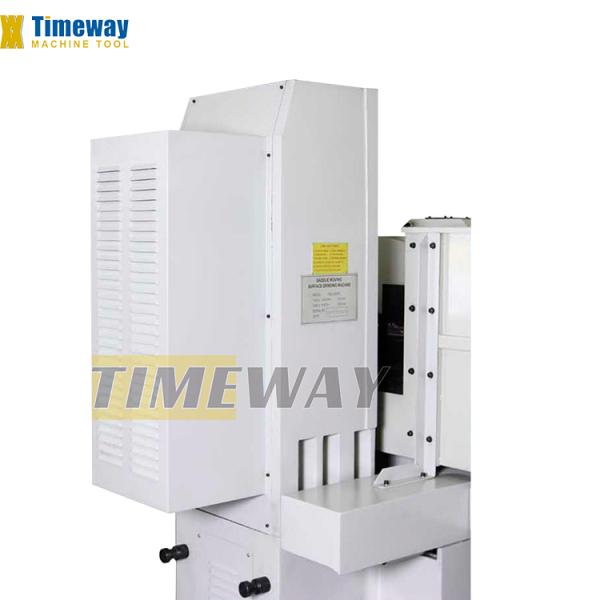

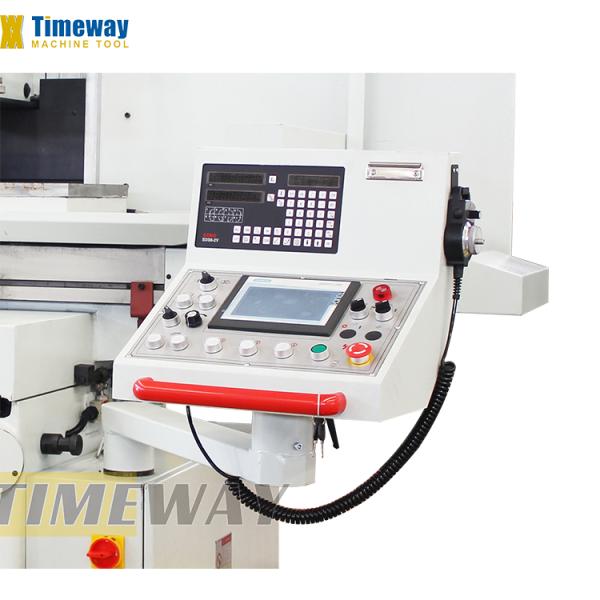

Detailed Images
510mm Table Travel CNC Grinder SG-2050CNC Saddle Moving Type Surface Grinding Machine
510mm Table Travel CNC Grinder SG-2050CNC Saddle Moving Type Surface Grinding Machine
Company Profile
510mm Table Travel CNC Grinder SG-2050CNC Saddle Moving Type Surface Grinding Machine
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
510mm Table Travel CNC Grinder SG-2050CNC Saddle Moving Type Surface Grinding Machine
FAQ
1. who are we?
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine

4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
