GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
Specifications
Type :
Universal
CNC or Not :
CNC
Condition :
New
Wheel Size(mm) :
400*50*203
Year :
2022
Place of Origin :
Henan, China
Brand Name :
Timeway
Dimension(L*W*H) :
760x740x730
Weight (KG) :
2500
Power (kW) :
10.825
Warranty :
1 Year
Key Selling Points :
Multiplication
Showroom Location :
India, Russia
Applicable Industries :
Manufacturing Plant, Home Use, Construction works , Energy & Mining, Retail, Machinery Repair Shops, Building Material Shops
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Engine, Gear, Gearbox
Dia. to be ground :
8~200mm
Max. length to be ground :
500mm
Center height :
135mm
Distance between centers :
550mm
Headstock center :
MT4
Tailstock center :
MT4
Max. workpiece weight to be ground :
50kg
Wheel size :
400x50x203mm
Wheel peripheral speed :
38 (hydrodynamic-hydrostatic 45m/s)
Keywords :
cylindrical grinder machine
Price :
$22,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

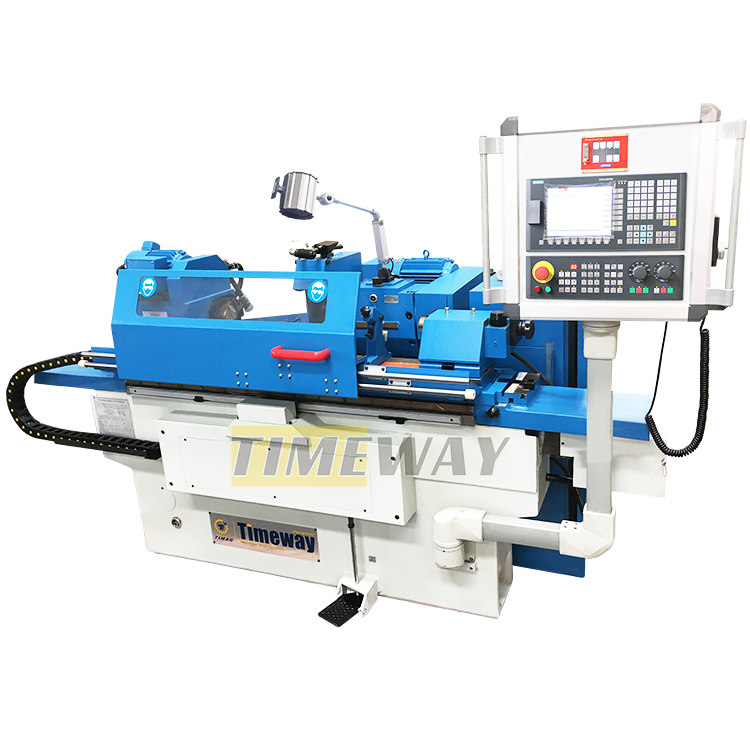

GK-200H Universal Cylindrical Grinder
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
Specification
Specifications
Unit
GK-200Hx500
GK-200Hx800
Dia. to be ground
mm
8~200
8~200
Max. length to be ground
mm
500
800
Center height
mm
135
135
Distance between centers
mm
550
850
Headstock center
-
MT4
MT4
Tailstock center
-
MT4
MT4
Max. workpiece weight to be ground
kg
50
50
Wheel size
mm
Ф400x50xФ203
Ф400x50xФ203
Wheel peripheral speed
m/s
38 (hydrodynamic-hydrostatic 45m/s)
38 (hydrodynamic-hydrostatic 45m/s)
Wheel spindle rotation speed
rpm
2130
2130
Min. pulse amount in X-axis
mm
0.001
0.001
Min. pulse amount in Z-axis
mm
0.001
0.001
Total motor power
kw
10.825
10.825
Longitudinal servo motor
kw
1.6 (6N.m)
1.6 (6N.m)
Transverse servo motor
kw
1.6 (6N.m)
1.6 (6N.m)
Roundness
um
1.5
1.5
Surface roughness
um
Ra0.32
Ra0.32
Unifomity of dia.in longitudinal section
um
5
5
Accessories

Standard accessories:

Grinding wheel
Grinding wheel flange
Three jaw chuck (UG-200H)
Driving dog
Arbor for internal grinding UG-200H)
Grinding wheel dresser
Wheel balancing arbor
Open type steady rest
Dead centers
Frequency inverter
Coolant system
Work lamp
Leveling wedge
Operation manual (English edition)

Optional accessories:

Wheel balancing stand
Radius dresser
Close type center rest
Digital readout
Paper filter
Magnetic separator
Packing & Delivery
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
This is the picture of the packaging in our factory！You can see our package is standardized andcentralized , then they will be shipped to your designated place.
Company Profile
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
This is a picture of clients visiting our company when we hold exhibitions around the world. Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Certifications
GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6. 12 months quality warranty; 7. Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
