200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
Specifications
Grinding Diameter(Outer)(mm) :
200
Grinding Diameter(Inner)(mm) :
100
Grinding Length(mm) :
800
Max. Length of Workpiece (mm) :
850
Max. Weight of Workpiece(kg) :
50
Center Height (mm) :
135
Wheel Size(mm) :
400*50*203
Wheel Speed (rpm) :
2130
Table Travel (X) (mm) :
650
Table Travel (Y) (mm) :
500
Roundness(mm) :
0.0015
Cylindricity (mm) :
0.0015
Surface Roughness(μm) :
0.32
Year :
2020
Place of Origin :
Henan, China
Brand Name :
Timeway
Voltage :
380v
Dimension(L*W*H) :
2600*2000*2220
Weight (KG) :
2500
Power (kW) :
10.825
Key Selling Points :
Energy saving
Warranty :
1 Year
Showroom Location :
India, Mexico, France, Australia, Japan, Spain, Russia, Turkey, Italy
Applicable Industries :
Manufacturing Plant
Marketing Type :
New Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Bearing, Engine, PLC
Condition :
New
CNC or Not :
CNC
Dia. ground (O.D) :
8-200mm
Dia. ground (I.D) :
13-100
Distance between centers :
550/850mm
Roughness :
0.32um
Product name :
CNC Cylindrical Grinder Machine
Type :
Cylindrical Grinding Machine
Keyword :
Gringding
Model :
GK-200H/UGK-200H
COLOR :
Customizable
Precision :
High Precision
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$32,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description
Cylindrical Grinding Machine
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter

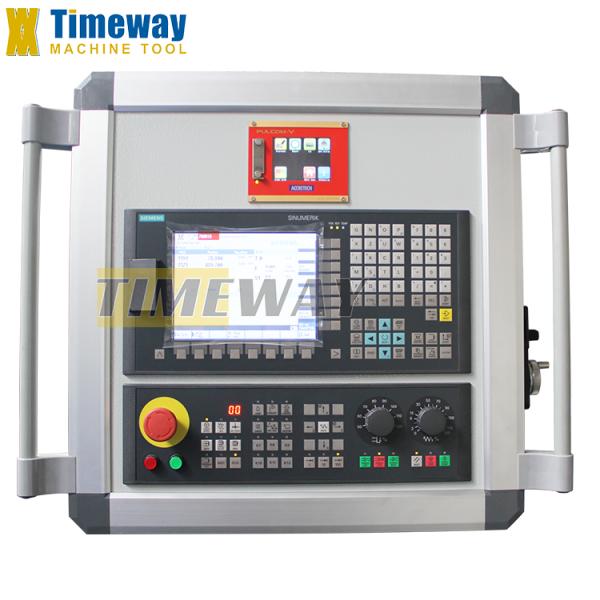

*The machine tool standard adopts German SIEMENS CNC system, and the executive system is driven by the CNC servo driver and servo motor.
*Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servo motors driven the ball screw transmission.
*By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the different workpiece is realized.
*This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinal grinding and cutting into grinding sequence and grinding process parameters.
*CNC control system with the function of wheel dressing and compensation automatically.
Technical Parameter
SPECIFICATION
UNIT
GK-200H
UGK-200H
Grinding Diameter(Outer)
mm
8-200
8-200
Grinding Diameter(Inner)
mm
-
13-100
Grinding Length
mm
500/800
500/800
Max. Length of Workpiece
mm
550/850
550/850
Loading Capacity
kg
50
50
Center Height
mm
135
135
Grinding Wheel Size
mm
400*50*203
400*50*203
Grinding Spindle Speed
rpm
2130
2130
X-axis min. feed unit
mm
0.001
0.001
Z-axis min. feed unit
mm
0.001
0.001
Roundness
um
1.5
1.5
Roughness
um
0.32
0.32

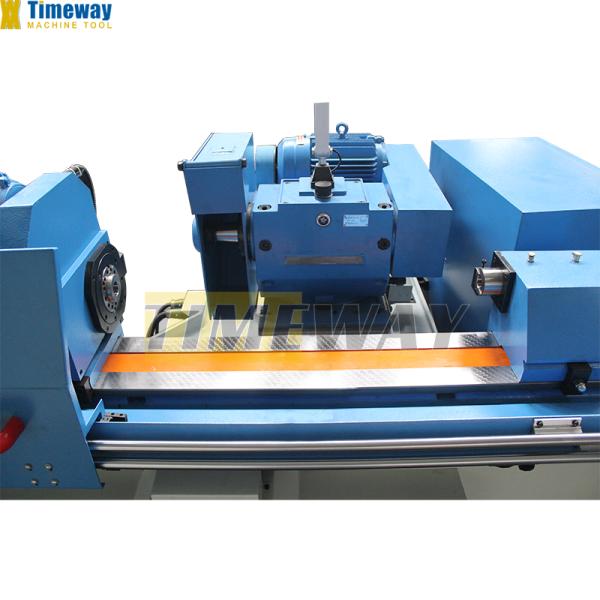

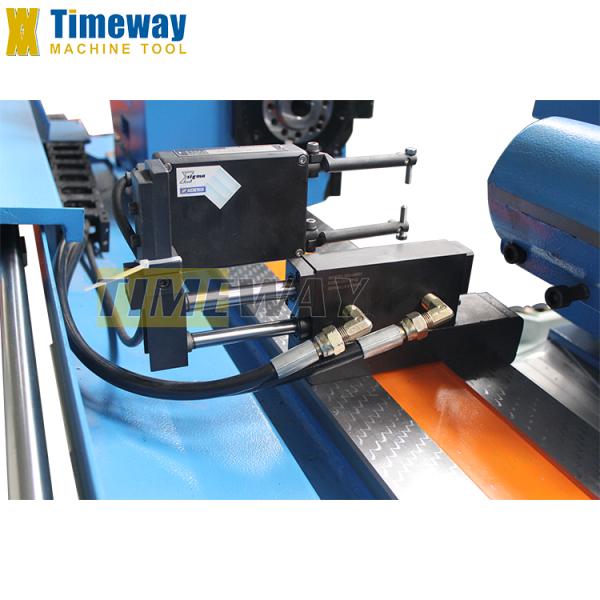

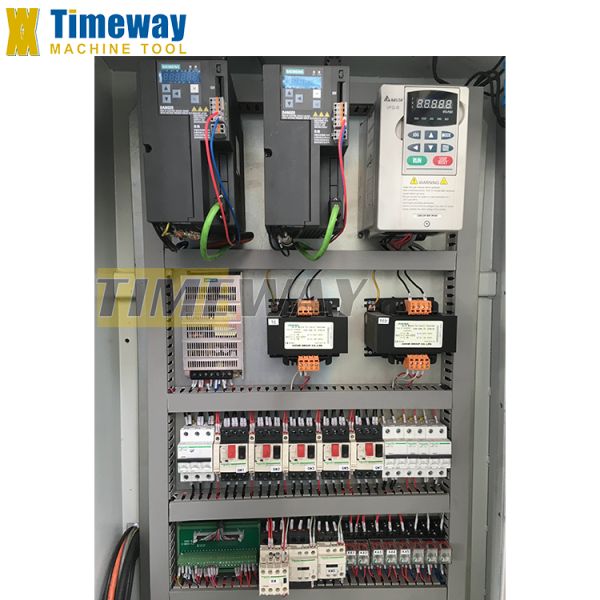

Detailed Images
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
Company Profile
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
Packaging & Shipping
200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
