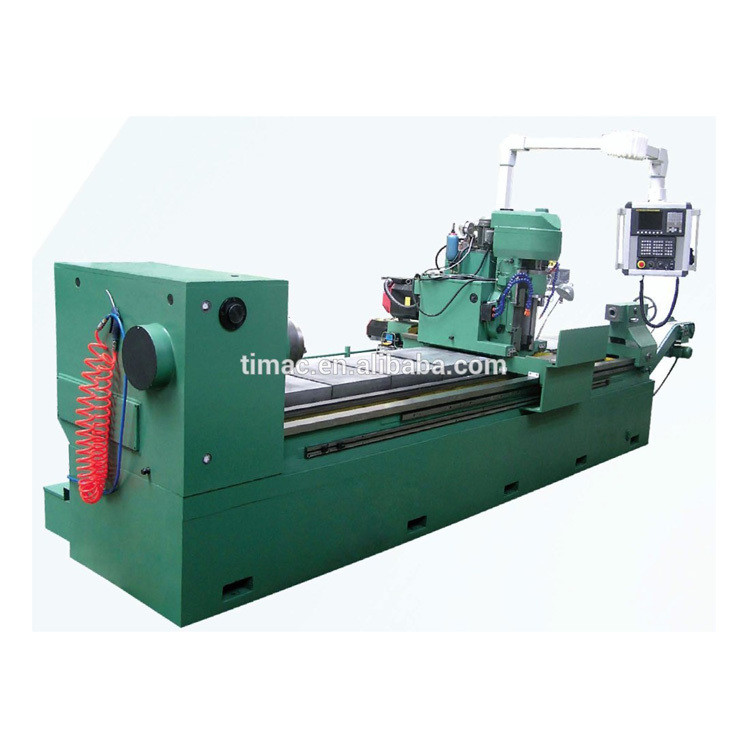

Upgrade Your Manufacturing with Timeway's CNC Spline Shaft Milling Gear Hobbing Machine
Upgrade Your Manufacturing with Timeway's CNC Spline Shaft Milling Gear Hobbing Machine
Specifications
Place of Origin :
China
CNC or Not :
CNC
Condition :
New
Type :
Gear Hobbing Machine
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Motor
Brand Name :
Tiamc, Timeway
Voltage :
as require
Dimension(L*W*H) :
6600~8800x2200x2220mm
Warranty :
1 Year
Key Selling Points :
Automatic
Weight (KG) :
15000
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Construction works
Showroom Location :
Viet Nam, Peru, Thailand, Argentina, Romania, Malaysia
After-sales Service Provided :
Engineers available to service machinery overseas
CNC Gear hobbing machine :
dia. 300x3000-6000mm
CNC spline shaft milling machine :
dia. 400x3000-6000mm
Weight :
16000-23500kg
Certification :
ISO9001:2008, CE, TUV
Warranty period :
1 year
Packaging Details :
Wooden case (fumigated)
Port :
China port
Supply Ability :
100 Set/Sets per Year
Price :
$125,900.00/sets 1-1 sets
MOQ :
1 set
Description

Product Description

Features:

1. The machine is used for cutting straight-tooth and helicaitooth spline shaft,and straight-tooth,helical-tooth cylindrical geal workpiece with all kinds of tooth shape by using hobbing method.It can also hob straight-tooth and helical-tooth connecting shaft gear,and cutting taper spline,cone bottom spline as well as stepped gear.

2. The machine controls index by using electrical gear cabinet,the action of adjustment drive and shift of hob is finished automatically by CNC. As well as the cutting efficiency is rather high, the cry cutting can be come ture in the condition of wind colling.

3. The machine can finish automatically single index and it can single index and it can single cut by using palte cutter.

4. It is suitable for cutting all kinds of teeth shape spline shaft and gear in machine building industries.

Specification HMK6030 HMK6040A
Max.diameter to be machined Φ300mm Φ400mm
Max.module to be machined 10mm 12mm
Max.length of the workpiece 3000~6000mm 3000~6000mm
Max.length of the machined 2500~5500mm 2500~5500mm
Range of teeth to be machined Arbitraty Arbitraty
Center high of machine 470mm 470mm
Max.size of milling cutter to be mounted Φ180x230mm Φ200x240mm
Max.travel of tailstock sleeve 70mm 70mm
Adjusting angle of milling head ±45(degree) ±45(degree)
No.of axes to be countrolled 4~6 axis 4~6 axis
No.of axes to be followed 4 axis 4 axis
Gears to be machined straight teeth/helical teeth straight teeth/helical teeth
Oveall dimensions (LxWxH) 6600~8800xx2200x2220mm 6600~8800x2200x2220mm
Weight of the machine 16000~23000kg 16500~23500kg

Why Choose Us
Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
