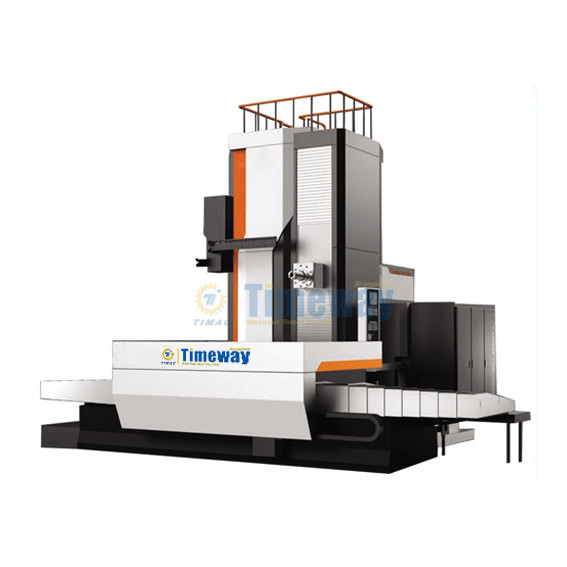

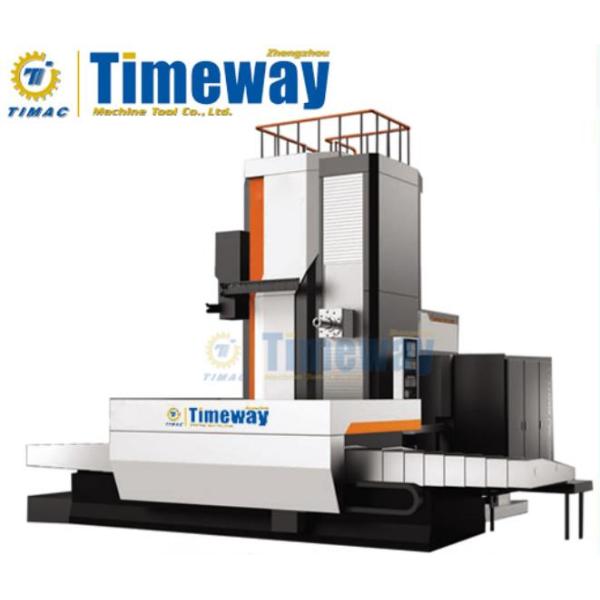

Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Specifications
Condition :
New
Spindle Taper :
BT50
No. of Spindles :
4
Type :
Horizontal
Dimension(L*W*H) :
5900*6850*5250mm
Weight (T) :
35 T
Table Size (mm) :
1400x1600
CNC Control System :
GSK, FANUC, MITSUBISHI, Siemens
Number of Axes :
4
Table Travel (X) (mm) :
2-6000
Table Travel (Y) (mm) :
2-6000
Table Travel (Z) (mm) :
2-6000
Positioning Accuracy (mm) :
±4
Repeatability (X/Y/Z) (mm) :
2
Range of Spindle Speed(r.p.m) :
0 - 3000 r.p.m
Spindle Motor Power(kW) :
18/22.5
Max. Table Load(kg) :
8000 kg
Feed Speed(mm/min) :
0 - 3000 mm/min
Min. Time of Tool Change(s) :
6
Tool Magazine Capacity :
Other, 16, 20, 12
Key Selling Points :
High-accuracy
Warranty :
One Year
Place of Origin :
China
Brand Name :
TIMAC
Voltage :
According to customers' need
Marketing Type :
New Product 2023
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC system :
FANUC or SIEMENS or others
Control type :
Automatic
Accuracy :
High precision
Table size :
1400*1600mm
Max. capacity :
8t
Color :
According to customers' requirement
Boring spindle diameter :
110mm
Weight :
35000kg
Power :
18/22.5kw
Applicable Industries :
Manufacturing Plant, Other, Advertising Company
Showroom Location :
Egypt, Turkey, Viet Nam, Brazil, Indonesia, Spain, Kenya, Colombia
Core Components :
Motor
Rapid Feed Speed(m/min) :
2-3000
Packaging Details :
Iron Frame or according practical situation
Port :
China port
Supply Ability :
100 Set/Sets per Year
Price :
$70,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Specifications
Units
PBM-1120
PBM-1120E
PBM-1330
PBM-1330E
Diameter
mm
110
110
130
130
Tapered bore
ISO 7:24 BT50
ISO 7:24 BT50
ISO 7:24 BT50
ISO 7:24 BT50
Spindle motor
kw
18.5/22.5
18.5/22.5
22/30
22/30
Maximal torque
Nm
2000
2000
3000
3000
Maximal speed
rpm
3000
1500
2500
1200
Working table
m
1.4*1.6
1.4*1.6
1.8*2.0
1.8*2.0
Positioning precision
″
±4
±5
±6
±6
Repeated positioning precision
″
±2
±3
±3.5
±4
Load bearing
kg
8000
5000
25000
12000
Travel of X/Y/Z axis
mm
2000/1600/1200
2000/1600/1200
3000/2000/1600
3000/2000/1600
Travel of W-axis
mm
600
600
800
800
Working table transverse(X)
mm/min
2-6000
2-6000
2-6000
2-6000
Gear box vertical(Y)
mm/min
2-6000
2-6000
2-6000
2-6000
Column longitudinal(Z)
mm/min
2-6000
2-6000
2-6000
2-6000
Boring spindle axial(W)
mm/min
2-2000
2-2000
2-2000
2-2000
Working table transverse(X)
mm/min
10000
10000
10000
10000
Gear box vertical(Y)
mm/min
10000
10000
10000
10000
Column longitudinal(Z)
mm/min
10000
10000
10000
10000
Boring spindle axial(W)
mm/min
3000
3000
3000
3000
Total weight of machine tool
kg
35000
33500
55000
52000
Floor area of machine tool
mm
5900*6850*5200
5900*6850*5200
7900*7950*5350
7900*7950*5350
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
GSK 25iMC CNC system
Manual rotary table with four positions indexing
Protection covers for guideways
Manual pulse (MPG)
Work lamp
Pilot lamp
USB I/O interface
Hydraulic system
Auto. Cooling system
Auto.lubricating system
Air conditioner for electric cabinet
General tools
Operation manual
Flat right-angle milling head
Universal milling head
Right-angle milling head
Extended milling head
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Why Choose Us
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
