High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
Specifications
Type :
VERTICAL
Range of Spindle Speed(r.p.m) :
0 - 5000
Number of Axes :
3
No. of Spindles :
Single
Machining Capacity :
Medium Duty
Spindle Taper :
ISO40
Table Travel (X) (mm) :
800
Table Travel (Y) (mm) :
360
Table Travel (Z) (mm) :
103
Positioning Accuracy (mm) :
0.003
Repeatability (X/Y/Z) (mm) :
0.001
Place of Origin :
Shenzhen
Brand Name :
TIMEWAY
Model Number :
KTM300
Voltage :
220V 380V
Dimension(L*W*H) :
200x200x225
CNC Control System :
FANUC
Key Selling Points :
High-accuracy
Weight (KG) :
1800
Spindle Motor Power(kW) :
3.7
Warranty :
1 Year
Max. Table Load(kg) :
350 kg
Marketing Type :
Hot Product 2022
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Table size :
305x1370/305x1500 mm
T-slot (No./width) :
3/16 mm
Loading capacity :
350 kg
Longitudinal travel (X) :
800/900 mm
Cross travel (Y) :
360 mm
Spindle quill travel (Z) :
103 mm
X/Y/Z-axis rapid feed speed :
5000 mm/min
Ram travel :
500 mm
CNC controller :
FANUC or SIEMENS or GSK
Gross weight :
1800 kg
Condition :
New
Applicable Industries :
Machinery Repair Shops, Construction works
Showroom Location :
Italy, France, Saudi Arabia, Indonesia, Pakistan, India, Kenya
Core Components :
Motor, Engine
Table Travel (mm) :
305X1370
Year :
NEW
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$7,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
1. Complete with GSK CNC system, FANUC or SIEMENS for choice

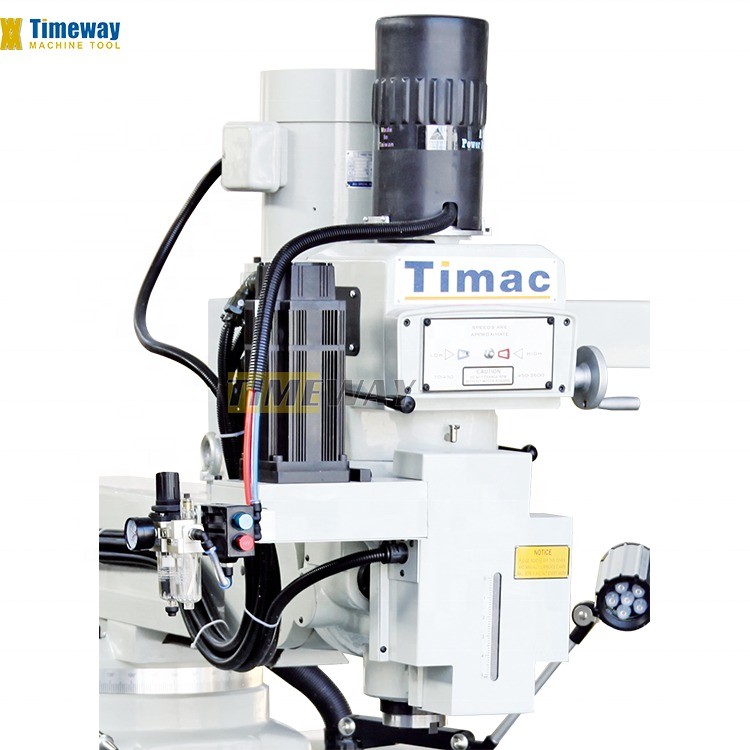

2. Mill head can be turned, tilted and swivelled making it extremely versatile.
3. Complete with stepless mill head, Pneumatic tool clamping comes optional.
4. Feed and rapid feed in X, Y and Z-axis by driven servo motor.
5. Central lubrication system comes standard.
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
Specifications
Unit
KTM300
Table size
mm
305x1370/305x1500
T slots
mm
3/16
Loading capacity
kg
350
Longitudinal travel (X)
mm
800/900
Cross travel (Y)
mm
360
Spindle quill travel (Z)
mm
103
X/Y/Z-axis rapid feed speed
mm/min
5000
X/Y/Z-axis servo motor power
kw
1
Knee vertical travel
mm
380
Ram travel
mm
500
Distance from spindle to table
mm
0-380
Spindle speed
rpm
16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200)
Spindle taper
-
ISO40
Main motor power
kw
3.7
Mill head swivel angle
°
±90°
Mill head tilting angle
°
±45°
CNC controller
-
FANUC or SIEMENS or GSK
Machine weight
kg
1800
Package size (LxWxH)
cm
200x200x225
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
Why Choose Us
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
