Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Specifications
Type :
VERTICAL
Range of Spindle Speed(r.p.m) :
0 - 5000
Number of Axes :
3
No. of Spindles :
Single
Machining Capacity :
Medium Duty
Spindle Taper :
ISO40
Table Travel (X) (mm) :
750
Table Travel (Y) (mm) :
400
Table Travel (Z) (mm) :
103
Positioning Accuracy (mm) :
0.003
Repeatability (X/Y/Z) (mm) :
±0.005/300
Place of Origin :
SHN
Brand Name :
TIMEWAY
Model Number :
KTM250
Voltage :
optional
Dimension(L*W*H) :
190x200x223
CNC Control System :
GSK
Key Selling Points :
High-accuracy
Weight (KG) :
1400
Spindle Motor Power(kW) :
2.2
Warranty :
1 Year
Max. Table Load(kg) :
280 kg
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Table size :
254x1270 mm
T-slot (No./width) :
3/16 mm
Loading capacity :
280 kg
Longitudinal travel (X) :
750 mm
Cross travel (Y) :
400 mm
Spindle quill travel (Z) :
103 mm
X/Y/Z-axis rapid feed speed :
5000 mm/min
X/Y/Z-axis servo motor power :
1 kw
Ram travel :
470 mm
Gross weight :
1400 kg
Condition :
New
Applicable Industries :
Machinery Repair Shops, Construction works
Showroom Location :
Turkey, United Kingdom, Viet Nam, Pakistan, Morocco, Colombia, Kazakhstan
Core Components :
Motor, Engine
Table Travel (mm) :
254x1270
Year :
new
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$7,500.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

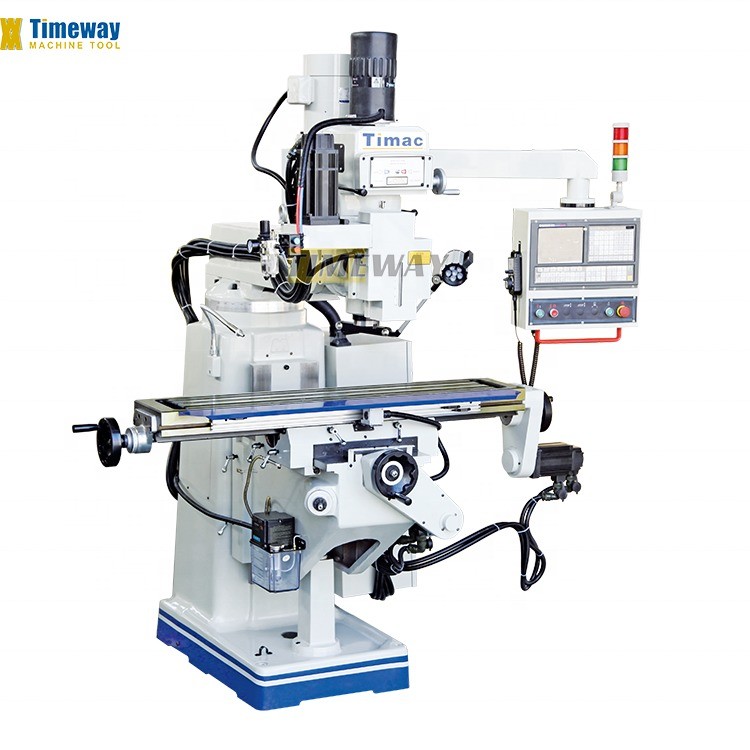

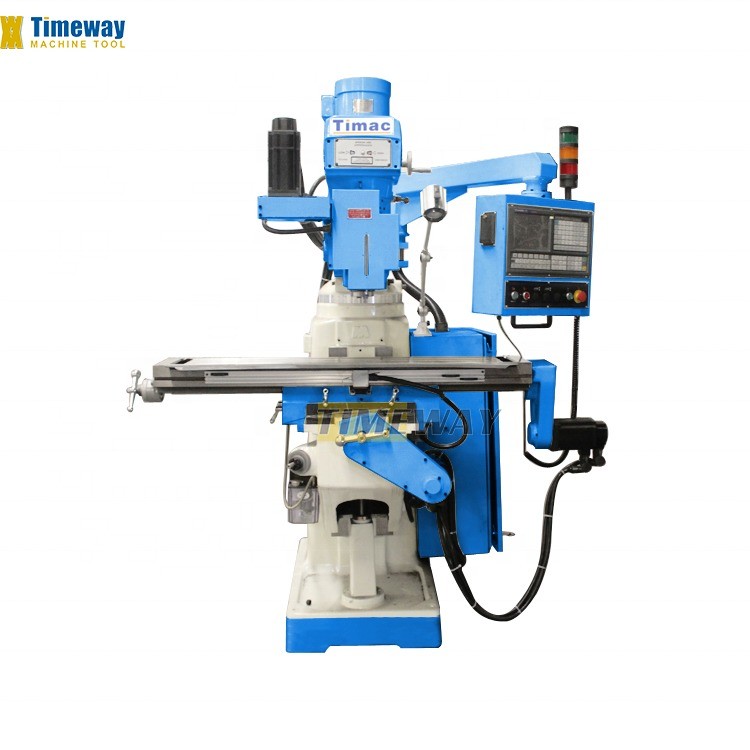

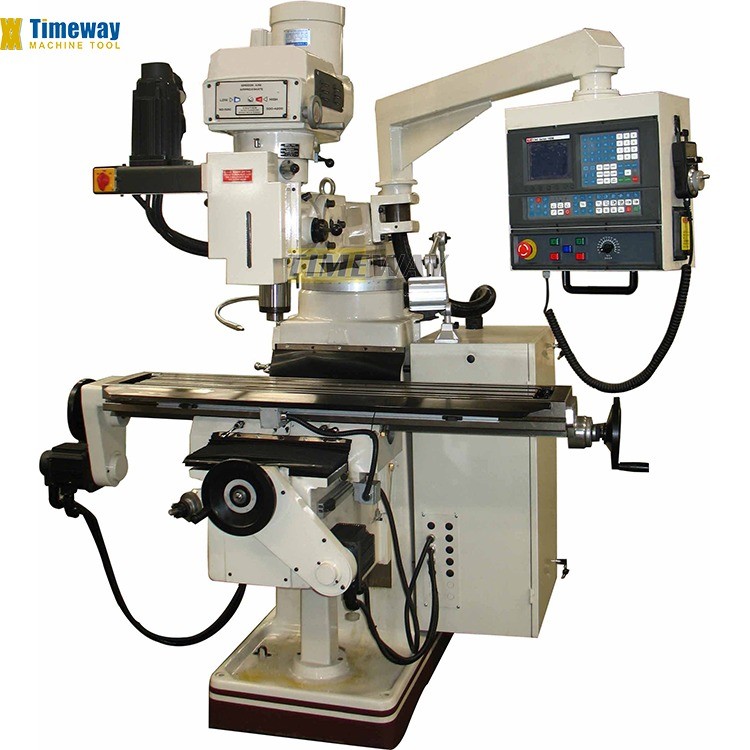

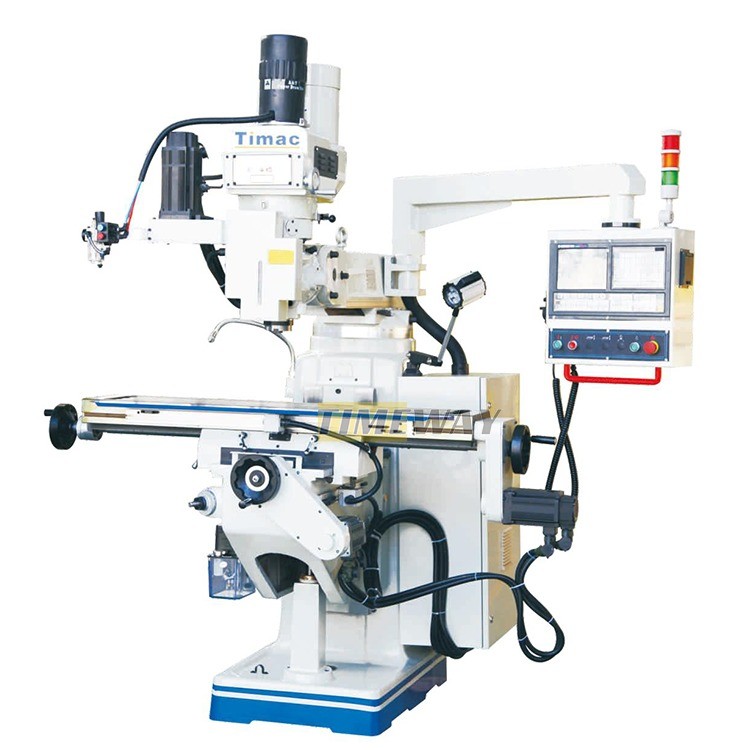

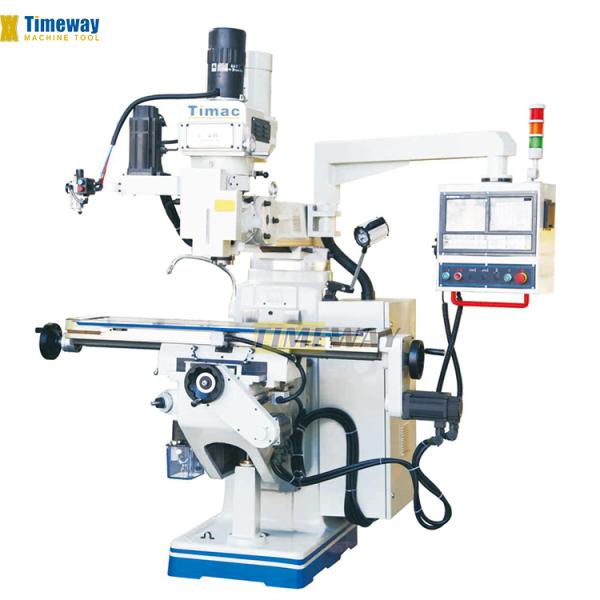

Turret Milling Machine
1. Complete with GSK CNC system, FANUC or SIEMENS for choice

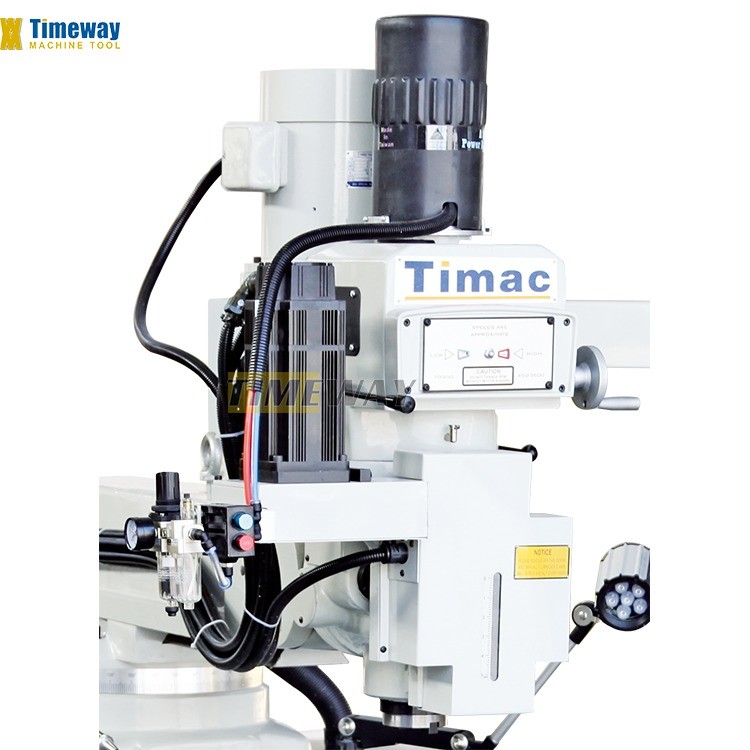

2. Mill head can be turned, tilted and swivelled making it extremely versatile.
3. Complete with stepless mill head, Pneumatic tool clamping comes optional.

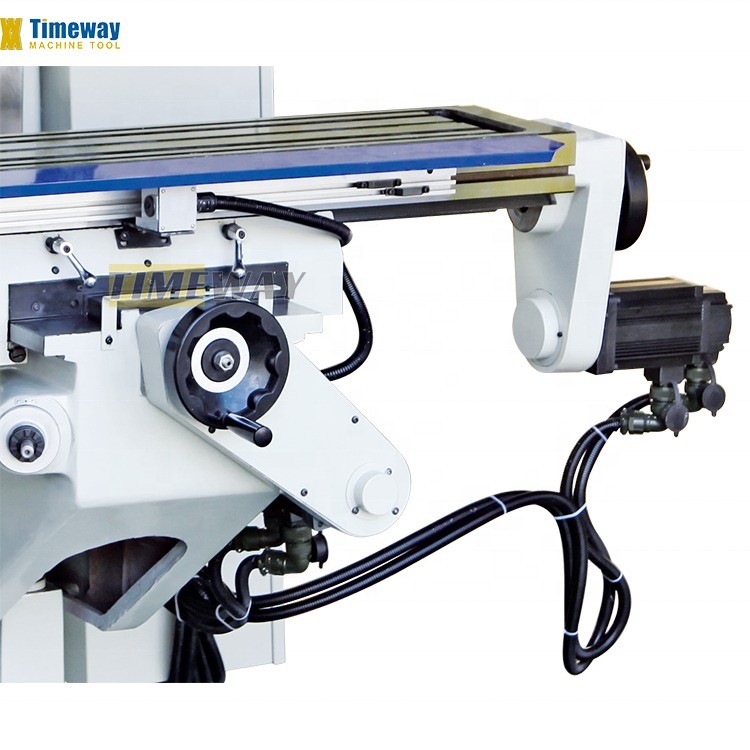

4. Feed and rapid feed in X, Y and Z-axis by driven servo motor.
5. Central lubrication system comes standard.

Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Specifications
Unit
KTM250
Table size
mm
254x1270/254x1370
T slots
mm
3/16
Loading capacity
kg
280
Longitudinal travel (X)
mm
750/850
Cross travel (Y)
mm
400
Spindle quill travel (Z)
mm
103
Knee vertical travel
mm
400
Ram travel
mm
470
Machine weight
kg
1400
Package size (LxWxH)
cm
190x200x223
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Positive Comments From Customers
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Company Introduction
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Factory Display：
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Text Introduction：
Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
