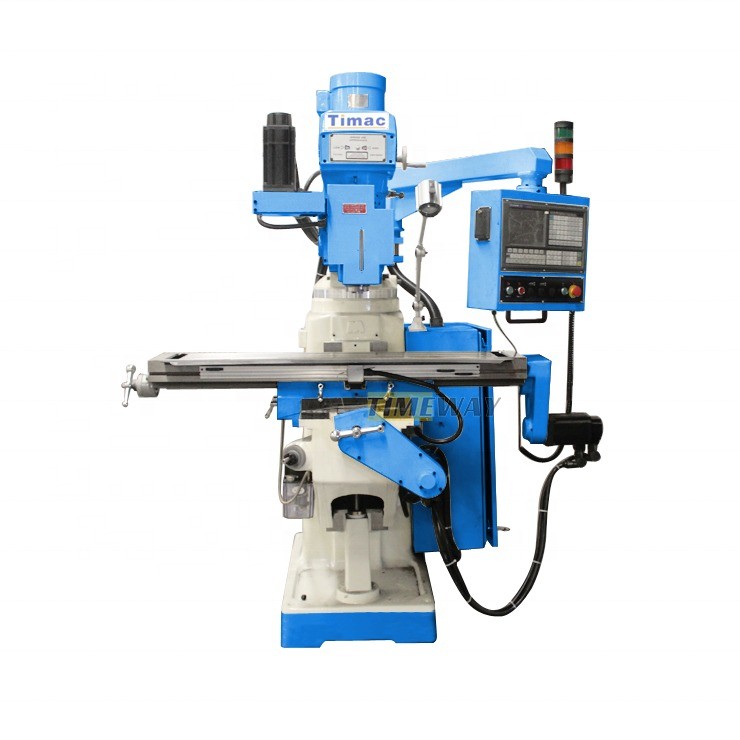

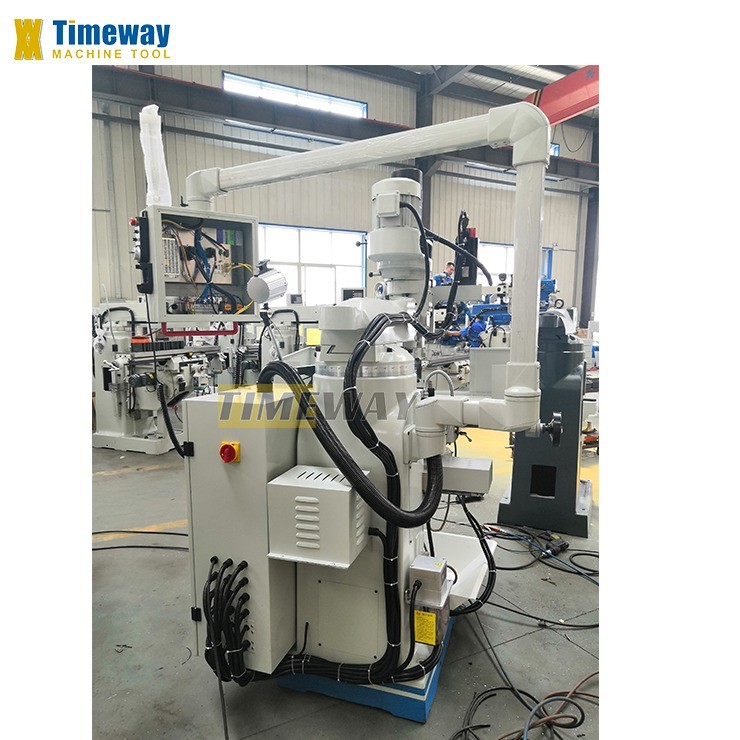

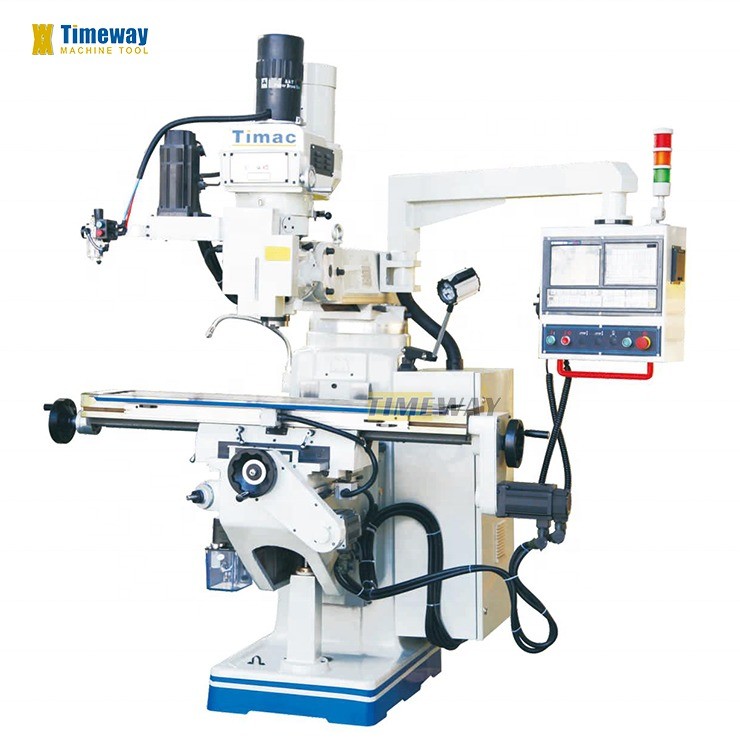

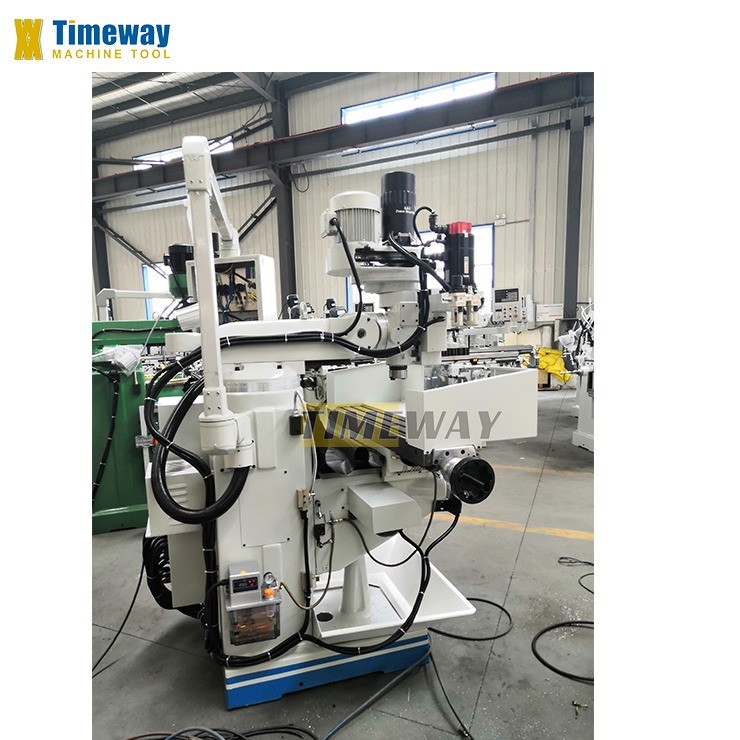

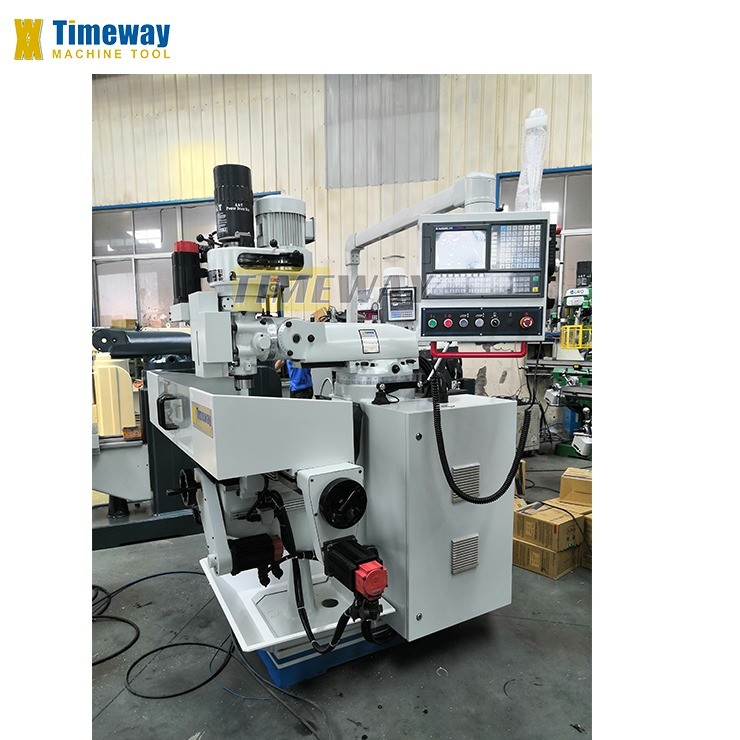

Energy Mining Ram Travel 315 Vertical Turret Milling Universal Machine with CNC System
Energy Mining Ram Travel 315 Vertical Turret Milling Universal Machine with CNC System
Energy Mining Ram Travel 315 Vertical Turret Milling Universal Machine with CNC System
Energy Mining Ram Travel 315 Vertical Turret Milling Universal Machine with CNC System
Energy Mining Ram Travel 315 Vertical Turret Milling Universal Machine with CNC System
Energy Mining Ram Travel 315 Vertical Turret Milling Universal Machine with CNC System
Energy Mining Ram Travel 315 Vertical Turret Milling Universal Machine with CNC System
Energy Mining Ram Travel 315 Vertical Turret Milling Universal Machine with CNC System
Energy Mining Ram Travel 315 Vertical Turret Milling Universal Machine with CNC System
Energy Mining Ram Travel 315 Vertical Turret Milling Universal Machine with CNC System
Specifications
Table Travel (X) (mm) :
820/920
Machining Capacity :
Medium Duty
Table Travel (Y) (mm) :
420
Table Travel (Z) (mm) :
500
Spindle Taper :
ISO40
Range of Spindle Speed(r.p.m) :
40 - 1280 r.p.m
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
KTM230/KTM250/KTM300/KTM50C
Type :
VERTICAL
Voltage :
380V 50HZ 3PH or negotiable
Weight (KG) :
1680
Warranty :
1 year under normal operation
Key Selling Points :
Multifunctional
Marketing Type :
Other
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Table size (WxL) :
230x1067
T-slot (No./width) :
3/16
Loading capacity :
200
Longitudinal travel (X) :
550/740
Cross travel (Y) :
300
Spindle quill travel(Z) :
103
X/Y/Z-axis rapid feed speed :
5000
Distance from spindle to table :
0-350
Knee vertical travel :
350
Ram travel :
315
Number of Axes :
3
Condition :
New
Applicable Industries :
Manufacturing Plant, Energy & Mining
Showroom Location :
Viet Nam, Russia
Core Components :
Motor, Other
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$15,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
Energy Mining Ram Travel 315 Vertical Turret Milling Universal Machine with CNC System
Energy Mining Ram Travel 315 Vertical Turret Milling Universal Machine with CNC System
Energy Mining Ram Travel 315 Vertical Turret Milling Universal Machine with CNC System
SPECIFICATION
UNIT
KTM230
KTM250
KTM250C
KTM300
Table size
mm
230x1067/230x1246
254x1270/254x1370
254x1270/254x1370
305x1370/305x1500
T-slot (No./width)
3/16
3/16
3/16
3/16
Loading capacity
kg
200
280
280
350
Longitudinal travel (X)
mm
550/740
750/850
750/850
800/900
Cross travel (Y)
mm
300
400
400
360
Spindle quill travel(Z)
mm
103
103
103
103
X/Y/Z-axis rapid feed speed
mm/min
5000
5000
5000
5000
X/Y/Z-axis servo motor power
kw
1
1
1
Knee vertical travel
mm
350
400
400
380
Ram travel
mm
315
470
470
500
Distance from spindle to table
mm
0-350
0-400
0-400
0-380
Spindle speed
rpm
16steps, 50HZ:65-4500/60HZ:80-5440(Optional:Variable 60-4200/KTM300:60-3600)
16steps, 50HZ:65-4500/60HZ:80-5440(Optional:Variable 60-4200/KTM300:60-3600)
16steps, 50HZ:65-4500/60HZ:80-5440(Optional:Variable 60-4200/KTM300:60-3600)
16steps, 50HZ:65-4500/60HZ:80-5440(Optional:Variable 60-4200/KTM300:60-3600)
Spindle taper
R8 (Optional: ISO40)
R8(Optional:ISO40)
ISO40
ISO40
Main motor power
kw
2.2
2.2
3.7
3.7
Mill head swivel angle
±90°
±90°
±90°
±90°
Mill head tilting angle
±45°
±45°
±45°
±45°
CNC controller
FANUC or SIEMENS or GSK
FANUC or SIEMENS or GSK
FANUC or SIEMENS or GSK
FANUC or SIEMENS or GSK
Package size (LxWxH)
cm
165 x 190 x 200
190x200x223
190x200x223
200x200x225
Gross weight
kg
1100
1400
1600
1800
STANDARD CONFIGURATION:

OPTIONS & EXTRA COST:

1. 3HP/16steps milling head
2. 5HP/12steps H spindle
3. Draw bar of V spindle & H spindle
4. Working lamp
5. Tools shank of H spindle
6. Cooling pump
7. Handle lubricant pump
8. Z-axis elevating motor(only for TM300,TM300A)
9. Operating tools and tool box
10. Operation manual
1. 5HP/16steps milling head
2. Variable speed milling head
3. Rotating table (±35º) (TM250A, TM300A)

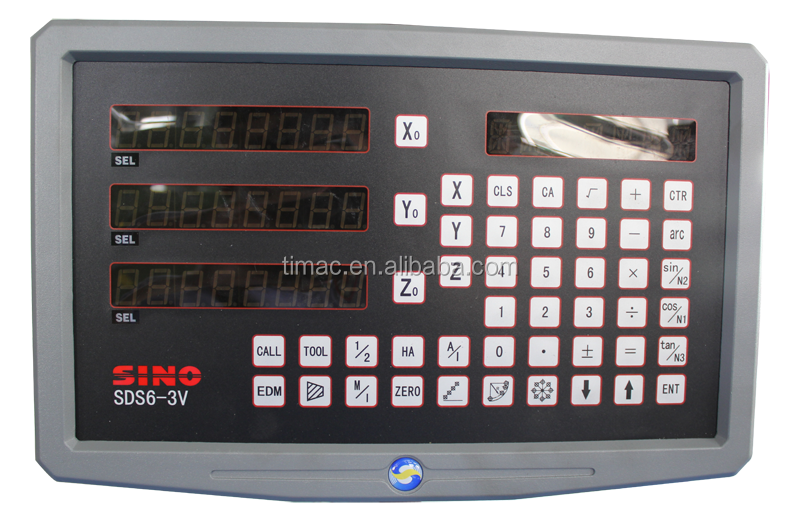

4. X/Y/Z-axis DRO
5. Alloy luxury hung up control panel
6. X-axis power feed
7. Y-axis power feed
8. X-axis gearbox power feed
9. Y-axis gearbox power feed
10. X/Y-axis ball-screw
11. Z-axis elevating motor (only for TM250,TM250A)
12. R8 collets
13. NT40 collets
14. 6” machine vise
15. 52pc clamping kits
16. Air draw bar
17. Electric oil pump
