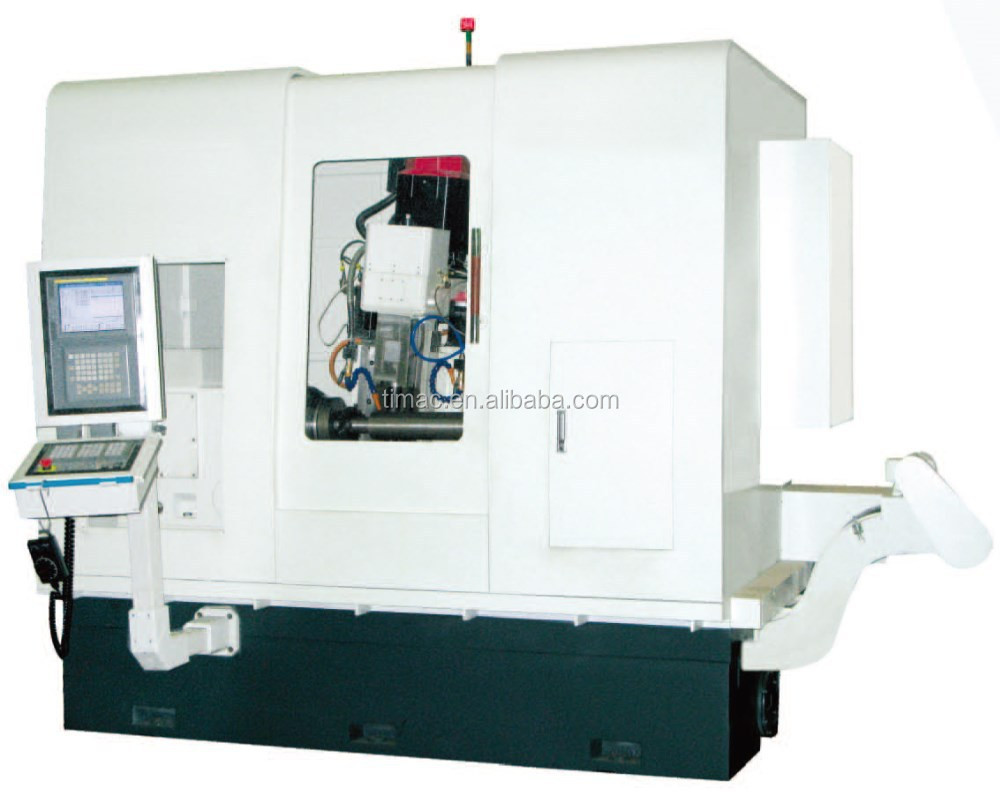

370mm Center High CNC Spline Shaft Milling Machine Horizontal Gear Hobbing for Milling
370mm Center High CNC Spline Shaft Milling Machine Horizontal Gear Hobbing for Milling
Specifications
Place of Origin :
China
CNC or Not :
CNC
Condition :
New
Type :
Gear Hobbing Machine
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Brand Name :
Tiamc, Timeway
Voltage :
as require
Dimension(L*W*H) :
2500~3250x2470x2450mm
Warranty :
1 Year
Key Selling Points :
Competitive Price
Weight (KG) :
9000
Power (kW) :
15
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Energy & Mining
Showroom Location :
Italy, France, Brazil, Peru, India, Mexico
After-sales Service Provided :
Online support
Max.diameter to be machined :
200mm
Max.module to be machined :
5mm
Max.length of the workpiece :
750-1500mm
Max.length of the machined :
650-1350mm
Range of teeth to be machined :
4~200(teeth)
Center high of machine :
370mm
Max.travel of tailstock sleeve :
70mm
Certification :
ISO9001:2008, CE, TUV
Packaging Details :
Wooden case (fumigated)
Port :
China port
Supply Ability :
100 Set/Sets per Year
Price :
$10,000.00/sets 1-2 sets
MOQ :
1 set
Description

Product Description

Features:

1. The machine is used for cutting straight-tooth and helicaitooth spline shaft,and straight-tooth,helical-tooth cylindrical geal workpiece with all kinds of tooth shape by using hobbing method.It can also hob straight-tooth and helical-tooth connecting shaft gear,and cutting taper spline,cone bottom spline as well as stepped gear.

2. The machine controls index by using electrical gear cabinet,the action of adjustment drive and shift of hob is finished automatically by CNC.And the precision is very high,it has wider range of speed of hobbing cutter .The hobbing speed is adjustable from 200r/min to 1200r/min steplessly.The maximum speed of workpiece is 200 rotors,and the cutting efficiency is rather high,as well as the cry cutting can be come ture in the condition of wind colling.

3. The machine can finish automatically single index and it can single index and it can single cut by using palte cutter.

4. Two different specification hobbing cutters can be mounted on the machine at the same time.It can cut different specification spline shaft and gear by installing the workpiece only once.

5. It is suitable for cutting all kinds of teeth shape spline shaft and gear in machine building industries.

Specification HMK6020
Max.diameter to be machined Φ200mm
Max.module to be machined 5mm
Max.length of the workpiece 750~1500mm
Max.length of the machined 650~1350mm
Range of teeth to be machined 4~200(teeth)
Center high of machine 370mm
Max.size of milling cutter to be mounted Φ130x200mm
Max.travel of tailstock sleeve 70mm
Adjusting angle of milling head ±45(degree)
No.of axes to be countrolled 6 axis
No.of axes to be followed 4 axis
Gears to be machined straight teeth/helical teeth
Oveall dimensions (LxWxH) 2500~3250x2470x2450mm
Weight of the machine 9000~12000kg
