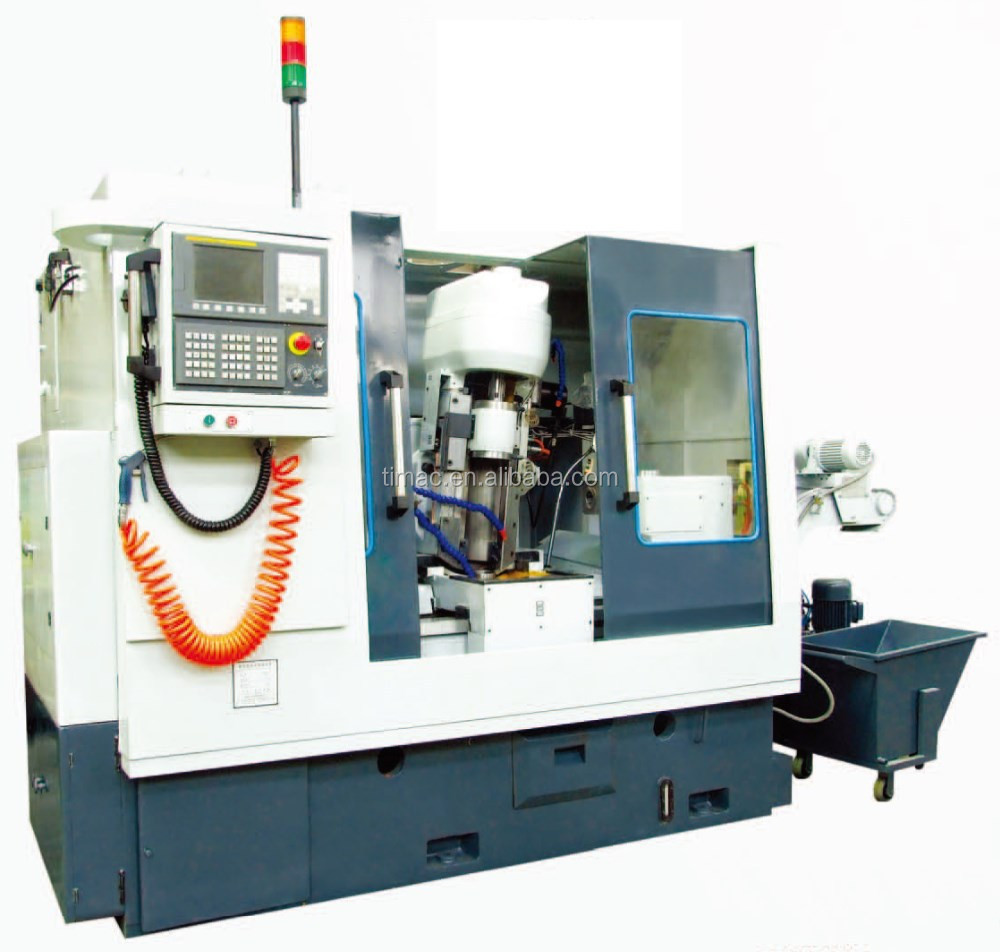

CNC Horizontal Gear Hobbing Machine Spline Shaft Milling Machine for Large Workpieces
CNC Horizontal Gear Hobbing Machine Spline Shaft Milling Machine for Large Workpieces
Specifications
Place of Origin :
China
CNC or Not :
CNC
Condition :
New
Type :
Gear Hobbing Machine
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Engine, Gear
Brand Name :
Timac, Timeway
Voltage :
as require
Dimension(L*W*H) :
2530, 3175x1835x2100mm
Warranty :
1 Year
Key Selling Points :
Automatic
Weight (KG) :
9000
Power (kW) :
15
Applicable Industries :
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining, Advertising Company
Showroom Location :
United States, France, Brazil, Indonesia, UAE, Colombia, Uzbekistan
After-sales Service Provided :
Online support
CNC Horizontal Gear Hobbing Machine :
Dia.125x750mm
CNC Spline Shaft Milling Machine :
Dia. 125x1500mm
Weight :
8500kg, 9000kg
Certification :
ISO9001:2008, CE, TUV
Packaging Details :
Wooden case(fumigated)
Port :
China port
Supply Ability :
100 Set/Sets per Year
Price :
$35,800.00/sets 1-2 sets
MOQ :
1 set
Description

Product Description

Features:

1.The machine is used for cutting straight tooth spline with all kind of tooth shape by using hobbing method.It is also used for cutting straightteeth collecting shaft gears as well as cutting taper splines and stepped gears.

2. All machanical system and parts with high rigidity compact constructions and fine protection functions,the hob speed is adjusttable from 60 to 600 r/min steplessly,but it can reach from 200 to 600r/min,the maximum speed of workpiece is 100 rotor, and the cutting fficiency is rather high.

3. In addition,the dry cutting can be come true in the condition of wind cooling.

Specification HMK6012 HMK6012/1
Max.diameter to be machined Φ125mm Φ125mm
Max.module to be machined 4mm 4mm
Max.length of the workpiece 750mm 1500mm
Max.length of the machined 600mm 1350mm
Range of teeth to be machined 4~60(teeth) 4~60(teeth)
Center high of machine 370mm 370mm
Max.size of milling cutter to be mounted Φ130x200mm Φ130x200mm
Max.travel of tailstock sleeve 50mm 50mm
Adjusting angle of milling head ±15(degree) ±15(degree)
No.of axes to be countrolled 2 axis 2 axis
No.of axes to be followed 2 axis 2 axis
Gears to be machined straight teeth straight teeth
Oveall dimensions (LxWxH) 2530x1835x2100mm 3175x1835x2100mm
Weight of the machine 8500kg 9000kg
