1000 kg Max. Table Load Vertical Bed-type CNC Miller with ±0.01 Repeatability X/Y/Z
1000 kg Max. Table Load Vertical Bed-type CNC Miller with ±0.01 Repeatability X/Y/Z
1000 kg Max. Table Load Vertical Bed-type CNC Miller with ±0.01 Repeatability X/Y/Z
1000 kg Max. Table Load Vertical Bed-type CNC Miller with ±0.01 Repeatability X/Y/Z
1000 kg Max. Table Load Vertical Bed-type CNC Miller with ±0.01 Repeatability X/Y/Z
1000 kg Max. Table Load Vertical Bed-type CNC Miller with ±0.01 Repeatability X/Y/Z
Specifications
Type :
VERTICAL
Range of Spindle Speed(r.p.m) :
3000 - 6000
Number of Axes :
3
No. of Spindles :
Single
Machining Capacity :
Light Duty
Spindle Taper :
BT30
Table Travel (X) (mm) :
450
Table Travel (Y) (mm) :
260
Table Travel (Z) (mm) :
380
Positioning Accuracy (mm) :
±0.02
Repeatability (X/Y/Z) (mm) :
±0.01
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
VMK250
Voltage :
380V 50Hz
Dimension(L*W*H) :
1200*1500*2100mm
Key Selling Points :
Competitive Price
Weight (KG) :
1400
Spindle Motor Power(kW) :
2.2
Warranty :
1 Year
Max. Table Load(kg) :
1000 kg
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
CNC or Not :
CNC
Color :
According to your need
Table size :
900*250mm
Travel :
450*260*380mm
Spindle speed :
6000rpm
Tool magazine :
10 tools
Control system :
GSK CNC system
Condition :
New
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops
Showroom Location :
Italy, France, Brazil, Peru
Core Components :
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Packaging Details :
Wooden box
Port :
China Port
Supply Ability :
500 Set/Sets per Year
Price :
$25,000.00/sets 1-2 sets
MOQ :
1 set
Description

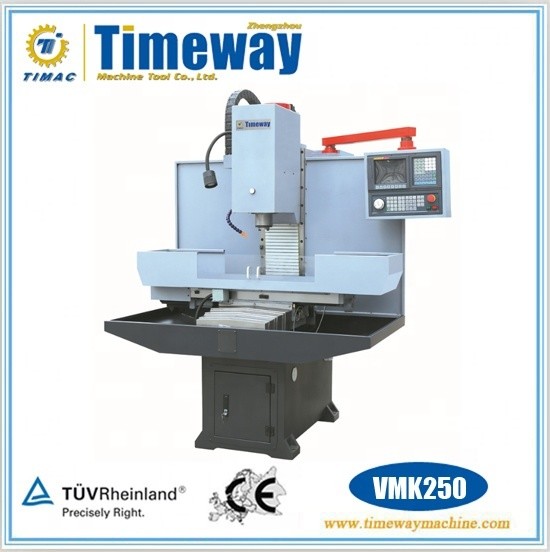

Economic Type CNC Vertical Bed-type Miller

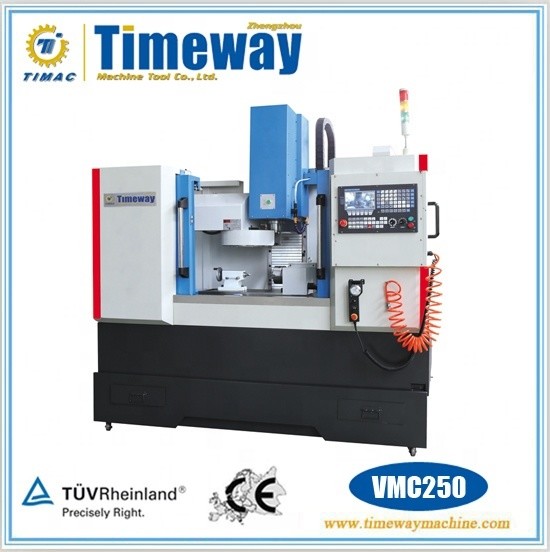

VMK250 VMC250

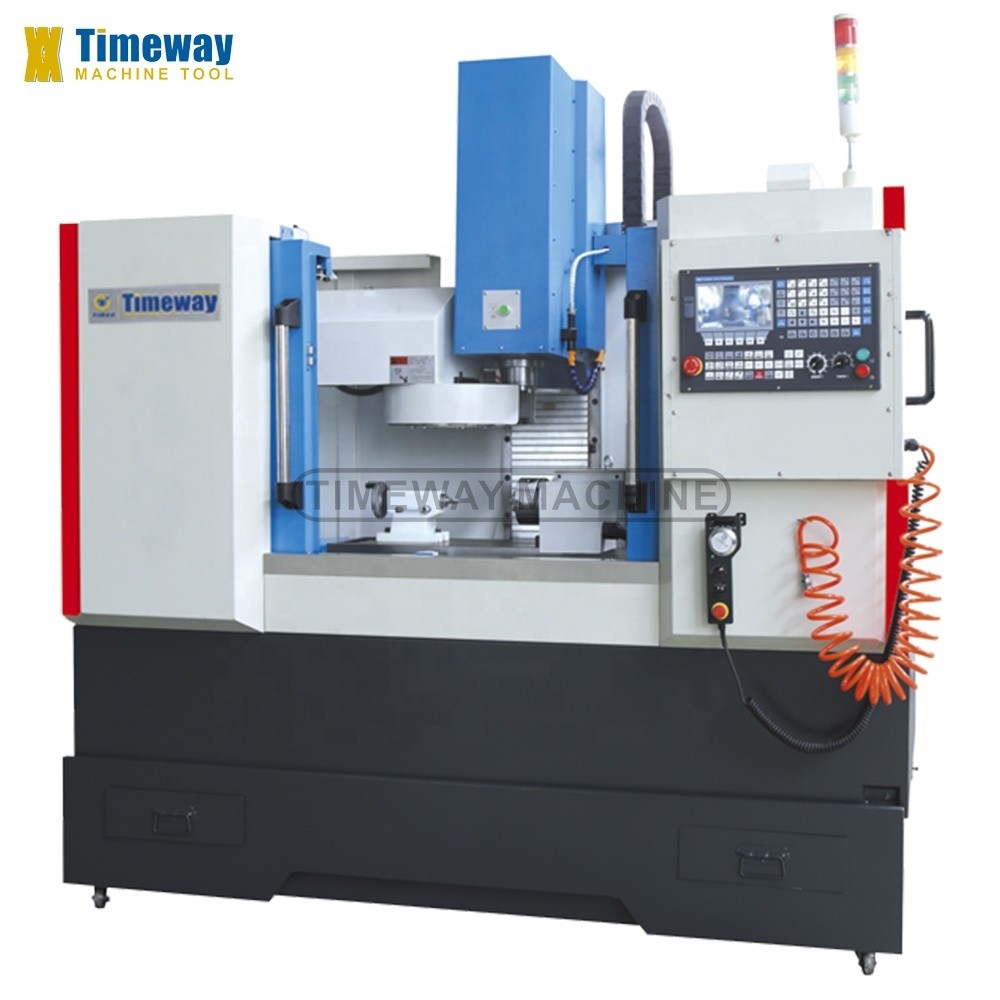

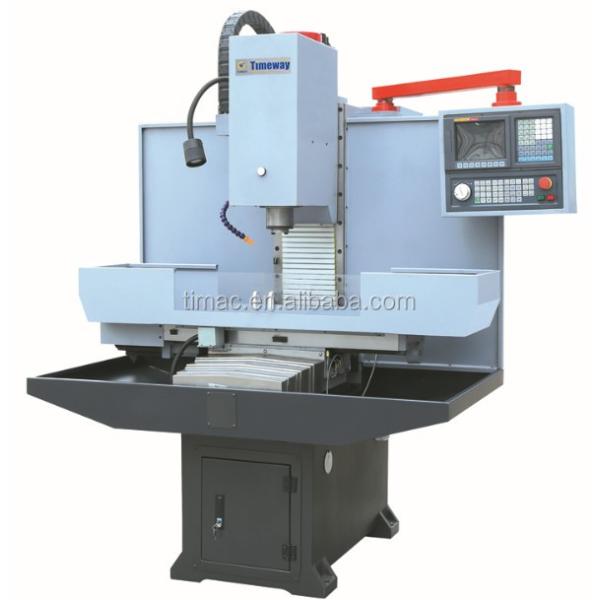

Main Outlook

1000 kg Max. Table Load Vertical Bed-type CNC Miller with ±0.01 Repeatability X/Y/Z

Specifications List

Technical Parameters

Specification

Unit

VMC250

VMK250

Main motor power

kw

2.2

2.2

Highest spindle speed

rpm

6000

6000(optional 3000)

Z-axis motor torque

N.m

7.7

7.7

X-axis motor torque

N.m

6

6

Y-axis motor torque

N.m

6

6

The spindle taper hole

BT30

BT30

Worktable size

mm

900x250

900*250

Tool storage capacity

T

10

-

Stroke (X/Y/Z-axis)

mm

450x260x380

450x260x380

The spindle axis to guide the distance the post

mm

330

330

The distance of spindle end face to the worktable

mm

50-430

50-430

Rapid movement(X/Y/Z-axis)

m/min

6/5/4

6/5/4

The spindle axis to the vertical tolerance of worktable face

mm

≤0.02

≤0.02

Positioning accuracy

mm

0.02

0.02

Repeat positioning accuracy

mm

0.01

0.02

Machine dimension(L*W*H)

mm

2200x1650x2200

1200*1500*2100

Machine weight

kg

1800

1400

Standard Configuration
GSK 150im CNC system


Optional Configuration
HNC-18i/21 MD
GSK-983M CNC system
KND 100M CNC system
