±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
Specifications
Type :
Horizontal
Range of Spindle Speed(r.p.m) :
60 - 600
Number of Axes :
2
No. of Spindles :
Twin
Machining Capacity :
Heavy Duty
Spindle Taper :
Other
Table Travel (X) (mm) :
200
Table Travel (Y) (mm) :
160
Table Travel (Z) (mm) :
130
Positioning Accuracy (mm) :
±0.015
Repeatability (X/Y/Z) (mm) :
±0.008
Place of Origin :
China
Brand Name :
TIMAC TIMEWAY
Voltage :
380V 50Hz
Dimension(L*W*H) :
5100*2135*1990mm
Key Selling Points :
Automatic
Weight (KG) :
13000
Spindle Motor Power(kW) :
11
Warranty :
One Year
Max. Table Load(kg) :
300 kg
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
X-axis travel :
200mm
Y-axis travel :
160mm
Z-axis travel :
130mm
Product name :
horizontal milling machine
Name :
spline milling machine
Keyword :
Spline shaft milling machine
Max. travel of tailstock sleeve :
50mm
Adjusting angle of milling head :
15deg.
Function :
Straight teeth
Weight :
13000kg
Condition :
New
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Construction works , Energy & Mining
Showroom Location :
Canada, Turkey, Germany, Brazil, Saudi Arabia, Indonesia, Romania, Ukraine, Australia
Core Components :
Bearing, Motor, Pump, Gear, Gearbox
Packaging Details :
Standard package
Port :
China Port
Supply Ability :
500 Set/Sets per Year
Price :
$100,000.00/sets >=1 sets
MOQ :
1 set
Description
Product Description

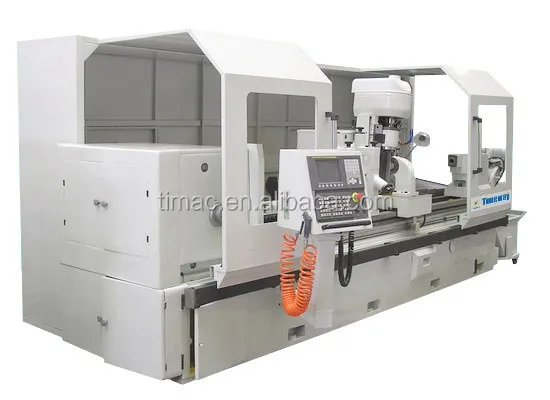

CNC High Efficient Horizontal Spline Shaft Milling Machine

Summary：

The machine is used for cutting straight tooth spline with all kind of tooth shape by using hobbing method.It is also used for cutting straightteeth collecting shaft gears as well as cutting taper splines and stepped gears.
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine

Feature：

1.All machanical system and parts with high rigidity compact constructions and fine protection functions
2.The hob speed is adjusttable from 60 to 600 r/min steplessly,but it can reach from 200 to 600r/min
3.The maximum speed of workpiece is 100 rotor, and the cutting efficiency is rather high.
4.The dry cutting can be come true in the condition of wind cooling.
Specification
Specification
HMK6012
HMK6012/1

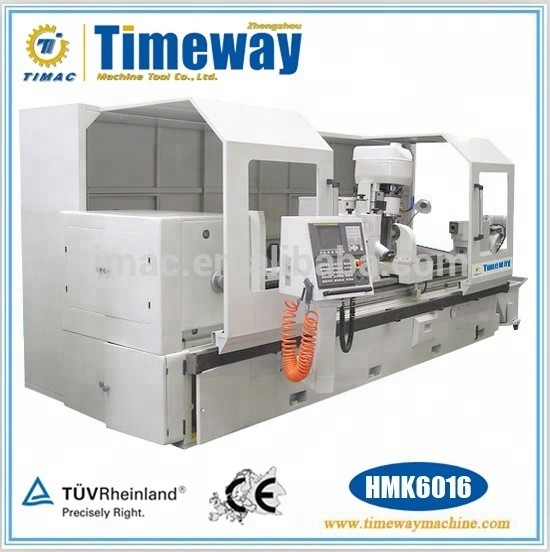

HMK6016
Max.diameter to be machined
Φ125mm
Φ125mm
Φ160mm
Max.module to be machined
4mm
4mm
5mm
Max.length of the workpiece
750mm
1500mm
3000mm
Max.length of the machined
600mm
1350mm
2750mm
Range of teeth to be machined
4~60(teeth)
4~60(teeth)
4~60(teeth)
Center high of machine
370mm
370mm
370mm
Max.size of milling cutter to be mounted
Φ130x200mm
Φ130x200mm
Φ130x200mm
Oveall dimensions (LxWxH)
2530x1835x2100mm
3175x1835x2100mm
5100x2135x1990mm
Weight of the machine
8500kg
9000kg
13000kg
Positive Comments From Customers
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
Factory Display：
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
