G-800 Large Sized Cylindrical Grinding Machine for External Grinding in High Demand
G-800 Large Sized Cylindrical Grinding Machine for External Grinding in High Demand
G-800 Large Sized Cylindrical Grinding Machine for External Grinding in High Demand
G-800 Large Sized Cylindrical Grinding Machine for External Grinding in High Demand
Specifications
Type :
Universal, Cylindrical Grinding Machine
CNC or Not :
Normal
Condition :
New
Place of Origin :
Henan, China
Brand Name :
TIMAC, TIMEWAY
Voltage :
As Buyer's request
Dimension(L*W*H) :
as model
Weight (KG) :
26000
Power (kW) :
22
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
UAE, Romania, South Africa, Spain, Canada, Turkey, Kazakhstan, United States, Indonesia
Applicable Industries :
Restaurant, Farms, Manufacturing Plant, Food & Beverage Shops, Energy & Mining, Machinery Repair Shops, Advertising Company
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Bearing, Engine
After-sales Service Provided :
Engineers available to service machinery overseas
Cylindrical Grinding Machine :
External Grinding Machine
Max. Grinding Length :
3000mm, 4000mm, 5000mm
Max. Grinding Diameter :
800mm
Power :
22kw
Weight :
as table
Certification :
ISO, CE
Packaging Details :
wooden case or plywood case
Supply Ability :
100 Set/Sets per Year
Price :
$150,000.00/sets 1-2 sets
MOQ :
1 set
Description

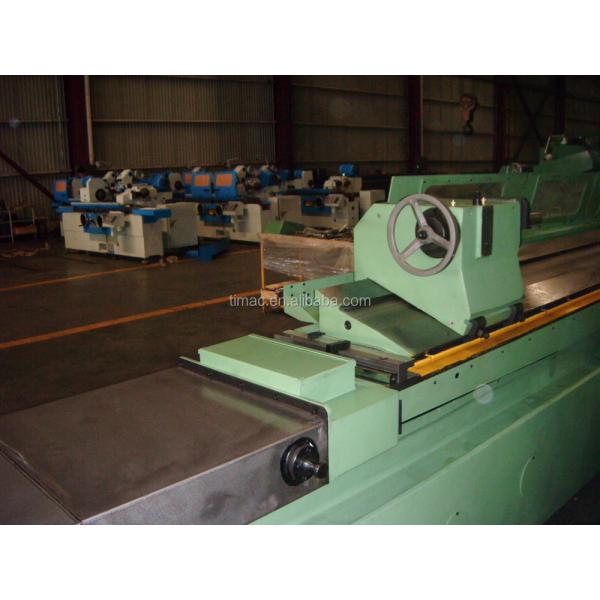

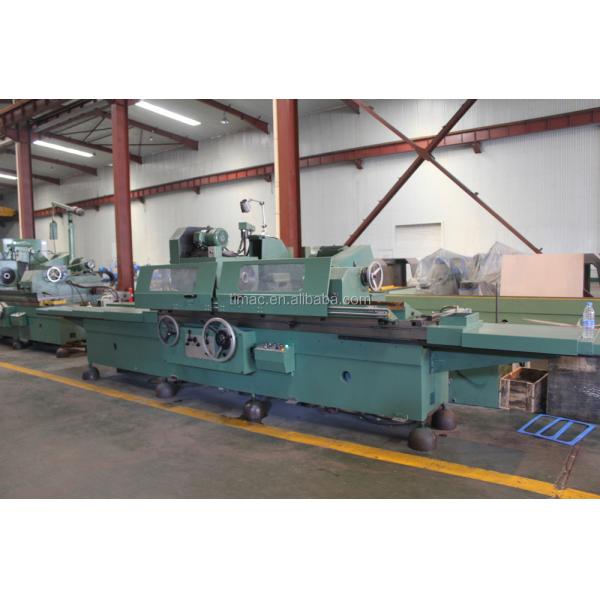

Large OD Cylindrical Grinding Machine

(Model: G-800 x 3000/4000/5000 workpiece length)

G-800 Large Sized Cylindrical Grinding Machine for External Grinding in High Demand

Product Description

Features :

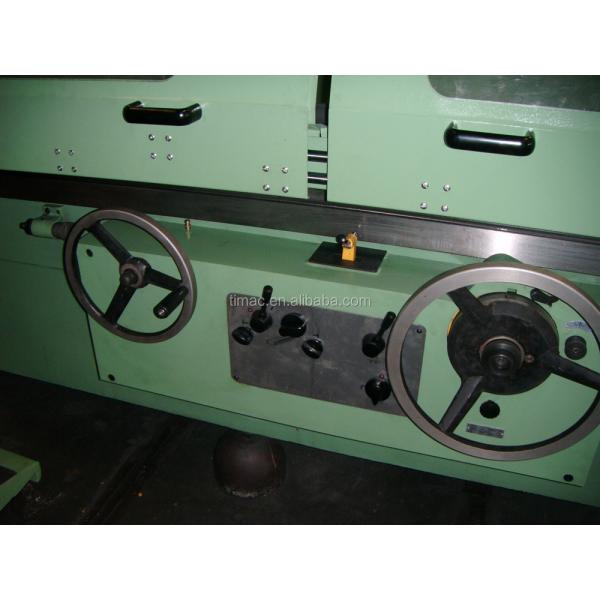

* The wheel head cross feed is driven by hydraulic, which realizes automatic periodical and rapid feed. It can also do rough and fine feed through hand wheel.

* The worktable and wheel head guide way adopt hydrostatic lubrication, its movement on low speed is smooth.

* The spindle is supported by hydrodynamic bearings of high rigidity, ensuring the high rotary accuracy and perfect rigidity.

* The workhead adopts inventer motor to realize variable speed changing.

Specification Unit G-630 G-800
* General capacity
Distance between centers mm 2000, 3000, 4000, 5000 3000, 4000, 5000
Center height mm 370 500
Dia. Ground (O.D) mm 30-630 50-800
Max. length ground (O.D) mm 2000, 3000, 4000, 5000 3000, 4000, 5000
Max. weight of workpiece kg 3000 3000
* Work head
Center taper (MT) MT (metric) 80# (metric) 80#
Spindle speed r/min 50HZ:10-100 stepless 50HZ:10-100 stepless
* Wheel head
Wheel spindle speed r/min 870 870
Wheel head rapid travel mm 100 100
Max. travel mm 475 550
Hand feed per.rev mm rough:4, fine:0.5 rough:4, fine:0.5
Hand feed per.gra mm rough:0.02, fine: 0.0025 rough:0.02, fine:0.0025
Wheel size (ODXWXID) mm 750x75x305 900x75x305
Peripheral velocity m/s 35 35
* Table
Hand feed per.rev mm 5 5
Max.swiveling angle of table Clockwise ° 2° (2000), 1° (3000, 4000, 5000) 1° (3000, 4000, 5000)
Anticlockwise °

4°(2000), 3° (3000),

2° (4000), 1.5° (5000)

3° (3000), 2° (4000),

1.5° (5000)
Table Longitudinal speed range m/min 0.1-2.5 0.1-2.5
* Tailstock
Center taper (MT) MT (Metric) 80# (Metric) 100#
Quill travel mm 70 70
* Motor
Wheel head motor power kw 22 22
Work head motor power kw 15 15
* Machine
Gross weight T

20(2000), 22 (3000),

24 (4000), 26 (5000)

30 (3000), 36 (4000),

41(5000)

G-800 Large Sized Cylindrical Grinding Machine for External Grinding in High Demand G-800 Large Sized Cylindrical Grinding Machine for External Grinding in High Demand

G-800 Large Sized Cylindrical Grinding Machine for External Grinding in High Demand G-800 Large Sized Cylindrical Grinding Machine for External Grinding in High Demand

G-800 Large Sized Cylindrical Grinding Machine for External Grinding in High Demand G-800 Large Sized Cylindrical Grinding Machine for External Grinding in High Demand

Packaging & Shipping

G-800 Large Sized Cylindrical Grinding Machine for External Grinding in High Demand

Our Services

Model: G-200, G-320, G-500, G-630, G-800 (for external grinding)

Model: UG-200, UG-320, UG-500, UG-630 (for external & internal grinding)

* Grinding diameter x Grinding length:
- 200 x 500mm, 200 x 750mm;
- 320 x 1000mm, 320 x 1500mm, 320 x 2000mm, 320 x 3000mm;
- 500 x 1500mm, 500 x 2000mm, 500 x 3000mm, 500 x 4000mm;
- 630 x 2000mm, 630 x 3000mm, 630 x 4000mm, 630 x 5000mm;
- 800 x 3000mm, 800 x 4000mm, 800 x 5000mm;

1. Free replacing parts available in the warranty period.

Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Information

G-800 Large Sized Cylindrical Grinding Machine for External Grinding in High Demand

FAQ

* Trade terms: FOB, CFR, CIF, EXW, FCA price terms is acceptable.

* Payment terms: T/T, L/C, Western Union payment terms is acceptable.
* Delivery time: 60~90days....(vary as the machine's different size and complexible).
* Warranty period: 12monthes after delivery. (Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price).
