11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
Specifications
CNC or Not :
CNC
Condition :
New
Grinding Length(mm) :
2200
Surface Roughness(μm) :
0.16 μm
Table Size(mm) :
810X2200
Year :
2021
Place of Origin :
Henan, China
Brand Name :
TIMAC
Dimension(L*W*H) :
6000x3500x2700mm
Weight (KG) :
12500
Power (kW) :
34
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
Australia, South Africa, Russia, Philippines
Marketing Type :
Hot Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Bearing, Gearbox, Engine, PLC
Applicable Industries :
Manufacturing Plant, Retail, Machinery Repair Shops
Type :
Surface Grinding Machine
PLC Column Moving Surface Grinder :
Large Sized Surface Grinding Machine
Max. Grinding Length :
2200mm
Max. Grinding Diameter :
810mm
Power :
28.5KW
Weight :
11500KG
After-sales Service Provided :
Online support
After Warranty Service :
Online support
Packaging Details :
wooden case or plywood case
Port :
China Port
Supply Ability :
100 Set/Sets per Year
Price :
$65,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

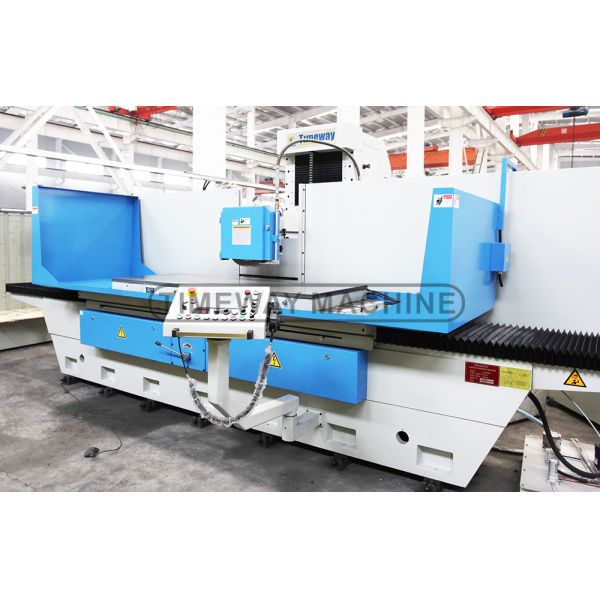

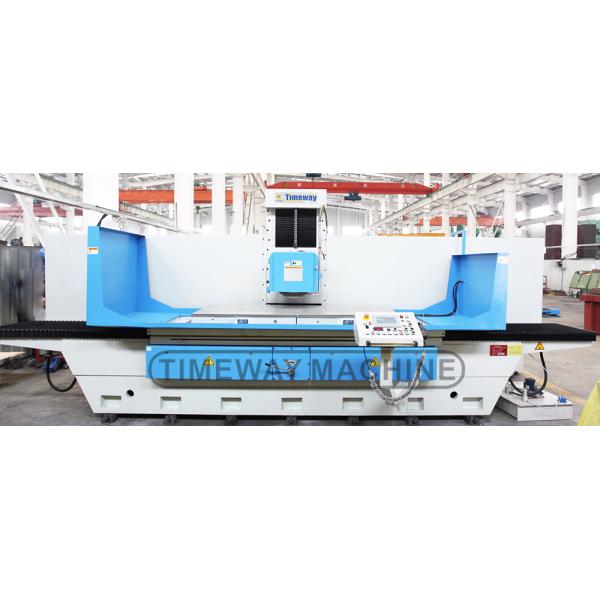

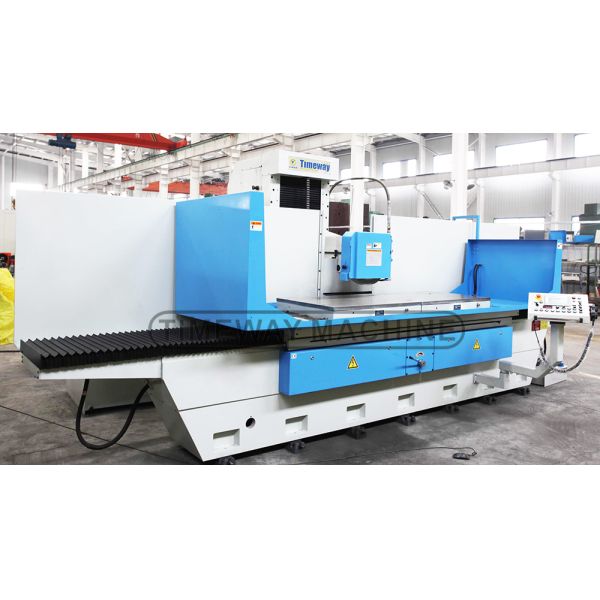

11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
* Double walled column construction, providing high rigid support. Adopt counterweight balance, making the machine moving stably, and reducing the load of the ball screw, keeping the accuracy for long time.
* High rigidity rectangular guideway is designed on vertical motion, and coat with Turcite-B belt, to get low fricion coefficien.
* Adopt the Flat-V type guideway on longitudinal and transverse to set good guidance quality, precision scraping to keep stable work accuracy by hand.
* The independent and large capacity integrated hydraulic station equipped with air cooling and pressurizer, isolate heat and vibroseis, to provide excellent power for precision grinding.
* The transverse and vertical movement are driven by AC servo motor, and the electronic hand
wheel(MPG) instead of the tradition mechanical hand wheel, to get high accuracy and easy operation. * The wheelhead spindle use the hydrostatic bearing with high rigidity(high precision ball bearing for export), which can provide the power force together with 18.5kw motor, suitable for the heavy machining. The spindle rotary is supported by rigidity oil layer without wear, ensure the high precision and long life span.
* Adopt SIEMENS 7 inch LCD-TFT colourful touch screen, built in program of our engineer's genius
designation to make the operation very simple and convenient for the opeator.
* Well designed machine bed is one high grade casting iron, which ensure heavy duty cutting.
* Strengthen ribs are set inside of the rear slide base, make sure great stability support for spindle.
* Super great power spindle unit is most important to the machine. It is really an elaboration under well designed, and our ultimate goal is to balance high rigidity and great accuracy.
* The machine bed and rear slide bed are assembled to one piece,to supply super strong base for efficient working.
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
Specification
Unit
SG-81160FR
SG-81220FR
SG-81300FR
SG-81400FR
Table size
mm
810x1600
810x2200
810x3000
810x4000
Grinding area
mm
810x1600
810x2200
810x3000
810x4000
Grinding height
mm
670(830/1000)
670(830/1000)
670(830/1000)
670(830/1000)
Electro magnetic chuck size (pcs.)
mm
800x800x2
800x1000x2
800x1000x3
800x1000x4
Loading capacity (include chuck)
kg
2000
2400
3500
4000
Table longitudinal feed speed
m/min
5-25
5-25
5-25
5-25
Column cross intermittent feed rate
mm/str
1-30
1-30
1-30
1-30
Column cross continuous feed speed
mm/min
50-2000
50-2000
50-2000
50-2000
Column cross feed rate (MPG)
mm/gra
0.005
0.005
0.005
0.005
Wheelhead vertical intermittent feed rate
mm/str
0.005-0.05
0.005-0.05
0.005-0.05
0.005-0.05
Wheelhead vertical continuous feed speed
mm/min
50-2000
50-2000
50-2000
50-2000
Wheelhead vertical feed rate (MPG)
mm/gra
0.005
0.005
0.005
0.005
Spindle speed (50/60HZ)
rpm
960/1150 (OP: 1450)
960/1150 (OP: 1450)
960/1150 (OP: 1450)
960/1150 (OP: 1450)
Grinding wheel size
mm
Φ500x75xΦ203
Φ500x75xΦ203
Φ500x75xΦ203
Φ500x75xΦ203
Main motor power
kw
18.5
18.5
18.5
18.5
Hydraulic motor power
kw
5.5
7.5
7.5
7.5
Y/Z-axis servo motor power
kw
3
3
3
3
Total power
kw
32
34
34
34
Machine dimensions (LxWxH)
mm
4800x4000x2600
6000x4000x2600
8200x4000x2600
10200x4000x2600
Machine weight
kg
10500
12500
14000
15000
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
- PLC+SMART auto. grinding controller
- Coolant tank
- Work lamp
- Balancing arbor
- Wheel flange and extractor
- Wheel dresser stand
- Y/Z axis electrical wheel(MPG)
- Operation manual (English edition)
- Splashing guard
- Standard grinding wheel
- Leveling wedge and boltd
- Tools & tool-box
- Operation manual(English edition)
- Balancing stand
- Magnetic separator
- Paper filter
- Oil tank guard
- Electrical magnetic chuck
- Built-in magnetic chuck controller
- Parallel wheel dresser
- 2 axis digital readout
- Extra wheel flange
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
Why Choose Us
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
