Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Specifications
CNC or Not :
CNC
Condition :
New
Grinding Length(mm) :
460
Surface Roughness(μm) :
0.02 μm
Table Size(mm) :
200x460
Table Travel (X) (mm) :
510
Table Travel (Y) (mm) :
238
Year :
2021
Place of Origin :
Henan, China
Brand Name :
TIMAC TIMEWAY
Voltage :
220/380v
Dimension(L*W*H) :
200x180x215mm
Weight (KG) :
1600
Power (kW) :
1.5
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
Australia, Turkey, Canada, Malaysia, Thailand, United Kingdom, Peru, Chile, United States
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, PLC
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops
Type :
Surface Grinding Machine
After-sales Service Provided :
Engineers available to service machinery overseas
CNC Grinding Machine :
CNC Surface Grinding Machine
Grinding Length :
460mm
Power :
1.5/2.2kw
Grind Wheel Size :
200x20x31.75mm
Warranty period :
1 year
Certification :
ISO, CE, TUV
Y axis travel :
238mm
X axis travel :
510mm
Packaging Details :
wooden case / pallet
Port :
China Port
Supply Ability :
500 Set/Sets per Year
Price :
$99,999.00/sets 1-2 sets
MOQ :
1 set
Description

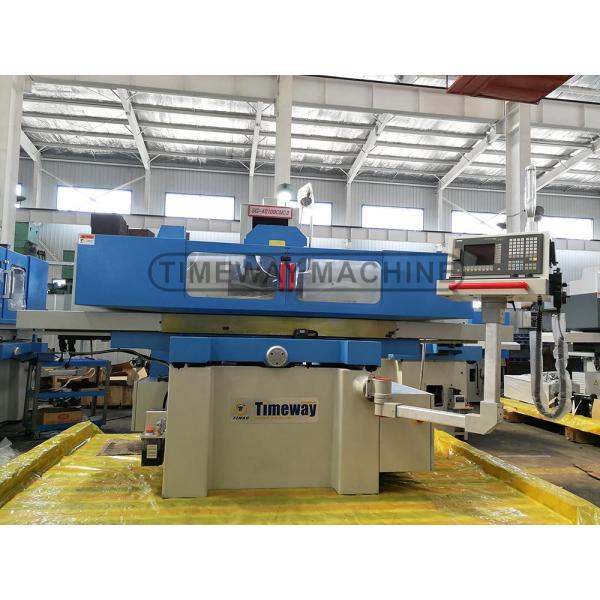

High Quality New CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Products Description
* SG-CNC series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000.
* Welldesigned perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement drivenby AC servo motor (Y-axis), worktable make reversing movement driven by hydraulic or servo motor (X-axis), and spindle make elevating movement (X-axis) and is driven by AC servo motor.
* SG-CNC2 model:
Y/Z-axis numberical control and linkage, drove by ACservo motor and ball screw; X-axis drove by hydraulic.
* SG-CNC3 model:
X/Y/Z-axis numberical control and linkage, drove by AC servo motor amd ball screw.
* Elaborately-designed closed safe guard with safety-switch, not only have good apperance but also safety operating field.
* Precision grind spindle with preload high precision angular ball bearing and drive V3 mtor, runs in maintenance-free, lowvibration, and no noise.

Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Specification
Unit
SG-2050CNC2
SG-2050CNC3
SG-2550CNC2
SG-2550CNC3
Table size
mm
200x460
250x500
Electro magnetic chuck size
mm
200x460
250x500
Table longitudinal travel
mm
510
570
Table cross travel
mm
238
275
Distance from spindle to table
mm
450
450
Loading capacity (include chuck)
kg
120
200
Grinding wheel size
mm
200x20x31.75
200x20x31.75
Main motor power
kw
1.5
2.2
Floor space (LxW)
mm
2600x1800
2800x2000
Gross weight
kg
1600
1900
Packing size (LxWxH)
cm
200x180x215
220x200x215
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
· Electronic handwheel
· Closed safe guard
· Working lamp
· Balancing arbor
· Standard grinding wheel
· Electrical magnetic chuck
· Built-in magnetic chuck controller
· Coolant tank
· Wheel flange and extractor
· Wheel dresser stand
· Operation manual (English)
· Leveling wedge and screw
· Lubrication systemTool box&tools
· Diamond pen
· Extra wheel flange
· Rear splashing guard
· Oil tank guard
· Dust exhaust
· Parallel wheel dresser
· Radius dresser
· Angle dresser
· Side dresser
· Sinusoidal magnetic table
· Electronic handwheel
· Magnetic separator
· Paper filter
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine

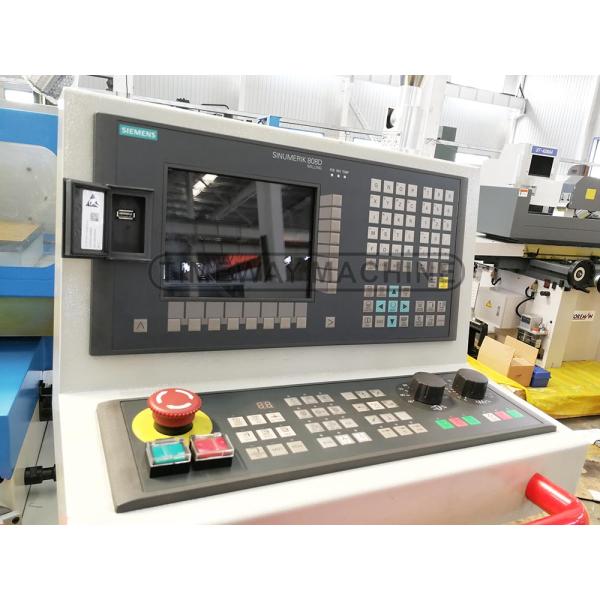

2-axis(Y/Z) or 3-axis(X/Y/Z) CNC control can be choosed for saddle moving grinder. SYNTEC,SIEMENS,FANUC controller are recommend.
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Positive Comments From Customers
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Video Description
Company Imformation
Certifications：
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Customer Visited：
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Exhibition：
Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
