Economical CNC Point Tracking Crankshaft Grinding Machine for High Precision Results
Economical CNC Point Tracking Crankshaft Grinding Machine for High Precision Results
Economical CNC Point Tracking Crankshaft Grinding Machine for High Precision Results
Economical CNC Point Tracking Crankshaft Grinding Machine for High Precision Results
Economical CNC Point Tracking Crankshaft Grinding Machine for High Precision Results
Economical CNC Point Tracking Crankshaft Grinding Machine for High Precision Results
Specifications
Type :
CNC crankshaft grinding machine
CNC or Not :
CNC
Condition :
New
Place of Origin :
China
Brand Name :
TIMAC
Voltage :
380V 50Hz
Dimension(L*W*H) :
As actual situation
After-sales Service Provided :
Engineers available to service machinery overseas
Color :
According to per customer's need
Center height :
180mm
Max. workpiece weight :
150kg
Wheel peripheral velocity :
80m/s
Roundness(O.D) :
1.5um
Surface roughness :
Ra0.32um
Max diameter of wheel :
600mm
Ginding lenght and diameter :
Customizations
CNC system :
Taiwan SYNTEC CNC system or others
Max. Grinding Length :
1000mm
Weight :
As actual situation
Certification :
CE ISO
Max. Grinding Diameter :
320mm
Power :
21.475kw
Packaging Details :
Wood case or wooden pallet
Port :
China port
Supply Ability :
200 Set/Sets per Year
Price :
$50,000.00/sets 1-2 sets
MOQ :
1 set
Description

Economical-type CNC Point Tracking Camshaft(Crankshaft) Grinding Machine

QMKE-200H QMKE-320B

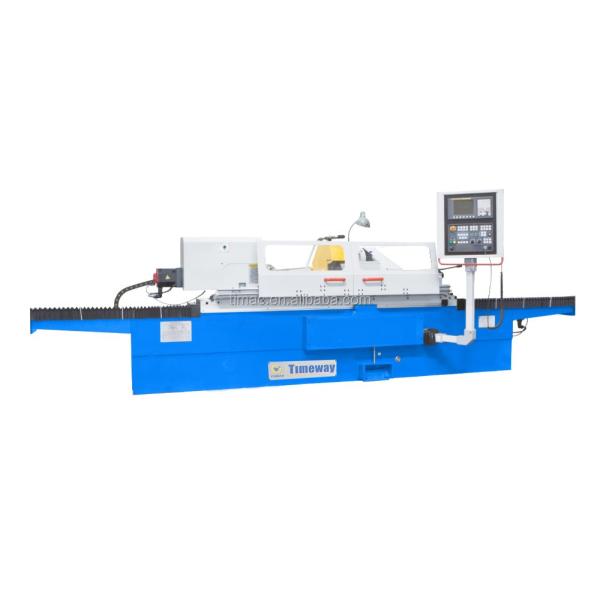

Main Outlook

Economical CNC Point Tracking Crankshaft Grinding Machine for High Precision Results

Main Performances

Main Functions and Features

1. The grinder is a rotary motion and wheel infeed eccentric linkage by the crankshaft control to achieve journal grinding, which is currently the world's most advanced high-precision Crankshaft grinding technology, you can wear a fixture cut the crankshaft main journal and connecting rod neck, greatly improve grinding efficiency and geometric tolerances.
2. Using SYNTEC CNC system(other systems can also be configured according to the customer, such as FANUC or SIEMENS CNC system).
3. Wheel frame using high-speed hybrid spindle assembly.
4. Using proprietary CNC grinding crankshaft software.
5. Configurea separate electrical box, tank and filtration tank.

Main Accessories

  • Wheel periphery dresser
  • Wheel hub
  • Balancing arbor
  • Open-type steady-rest
  • Wheel extractor
  • Magnetic separator

Extra Accessories

  • Wheel balancing stand
  • Diameter measuring instrument
Specifications List

Technical Parameters

Specifications UnitsQMKE-200H*500/750QMKE-320B*1000/1500
Max. swing diameter of workpiece mmΦ200Φ320
Max. length of the workpiece installationmm550/8001050/1550
Max. diameter of wheelmmΦ500Φ600
Max. wheel peripheral velocitym/s8080
Max. workpiece weightkg70150
Roundnessum1.51.5
Dia. uniformity in the longitudinal sectionum55
Surface roughnessumRa0.32Ra0.32

Foundation Drawing

The foundation depth depends upon the soilproperties, but it should be less than 400mm.
