Specifications
Type :
Universal, Surface Grinding Machine
CNC or Not :
Normal
Condition :
New
Place of Origin :
Henan, China
Brand Name :
TIMAC
Voltage :
as customer's request
Dimension(L*W*H) :
1.55m*1.06m*1.59m
Weight (KG) :
950
Warranty :
1year
Key Selling Points :
High Productivity
Showroom Location :
Mexico, South Africa, Spain, Canada, Germany
Applicable Industries :
Farms, Manufacturing Plant, Construction works , Machinery Repair Shops, Hotels, Printing Shops
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Engine, Gear, Pressure vessel, Gearbox
After-sales Service Provided :
Engineers available to service machinery overseas
color :
customized
Machine Name :
Mini Surface Grinding Machine
Max. Grinding Length :
540 mm
Power(W) :
1100
Table size :
540x250 mm
Max.table travel :
560x240 mm
Max.workpiece to be ground :
540x240 mm
After Warranty Service :
Online support
Local Service Location :
Mexico, United States, Germany, South Africa
Certification :
CE & ISO9001
Packaging Details :
in wooden case (can be fumigated)or in plywood case
Port :
China Port
Supply Ability :
350 Set/Sets per Month
Price :
$19,800.00/sets 1-2 sets
MOQ :
1 set
Description

Hand Surface Grinding Machine (small surface grinding machine)

Product Description

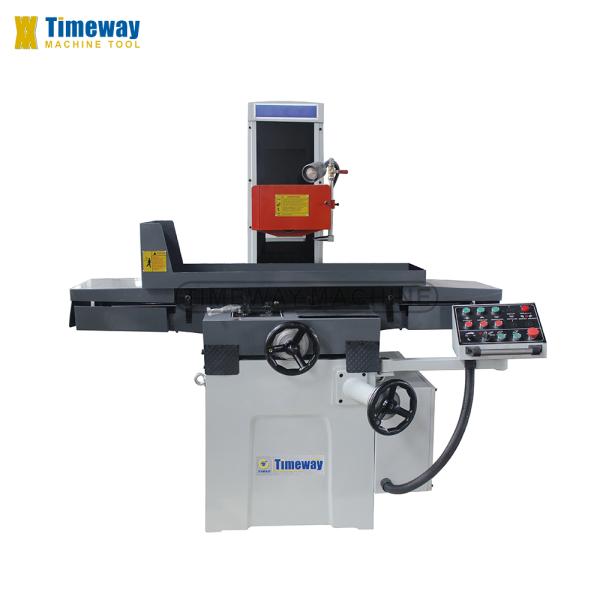

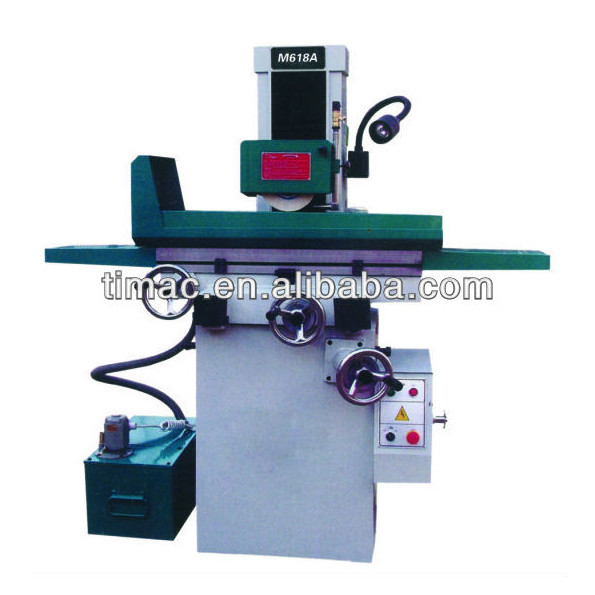

Mini Surface Grinding Machine M618A Voltage as customer's request Stable Performance

Features:

*The manual surface grinding machine adopt the V-type guide,bring transmission by synchronous belt. *Meanwhile, the machine adopt the exceeding precise P4 level ball bearing for spindle, having complete attachment with electromagnetic chuck or the dense chuck of permanent magnetism.

*The machine have the simple and convenient operation, low noise,high precision for processing, steady mechanical performance, reliable hydraulic system of table longitudinal movement

Standard Accessories:

Tool box, Balancing stand/balancing bar, Handwheel nut, Flange wrench, Screwdriver, Balancing screw,

Open-end wrench, Inner hexagon spanner, Wheel dresser holder, Machine stand pad, Wheel flange,

Wheel dresser, Chuck.

Optional Accessories:

Tiltable permanent chuck, Demagnetizer, Overhead parallel dresser, Angle dresser, Radius dresser, Precision vice, Dust suction device, Digital readout system, Working light, Wheel flange.

Parameter:

Model Unit M618A M820 M250
Table size mm 460×180 480×200 540×250
Max.table travel mm 500×190 530×220 560×240
Max.workpiece to be ground mm 500×190 520×220 540×240
Max.distance from table to
spindle center		 mm 335 490
Table slide-way V-type rail with steel ball Double V-type rail
Cross feed on handwheel
per revolution		 mm 2.5
Cross feed on handwheel
per graduation		 mm 0.02
Vertical feed on handwheel
per revolution		 mm 1.25
Vertical feed on handwheel
per graduation		 mm 0.01
Wheel speed rpm 2850
Wheel size(dia.×width×bore) mm 200×16×31.75 200×20×31.75
Spindle motor w 1100 1500
coolant pump w 40
Net weight kg 650 750 900
Gross weight kg 750 800 950
Overall dimension(L×W×H) m 1.55×1.06×1.59 1.68×1.14×1.80 1.80×1.40×1.80
Packing size(L×W×H) m 1.06×1.17×1.87 1.14×1.24×1.96 1.30×1.63×1.96
