Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Specifications
Max. Length of Workpiece (mm) :
700
Range of Spindle Speed(r.p.m) :
8 - 163 r.p.m
Machining Capacity :
Medium Duty
Type :
Horizontal
Spindle Motor Power(kW) :
15 KW
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
CL6025
Voltage :
220V/380V
Weight (KG) :
10000 KG
Warranty :
1 Year
Key Selling Points :
Sustainable
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
Normal
Automatic Grade :
Manual
After-sales Service Provided :
Engineers available to service machinery overseas
Machine Type :
facing lathe
face lathe machine :
chuck lathe
Max. Swing Diameter :
2500mm
Power :
15kw
Certification :
CE ISO
Max. length of workpiece :
700 mm
Max. cross travel :
320 mm
Condition :
New
Spindle Bore(mm) :
Other
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Other
Showroom Location :
Brazil, Mexico, Thailand, Kenya, Chile, Colombia, South Africa
Core Components :
Motor, Other
Max. Turned Length (mm) :
700 mm
Packaging Details :
Wooden case(can be fumigated)
Port :
China port
Supply Ability :
100 Set/Sets per Month
Price :
$25,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

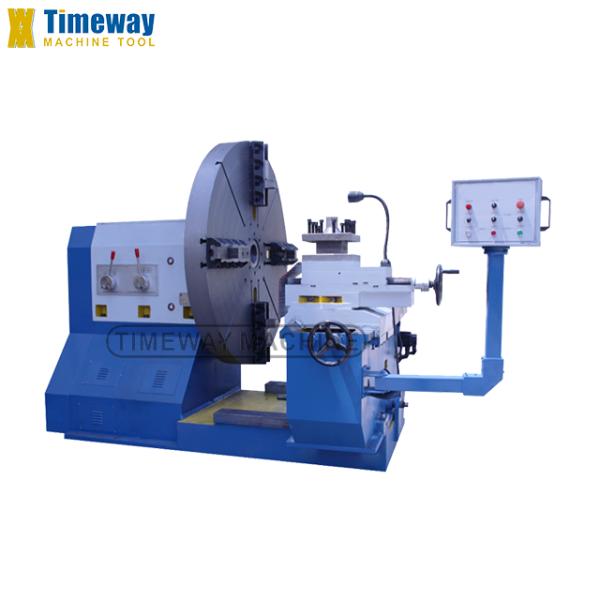

Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Key Features:
1. The machine is large floor lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel forgings and non-ferrous disc type rotating body metal parts machining;
2. All guideways are quenched and hardened, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed;
3. To complete the cylindrical,conical,end,grooving,etc,can meet part of the rough and fine turning;
4. All the gears are precision grounded, with long life and low noise.
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Specification
Unit
CL6025
CL6030
Max. swing diameter over bed
mm
Φ 2500
Φ 3000
Center high
mm
1250
1500
Max. length of workpiece
mm
700
700
Max. weight of workpiece
kg
5000
5000
Chuck diameter
mm
Φ 2000
Φ 2500
Spindle speed range
r.p.m
8-163
12-66
Max. longitudinal travel
mm
1250
1500
Max. cross travel
mm
320
320
Main motor power
kw
15
18.5
Why Choose Us
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
