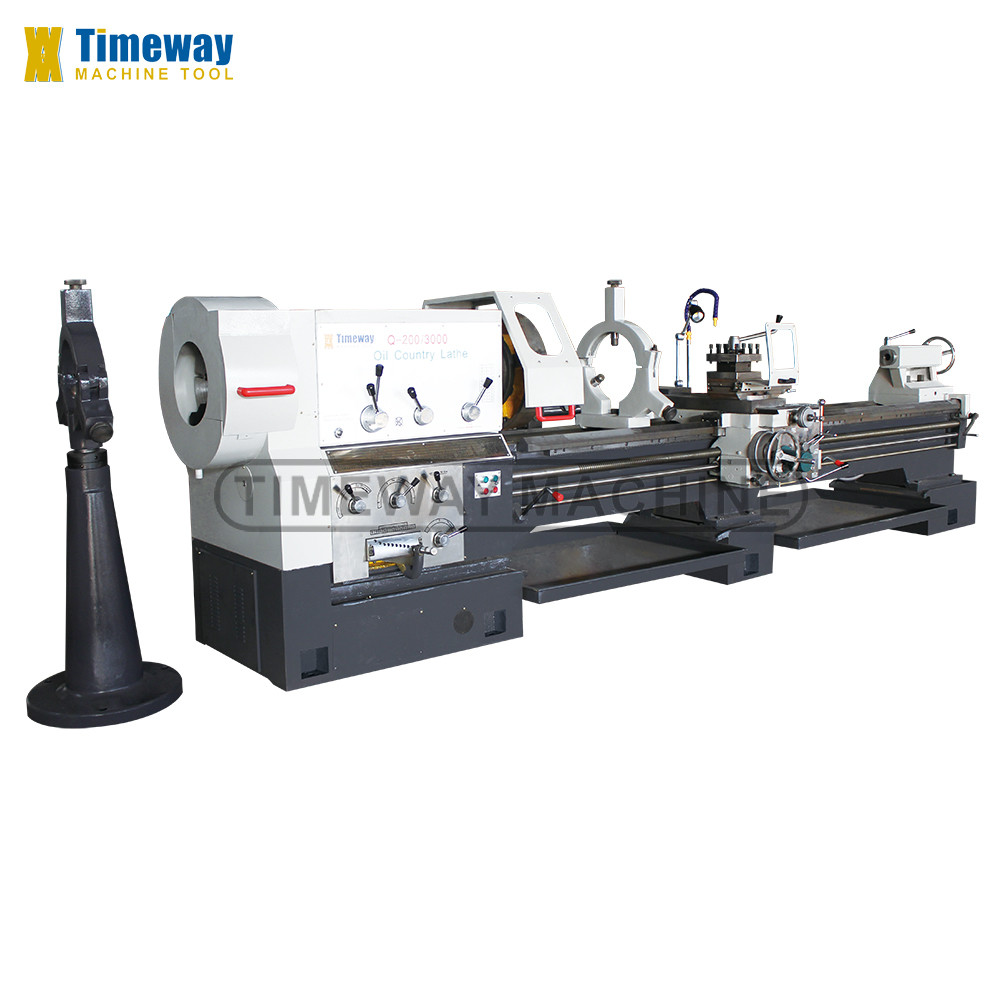

High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
Specifications
Max. Length of Workpiece (mm) :
3000
Range of Spindle Speed(r.p.m) :
20 - 480 r.p.m
Machining Capacity :
Medium Duty
Type :
Horizontal
Spindle Motor Power(kW) :
11
Place of Origin :
Henan, China
Brand Name :
Timeway
Model Number :
Q-200
Weight (KG) :
5500 KG
Warranty :
1 Year
Key Selling Points :
High-accuracy
Marketing Type :
New Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Name :
Manual Lathe Machine
Machine Type :
Horizontal Normal Lathe
Product Name :
Manual Metal Lathe Machine
Precision :
High Precision
Distance between centers :
1500mm/3000mm
Swing over bed :
630/800mm
Spindle speed :
20-480 rpm
Spindle bore :
200mm
Max.swing over bed :
630mm/800mm
Tailstock taper :
MT5
Condition :
New
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Food Shop, Construction works , Energy & Mining
Showroom Location :
Canada, United States, Italy, France, Germany, Viet Nam, Peru, India, Russia, Spain, Thailand, Japan, Malaysia, Australia
Core Components :
Bearing, Pump, Motor, PLC, Engine
Spindle Bore(mm) :
200
Max. Turned Length (mm) :
520 mm
Year :
2024
Price :
$29,959.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
Product Description
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
Specification

STANDARD ACCESSORIES:

√ Big bore chuck (Front & Rear)
√ Dead centers
√ 4-station electric tool-post
√Taper turning attachment
√ Cooling system
√ Work lamp
√ Chip collecting plate
√ General tools
√ Leveling wedge & bolts
√ Operation manual (English)

OPTIONAL ACCESSORIES:

_ 2 or 3-axis DRO
_ Chuck guard
_ Tool-post guard
_ Rear splash guard
_ Rear support for long pipe
SPECIFICATION
UNIT
Q-200
Max. swing over bed
mm
630/800
Max. swing over cross slide
mm
340/520
Distance between centers
mm
1500/3000
Pipe threading range
mm
50-193
Bed width
mm
550
X-axis travel
mm
320/420
Z-axis travel
mm
1350/2850
Loading capacity
kg
3000
Spindle bore
mm
200
Spindle speed step
steps
CCW:12/CW:9
Spindle speed
rpm
20-480
Chuck size
mm
520
Chuck type(manual)
-
4-jaw
Turret type(manual)
-
V4
Tool shank size
mm
32x32
X-axis feed range(steps)
mm/r
0.02-0.45(22)
X-axis rapid feed speed
mm/min
2300
Z-axis feed range(steps)
mm/r
0.07-1.33(26)
Z-axis rapid feed speed
mm/min
4000
No. of Metric thread and range
mm
1-14(24)
No. of Inch thread and range
TPI
28-2(40)
Tailstock quill diameter
mm
100
Tailstock quill taper
-
MT5
Tailstock quill travel
mm
250
Main motor power
kw
11
Rapid feed motor power
kw
0.3
Coolant motor power
kw
0.125
Machine dimensions(LxWxH)
mm
3700/5200x1550x1550
Machine weight
kg
4300/5500
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
Factory Display：
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
