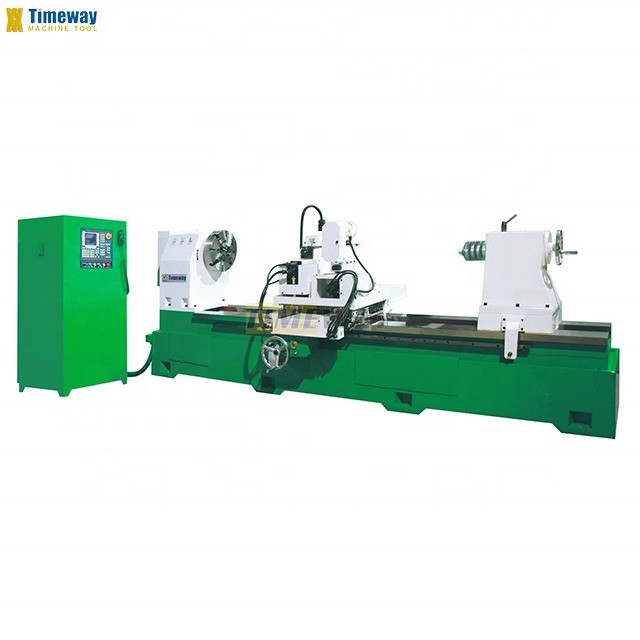

MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
2500
Structure :
Flat Bed Lathe
Machining Capacity :
Heavy Duty
Max. Weight of Workpiece(kg) :
150 kg
Width of bed (mm) :
700 mm
Spindle Motor Power(kW) :
7 kw
No. of Spindles :
Single
Number of Axes :
4
Travel (X Axis)(mm) :
500 mm
Travel (Z Axis)(mm) :
600 mm
Positioning Accuracy (mm) :
±0.002
Repeatability (X/Y/Z) (mm) :
±0.002
Place of Origin :
Henan, China
Dimension(L*W*H) :
4300x1750x1800mm
Brand Name :
TIMAC
Model Number :
RPK-5025
Voltage :
380v 50hz
CNC Control System :
FANUC
Tool Post Stations :
8
Weight (KG) :
5580
Warranty :
1 Year
Key Selling Points :
Competitive Price
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Control system :
SIEMENS CNC System
Max. length of workpiece :
2500mm
Spindle bore of headstock :
MT#5
Max. spindle speed of flyer milling head :
550rpm
Max. spindle speed of swivel head :
2850rpm
Min. of feed unit of length :
0.001mm
Max. Swing Diameter :
500mm
Net weight :
5580 kg
Coolant pump motor :
120 w
Condition :
New
Spindle Bore(mm) :
58
Showroom Location :
Egypt, Canada, Germany, Brazil, Mexico, Chile, Algeria, South Africa
Marketing Type :
Hot Product 2019
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Other
Core Components :
Motor, Other
Max. Turned Length (mm) :
2500
Year :
2022
Max. Spindle Speed (r.p.m) :
11 r.p.m
Packaging Details :
Wooden pallet or wood case
Port :
China Port
Supply Ability :
300 Set/Sets per Year
Price :
$100,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

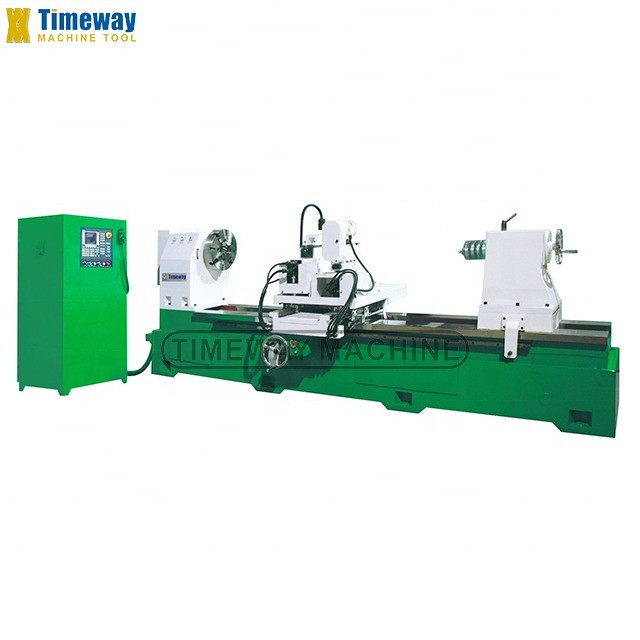

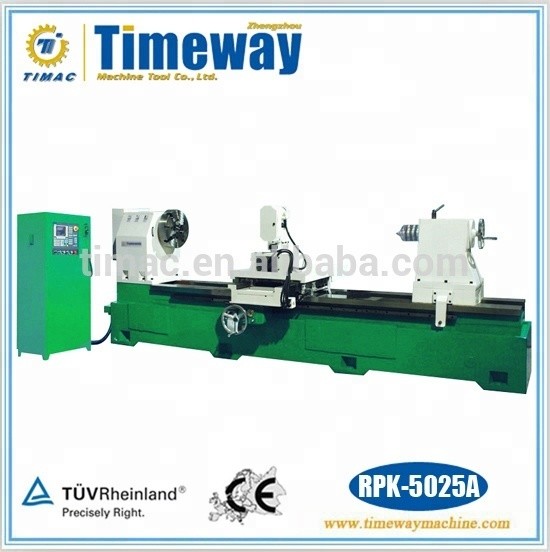

MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
1. With this CNC roll notching and branding lathe RPK-5025, there is no need to engrave
logo and specification by EDM any more. No worry about carbide broken that is caused by EDM marking process very often. Now,it's done by special designed swivel head easily and accurately. Save lot of your time and your money for EDM investment andelectrodes.
2. All international rolled ribbed bar's standards can be performed by this machine. Not only china crescent notches of GB1499.2-2007, but also all international standard such as ISO6935-2, JIS G3112, ASTM A615, BS 4449, BS4461, ANSI etc. It is the unique notching machine, which can produce the REAL “JIS” & international standard notches. Not similar JIS from China GB standard base.

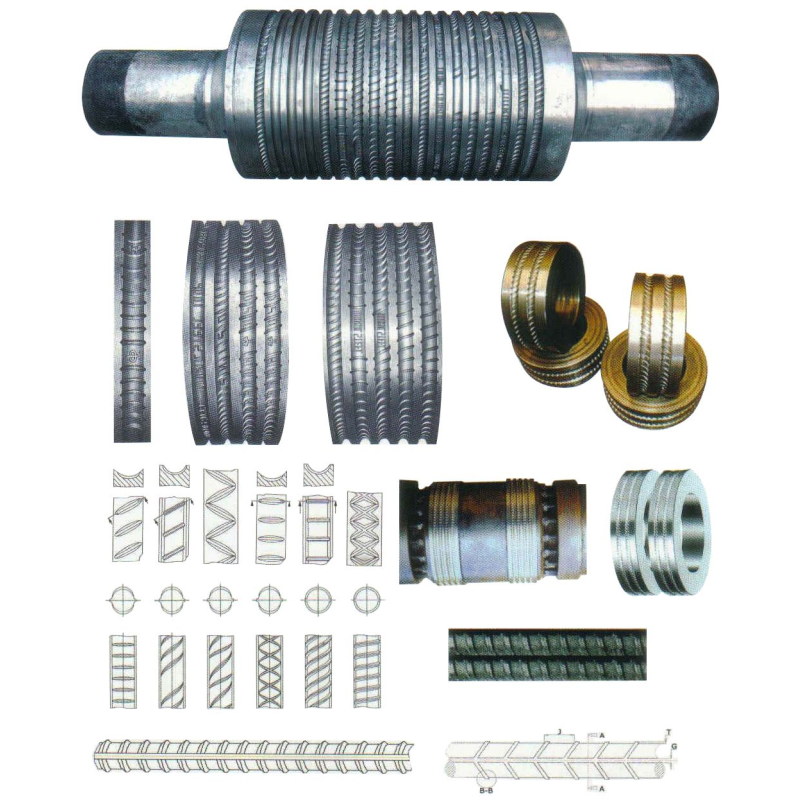

3. Many kinds of roll materials can be notched and marked easily, such as high Ni-Cr casting iron roll, H.S. steel roll and tungsten carbide roll ring.
4. Only about 10 minutes notching can be done for one cycle of bar size Φ20mm in dia. Φ340mm high Ni-Cr casting iron roll.Three times efficiency than before.

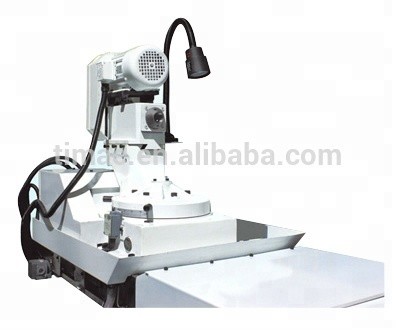

5. Any number, letter, symbols and logo can be engraved freely in the roll. Independent swivel engraving head guaranteed the smooth and accurate engraving. This special design reduced the working intensity of fly cutter milling head and keep long life service for customer. Much better than that of one combined unit with notching and engraving.
6. Famous Siemens SINUMERIK 808D CNC controller guarantees reliable & long life quality.
7. Japan YASKAWA servomotors guarantee powerful running for notching and engraving. It has been proved to be the best one fornotching machine. None beatable in this field.
8. Independent servo motor for all four axes.
9. Three axes simultaneously perform.
10. Patent fly cutter milling head guaranteed the powerful ad accuracy notching in dimensions(rib depth, thickness and leadangle). It is particularly important when performing on tungsten carbide rings and composite rolls.

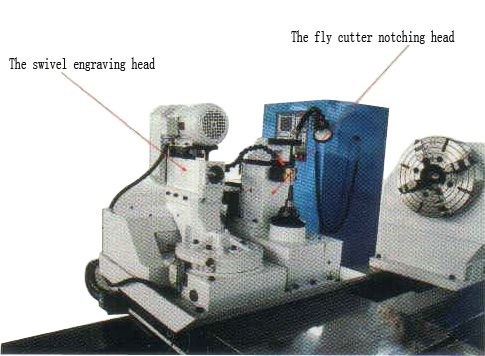

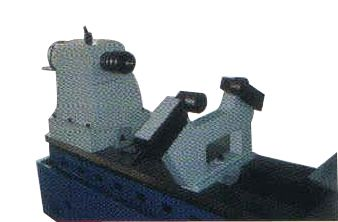

11. Easy to switch notching to engraving by unique designed fly milling head & swivel engraving head that were mounted at one side. Avoid the roll-load colliding and no further headache for disassembling of fly cutter arbor, cutter support; no need to adjust swivel head and reset tool for engraving that you operate in the series machine. No any interference now.
12. Rectangle heavy casting bed with two square ways guarantee high rigidity. Square ways between saddle and apron offer rigidity support for notching and engraving. The rigidities reduced lot of notching vibration and help to achieve good cutting finish. (No any weak dovetail way, triangle way and arc roller guide way can be found in this machine) one piece of cutting tool is able to do all notching for a roll. Much save for tool's cost and tool's sharpening time.
13. Turcite-B box way provide strong and smooth movement for high precision machining. Solved the weakness problem of dovetail way and arc roller way that you may find in our first generation machine.
14. Precision ball screws ensure the transmission for accuracy positioning and smooth automatic operation.
15. Centralized automatic lubrication pump controlled by CNC system to ensure the perfect lubrication for all guide ways automatically. No damage risk by lack of lubrication by one-shot manual lubrication pump in other similar machine.

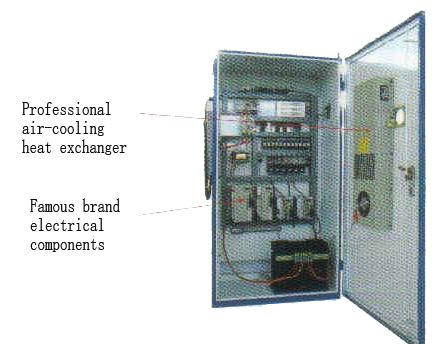

16. Industry heat exchange air-cooling & anti-dust big electrical cabinet ensured long time & stable working. It's guaranteed the CNC machine to work well in the hot and humidity Southeast Asia, South Asia and Africa. From now on, you won't complain any more about arm-type CNC controller suffered by humidity, steel powder dust and cutting vibration.
17. Strong roller type steady rest offers perfect support to heavy roll. No any beat from other popular steady rests.
18. Old notches in the roll can be renewed directly by this machine about 3 times. It's no need to turning cut-off old grooves of roll as usual. This machine will help you to save lots of time and money.

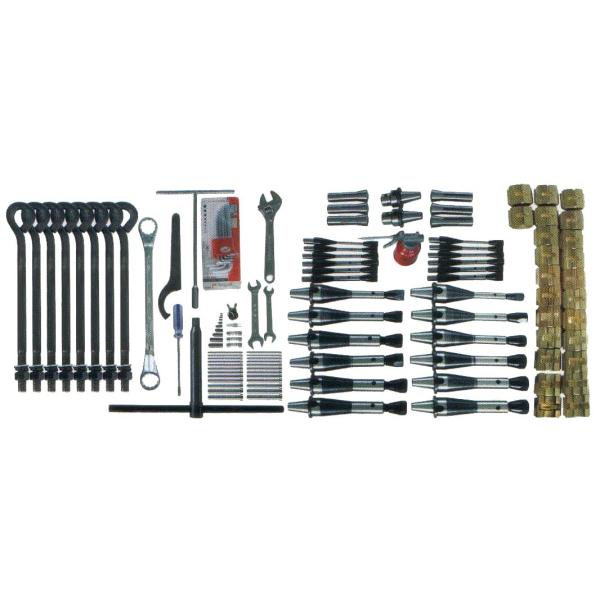

19. Special designed cutting tool grinder C/W tool fixture is available for your option now. You can sharpen the cutting tools at your shop any time.
20. Easy learning: Professional SIEMENS CNC with easy to use software let your job easy.
21. Experienced technical support team is always ready to support you for operation & programming training.
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
Specification
Unit
RPK-5025
Max. diameter of workpiece
mm
Φ500
Max. length of workpiece
mm
Φ2500
Suitable for screw steel specification
mm
Φ5-Φ50
Notching per roll

As many as required
Notching angle

Free choice
Omitting ribs

Free choice
Minimum feed unit
mm
0.001
Minimum feed unit
°
0.001
Max. spindle speed of flyer cutting milling head
rpm
550
Max. spindle speed of swivel milling head
rpm
2850
Spindle bore of headstock

MT#5
Headstock chuck(4 jaw chuck)
mm
Φ400
Motor of swivel head
kw
1.1
Workpiece swivel feed speed
deg/min
50-600
Rapid workpiece feed speed
deg/min
4000
Swivel speed of swivel head
deg/min
40-600
Coolant pump motor
w
120
CNC control system(4 axis control & 3 axis simultaneous movement)

SIEMENS
CNC control system power
V/HZ
220/50
X axes servo motor(flyer cutter axis)
kw
4.4
Y axes servo motor(roll axis)
kw
1.3
Z axes servo motor(feed axis)
kw
3
C-axes servo motor(Swivel axis)
kw
1.3
Output torque of servo motor(X-axes, flyer cutter axis)
N.m
28.4
Output torque of servo motor(Y-axis, roll axis)
N.m
8.34
Output torque of servo motor(Z axes, feed axis)
N.m
8.34
Output torque of servo motor(C axes, swivel axis)
N.m
28.4
Packing size of machine
mm
4300*1750*1800
Packing size of electric cabinet
mm
1000*800*1800
Net weight
kg
5580
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
Why Choose Us
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
