Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
5000
Structure :
Slant Bed Lathe
Machining Capacity :
Heavy Duty
Max. Weight of Workpiece(kg) :
5000
Width of bed (mm) :
755 mm
Spindle Motor Power(kW) :
18.5
No. of Spindles :
Twin
Number of Axes :
2
Travel (X Axis)(mm) :
1100 mm
Travel (Z Axis)(mm) :
730 mm
Place of Origin :
China
Dimension(L*W*H) :
8300x2520x2120mm
Brand Name :
TIMAC, TIMEWAY
Model Number :
QK-350A
Voltage :
As per customer request
CNC Control System :
Siemens
Tool Post Stations :
4
Weight (KG) :
13000
Warranty :
1 Year
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Machine Type :
pipe threading lathe
Max. length of workpiece :
5000mm
Max. diameter of pipe :
340mm
Spindle bore :
355mm
Spindle speed :
5-320rpm(4shifts, stepless)
Control system :
SIEMENS or FANUC or FAGOR
Max. Swing Diameter :
1100mm
Weight :
13000kg
Certification :
CE ISO
Power :
18.5kw
Condition :
New
Applicable Industries :
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining
Showroom Location :
United States, Germany, Brazil, Saudi Arabia, Indonesia, Mexico, Russia, Kazakhstan
Marketing Type :
Ordinary Product
Core Components :
Bearing, Motor, Pump, Gear
Year :
latest day
Max. Spindle Speed (r.p.m) :
320 r.p.m
Spindle Bore(mm) :
355
Max. Turned Length (mm) :
4800
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
50 Set/Sets per Month
Price :
$180,000.00/sets >=1 sets
MOQ :
1 set
Description
Product Description

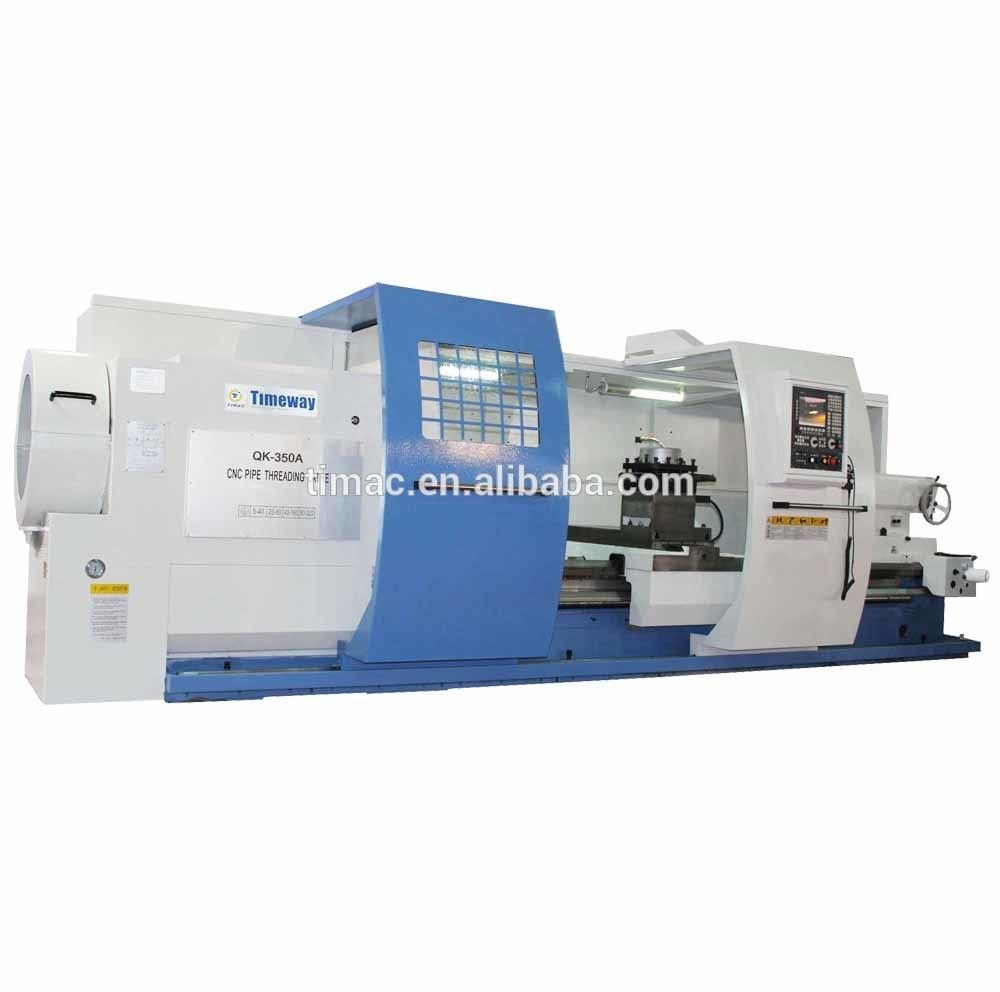

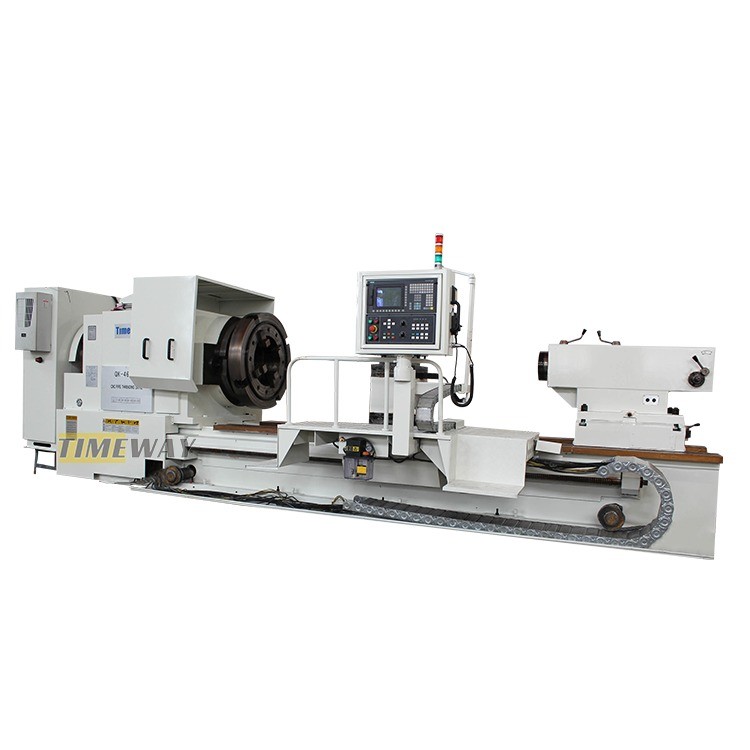

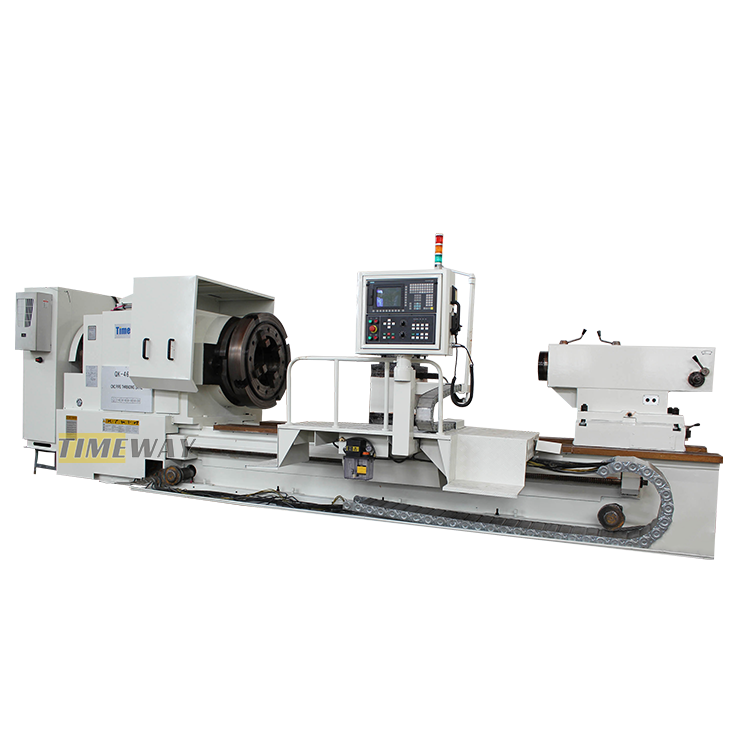

pipe threading lathe

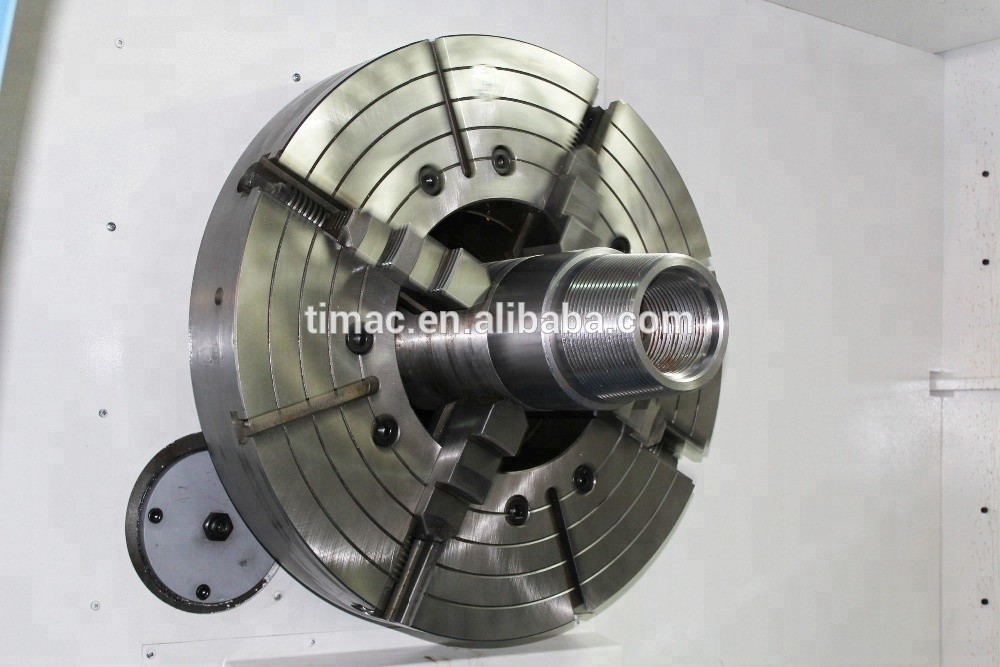

We, Timeway Machine sold 6", 8", 10", 14", 18" hollow spindle CNC oil country lathes designed to perform all sizes of the threads used in the oil & gas industry; center height 385mm, 500mm, 550mm, 650mm; distance between centres from 750mm up to 5000mm; 3-jaw self-centering chuck or 4-jaw independent chuck on both sides of gear box. All machines are in conformity to the CE norms.

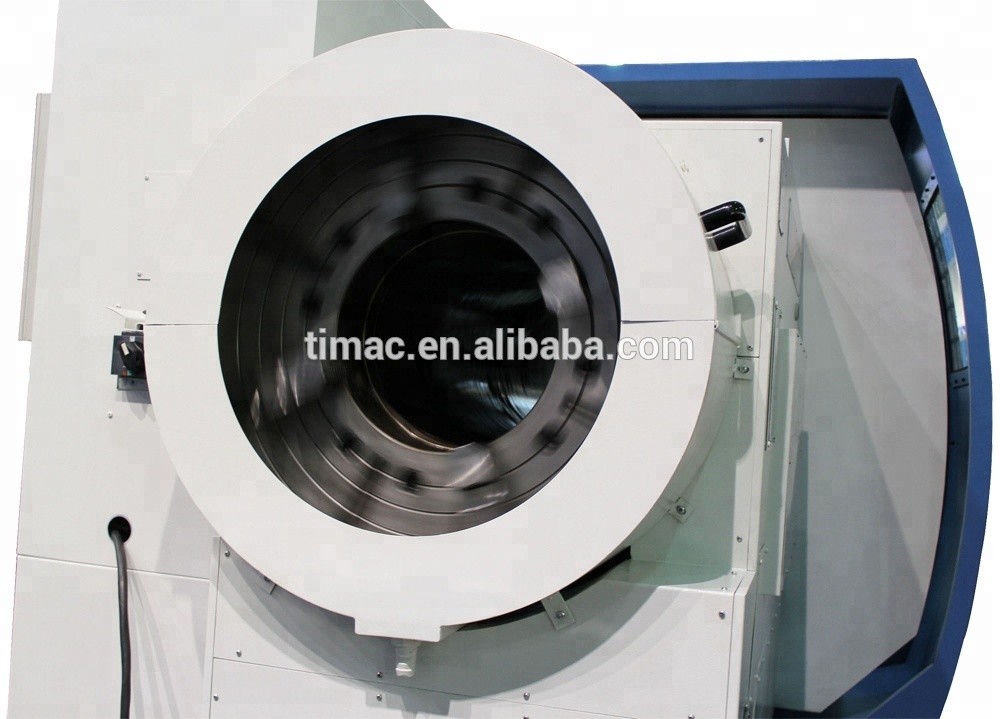

This machine was designed for use in demanding petroleum industry applications and integrates decades of experience. Massive headstock with mian spindle running in tapered roller bearins, and two lathe chuck mounts.
13000kg Heavy Duty CNC Oil Country Lathe for Large Bore Pipe Threading Solutions

Feature：

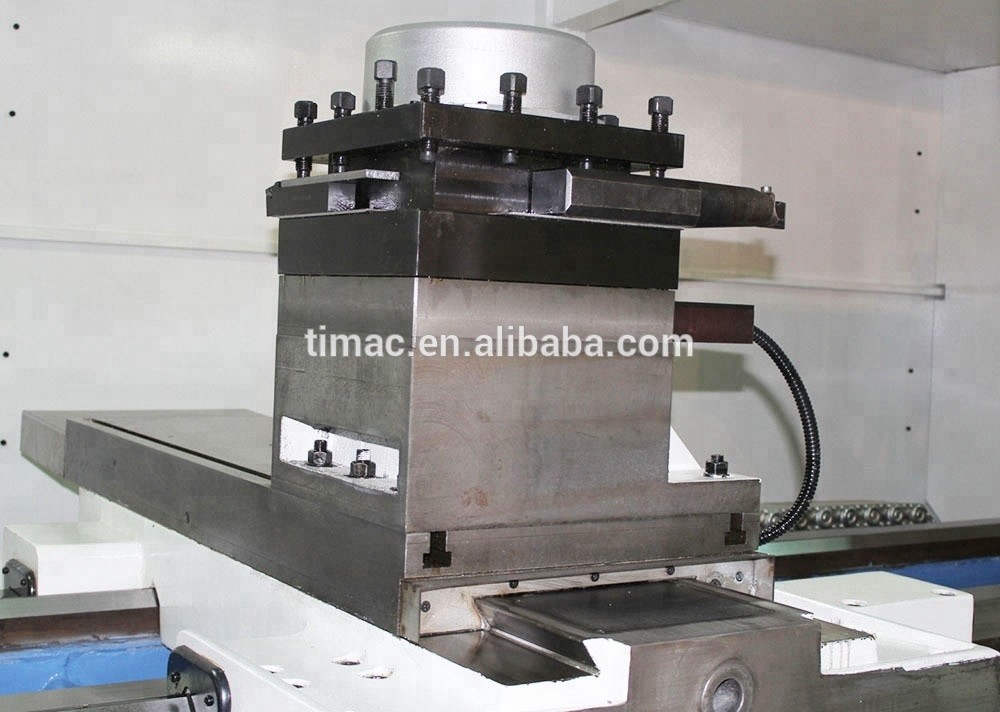

The wide machine bed features large, hardened and ground guideways and high rigidity. High torque drives and preloaded ball screws on all axes. Automatic 4-step gears with infinitely variable speed ranges. Hardened and ground gears for effective power transmission. Heavy-duty 4-station tool holder with automatic tool changing function. Including high performance coolant system, and central lubrication unit. Control technology with award-winning reliability and many years of experience-FANUC or SIEMENS CNC system. Electronic hand-wheel at the control panel for manual operation ensure easy, quick setup of new workpieces and tools.
Specification
Specification
Unit
QK-120A
QK-190A
QK-260A
QK-350A
QK-460A
Capacity
Centre height
385
500
550
650
Swing over bed
mm
770
1000
1100
1250
Swing over carriage
mm
480
630
730
900
External diameter of pipes
(manual chuck)
mm
120
190
70-260
114-340
300-460
Maximum length of workpiece
mm
750/1000/1500/2000/3000
1500/3000/5000
3000
Maximum turning length
mm
600/800/1350/1850/2850
1300/2800/4800
2800
Width of guideway
mm
550
755
1100
Spindle
Spndle bore
mm
130
200
275
355
465
Spindle nose
C11
A2-15
A2-28
Chuck type(manual chuck)
manual 3 jaw 380
manual 3 jaw 500
manual 4 jaw 630
manual 4 jaw 800
manual 4 jaw 630
CNC system
Alternatives
FANUC 0i TD; SIEMENS 828D; FAGOR

Standard Configurations:

* FANUC CNCsystem
* Vertical 4-station electric tool-post
* Electric Tailstock
* Manual 4-jaw chuck
* Central lubrication system
* Working light
* Coolant system
* Semi-closed cover
* Electric cabiner with air Conditioner
* Tool box and tools
* Programming manual
* Operator manual

Optional Configurations:

* SIEMENS/FAGOR CNC system
* Hydraulic chuck
* Hydraulic or manual tailstock
* Six and eight stations tool-post
* Hydraulic or pneumatic 3-jaw chuck
* Live center
* Special accessories
Client feedback
13000kg Heavy Duty CNC Oil Country Lathe for Large Bore Pipe Threading Solutions
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
13000kg Heavy Duty CNC Oil Country Lathe for Large Bore Pipe Threading Solutions
Factory Display：
13000kg Heavy Duty CNC Oil Country Lathe for Large Bore Pipe Threading Solutions
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
13000kg Heavy Duty CNC Oil Country Lathe for Large Bore Pipe Threading Solutions
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
13000kg Heavy Duty CNC Oil Country Lathe for Large Bore Pipe Threading Solutions
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
