Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
3000
Structure :
Flat Bed Lathe
Machining Capacity :
Heavy Duty
Max. Weight of Workpiece(kg) :
5000
Width of bed (mm) :
1000 mm
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
520 mm
Travel (Z Axis)(mm) :
2750 mm
Positioning Accuracy (mm) :
±0.002
Repeatability (X/Y/Z) (mm) :
±0.001
Place of Origin :
Henan, China
Dimension(L*W*H) :
6500*2220*2120
Brand Name :
timeway
Model Number :
QK-440
CNC Control System :
Fanuc/Siemens/GSK
Tool Post Stations :
4
Weight (KG) :
14000
Warranty :
1 Year
Key Selling Points :
High Productivity
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Range of Spindle Speed(r.p.m) :
23 - 260 r.p.m
Travel (Y Axis)(mm) :
3000 mm
Spindle Taper :
ISO40
Cutting torque :
12 N.m
Rapid Feed Speed(mm/min) :
0 - 3000 mm/min
Feed Speed(mm/min) :
0 - 5000 mm/min
Min. Time of Tool Change(s) :
0.7
Product name :
CNC oil country lathe
Machine Type :
Horizontal CNC Lathe
After-sales Service Provided :
1 Year
Control system :
SIEMENS GSK FANUC (optional)
Color :
Customers' Requirement
Model :
QK-440
Max.swing over bed :
1000mm
Spindle Speed Ranges :
23-260rpm
Spindle bore :
440mm
Distance Between Centers :
1500/3000mm
Price :
$68,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

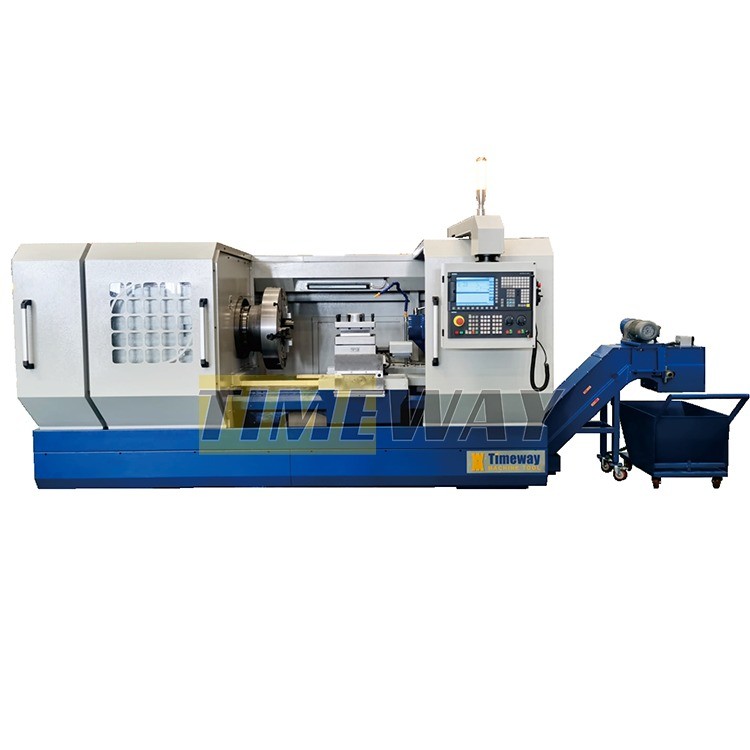

Big Bore CNC Oil Country Pipe Threading Lathe
Pipe threading range Φ270-430mm
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers
Features:
=Adopt high quality cast iron (HT300) one molding casting, bed width (755mm), loading capacity 6000kg. After the second aging treatment, it has the feature of stable performance, good rigidity, anti-vibration ability.
=Spindle is two-point supported by precision heavy load bearing, rotating stability and smoothly.
=Spindle driven by large torque frequency main motor, torque of spindle is big, heavy-powerful cutting.
=Complete with front and rear hollow chuck as standard, according to users’ need different types of manual, electric, pneumatic and hydraulic chuck can be chosen.
=Standard complete with 4-station turret, it is free lifting and index quickly and easily; the vertical 6-station and horizontal 6/8-station and other electric turret can be chosen.
=The X-direction and Z-direction use the precision and grade ball screw, ensured a high processing accuracy, positioning accuracy and repostioning accuracy.
Specification
Specifications
Unit
QK-440
Capacity
Swing over bed
mm
1000
Swing over cross slide
mm
610
Distance between centers
mm
1500/3000
Pipe threading range
mm
270-430
Bed width
mm
755
Max. load capacity
kg
6000
Spindle
Spindle bore
mm
440
Spindle speed steps
steps
stepless (3shifts)
Spindle speed
rpm
8-205
Chuck size
mm
1000
Chuck type (electric)
-
4-jaw
Turret
Turret type (electric)
-
V4
Tool shank size
mm
40x40
Feed
X-axis travel
mm
520
Z-axis travel
mm
1250
X-axis rapid feed speed
mm/min
4000
Z-axis rapid feed speed
mm/min
4000
Tailstock
Tailstock quill diameter
mm
140
Tailstock quill taper
-
MT6
Tailstock quill travel
mm
300
Others
Main motor power
kw
22
Coolant motor power
kw
0.125
Machine dimensions
mm
5000/6500x2200x2200
Machine weight
kg
13000/14000
Detailed Images
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers

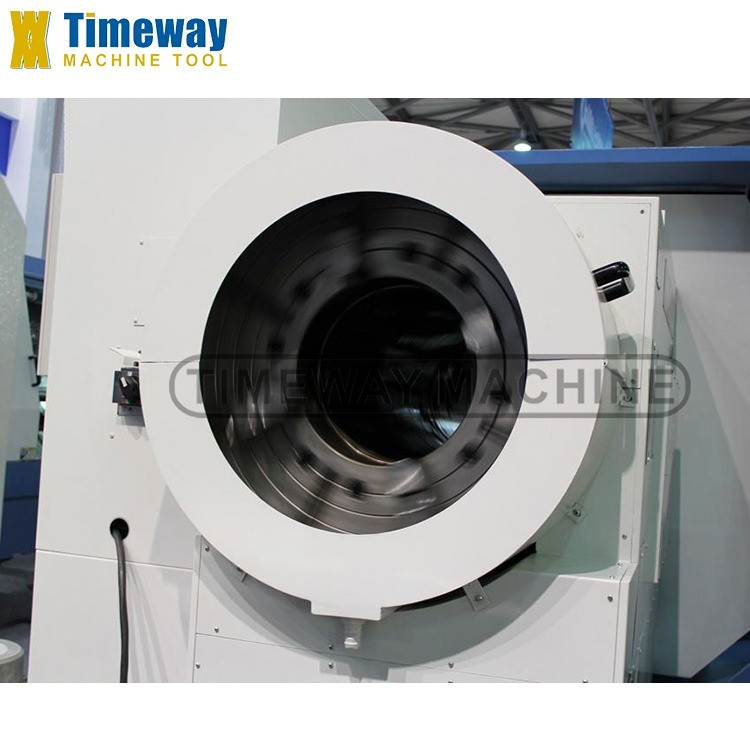

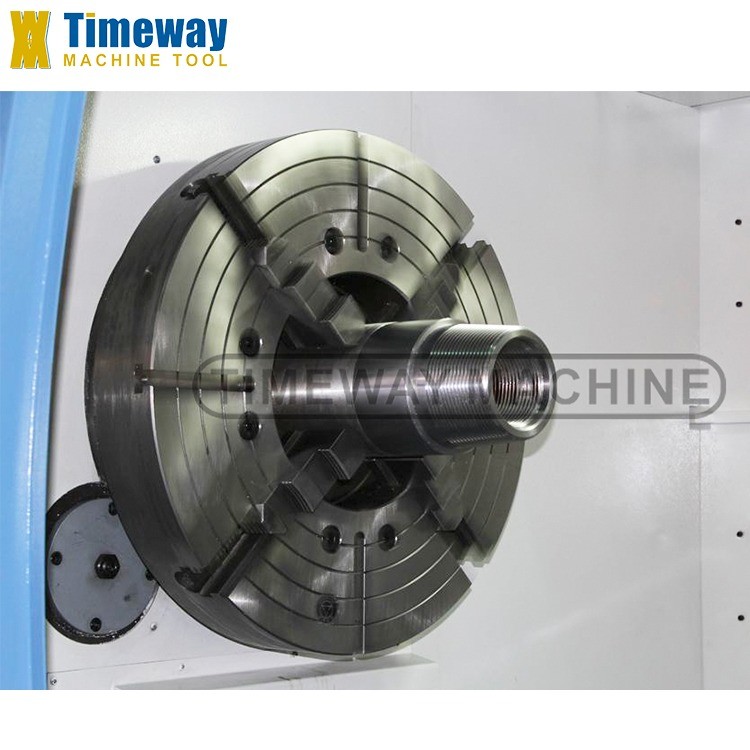

DOUBLE CHUCK

Large spindle hole for different pipes double manual chuck.
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers

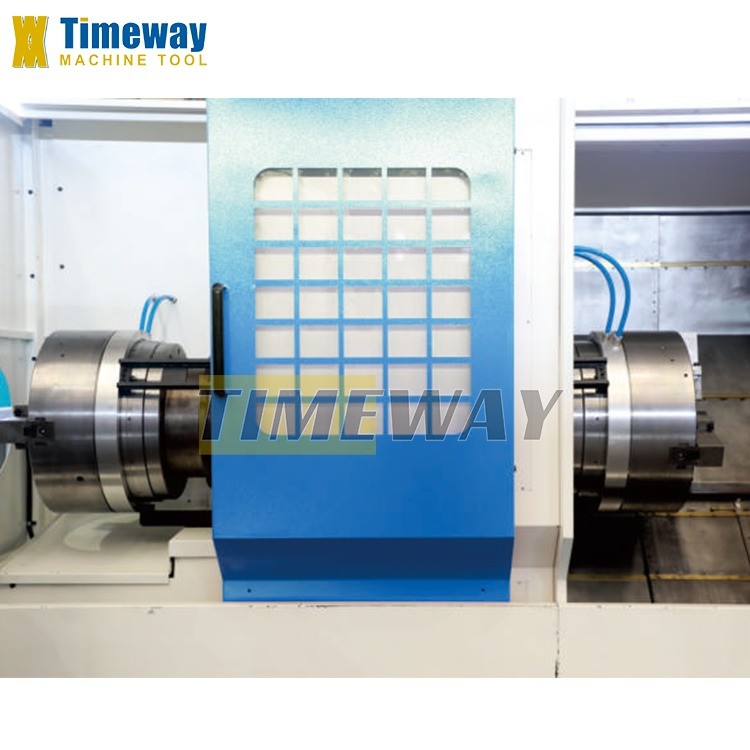

DOUBLE CHUCK

Large spindle hole for different pipes double manual chuck.
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers

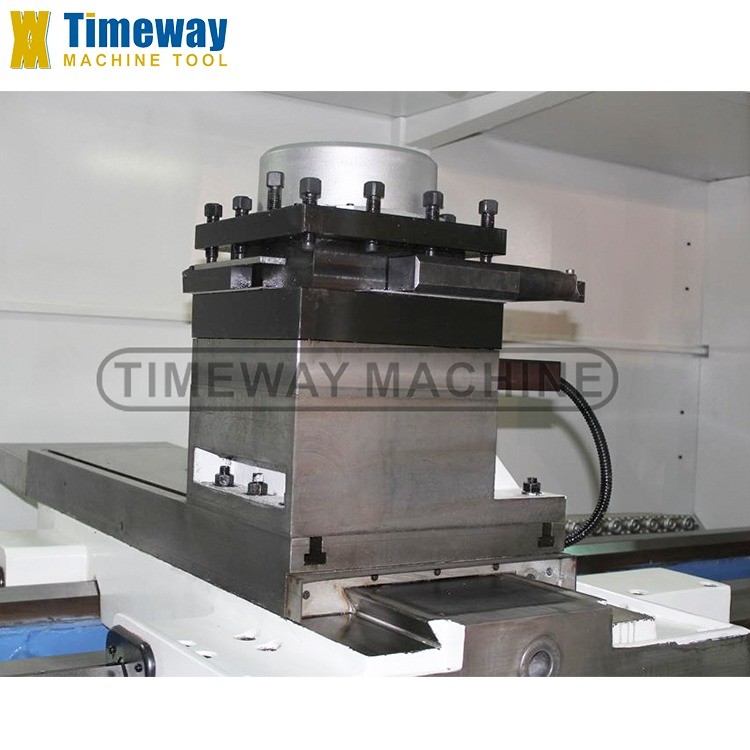

TOOL POST/TURRET

Standard with 4-staion electric toolpost
6/8-station electric turret are optional
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers

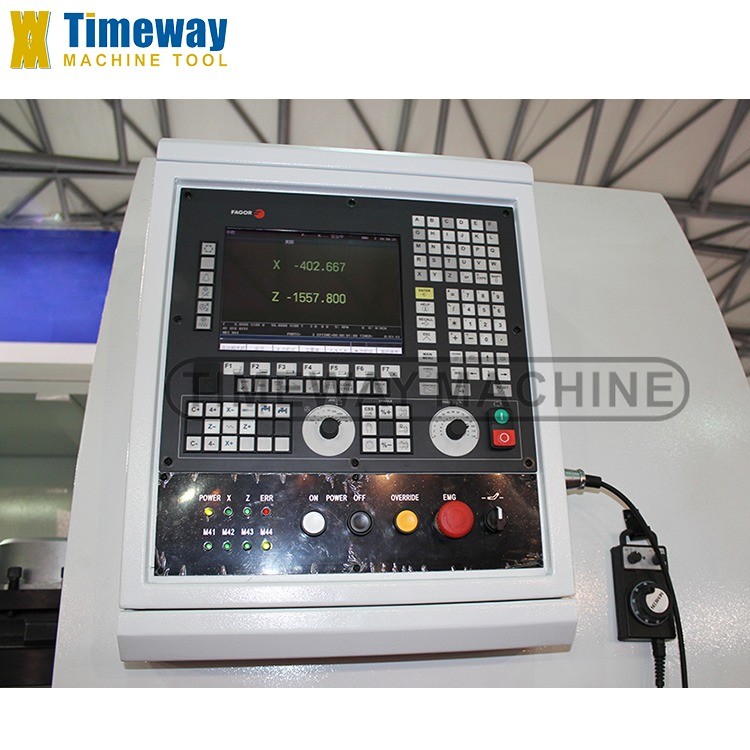

CNC CONTROL SYSTEM

GSK, Siemens,Fanuc,Syntec,Mitsubishi and others.
Accessories

STANDARD ACCESSORIES:

FANUC/GSK/SIEMENS CNC system
Big bore chuck (Front & Rear)
4-station electric tool-post
Work lamp
Pilot lamp
Cooling system
Semi-closed guard
Manual pulse generator (MPG)
Dead centers
Oil gun
Automatic lubrication pump
Manual moving tailstock
Tools & tool-box
Leveling wedge & bolts
Operation manual (English)

OPTIONAL ACCESSORIES:

Penumatic chuck
Other tool-post
Chip conveyor
Air conditioner
Rear support for long pipe
