11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
2500 mm
Structure :
Flat Bed Lathe
Machining Capacity :
Heavy Duty
Width of bed (mm) :
750 mm
Spindle Motor Power(kW) :
11
No. of Spindles :
Twin
Number of Axes :
3
Travel (X Axis)(mm) :
600 mm
Travel (Z Axis)(mm) :
500 mm
Positioning Accuracy (mm) :
0.02 mm
Repeatability (X/Y/Z) (mm) :
±0.001
Place of Origin :
China
Dimension(L*W*H) :
4300x1750x1800mm
Brand Name :
Timac TIMEWAY
Model Number :
RPK-500CJ
Voltage :
as requirement
CNC Control System :
FANUC
Tool Post Stations :
None
Weight (KG) :
5980
Warranty :
1 Year, 1year
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Automatic Grade :
Automatic
After-sales Service Provided :
Engineers available to service machinery overseas
CNC Roll Processing Machine :
CNC ROLL NOTCHING & ENGRAVING LATHE
Certification :
ISO9001:2008, CE
Max. Swing Diameter (mm) :
500
Max. Length of work piece :
2500mm
Machine Type :
Cnc Machine Lathe
Function :
Turning Lathe
Condition :
New
Spindle Bore(mm) :
Other
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant
Showroom Location :
France, Brazil, Peru, Mexico, Russia, Chile, Algeria, South Africa, CAMEROUN
Marketing Type :
Other
Core Components :
Bearing, Motor, Gear, PLC, Other, Gearbox
Max. Spindle Speed (r.p.m) :
2850 r.p.m
Max. Turned Length (mm) :
2500
Packaging Details :
Material: Wooden case (fumigated);
Packing numbers: 2pcs
Packing size(LxWxH): 4300x1750x1800mm+1000x800x1800mm
Port :
China port
Supply Ability :
500 Set/Sets per Year
Price :
$100,000.00/sets >=1 sets
MOQ :
1 set
Description
Products Description
CNC metal engraving machinery

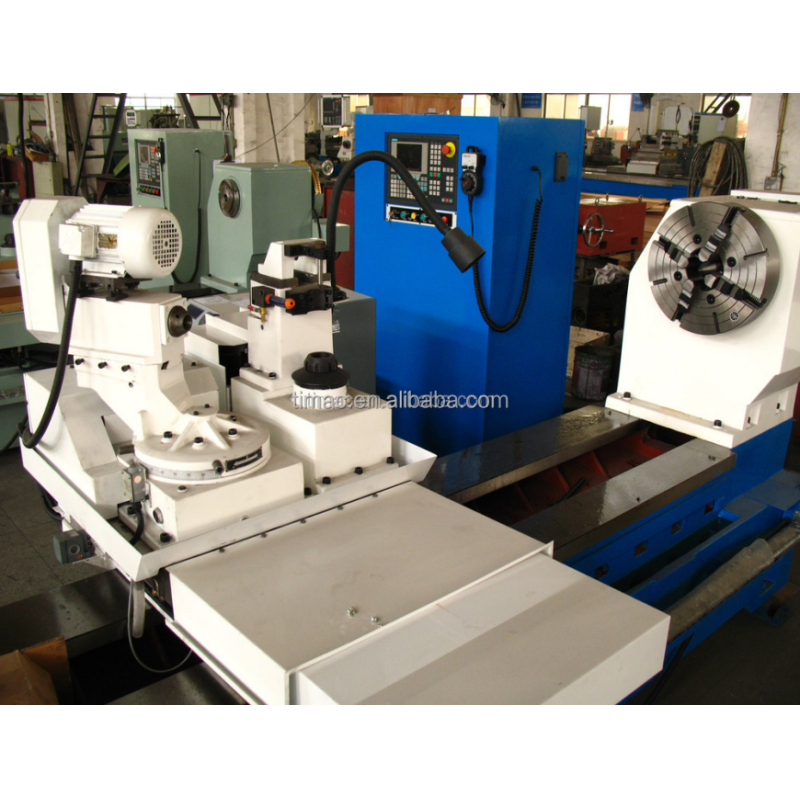

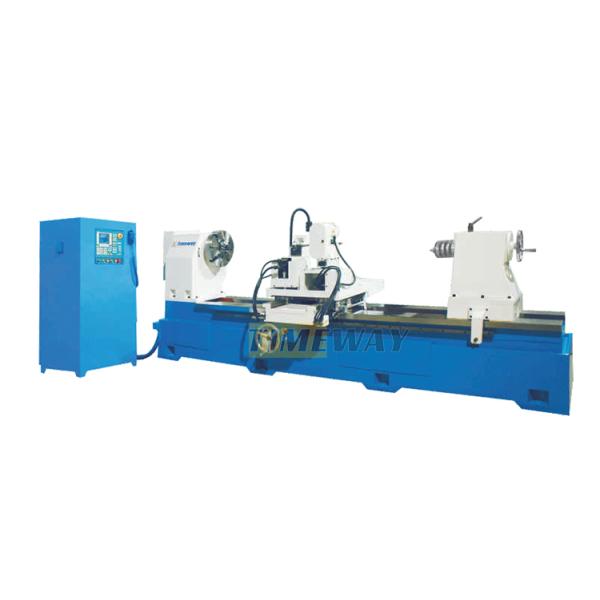

RPK-500CJ is a professional multi-Function CNC Roll Processing Machine used for machining ribs (notching) and engraving letter & logo on roll.

It’s equipped with famous brand SIEMENS Sinumerik802C CNC controller& YASKAWA servomotors.

SIEMENS Sinumerik 802C guarantees the advance function & stable quality for CNC and it offers 4-axes controls and 3 axis simultaneous movement.
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
Specificaion
Unit
RPK-500CJ
Max. Diameter of work piece
mm
Ø500
Max. Length of work piece
mm
2500
Suitable thread specification
mm
10-40
Max. Spindle speed of flyer cutting milling head:
rpm
550
Max. Spindle speed of swivel milling head:
rpm
2850
Spindle bore of headstock:
MT#5
Headstock chuck (4 jaw chuck)
400
400
Main power of swivel head
kw
1.1(380v)
CNC control system
SIEMENS Sinumerik802C
CNC control system power
220v/50hz
Net weight (machine + electrical cabinet)
5200+ 220
Gross weight (machine + electrical cabinet)
kg
5700 + 280
Packing size (machine unit) (LxWxH)
mm
4300x1750x1800
Packing size (Electrical cabinet) (LxWxH)
mm
1000x800x1800
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
Client feedback
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
Factory Display：
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
