2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight
2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight
2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight
2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight
2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight
2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight
2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight
2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight
2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight
2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight
2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight
2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
3000
Structure :
Slant Bed Lathe
Machining Capacity :
Heavy Duty
Max. Weight of Workpiece(kg) :
550
Width of bed (mm) :
550 mm
Spindle Motor Power(kW) :
7.5
No. of Spindles :
Twin
Number of Axes :
2
Travel (X Axis)(mm) :
2750 mm
Travel (Z Axis)(mm) :
320 mm
Place of Origin :
China
Dimension(L*W*H) :
5157x1360x1555mm
Brand Name :
TIMAC
Voltage :
380v 50hz
CNC Control System :
Siemens
Tool Post Stations :
12
Weight (KG) :
5050
Warranty :
1 Year
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max. workpiece length :
3000mm
Clamped pipe diameter :
50-193mm
Spindle bore diameter :
200mm
Spindle speed range :
30-300rpm(stepless)
Bed width :
550mm
Chuck :
Manual 3 jaw chuck(standard)
CNC system :
FANUC 0i-mate TD
Max. Swing Diameter :
630mm
Weight :
5050kg
Power :
7.5/11kw(main motor)
Condition :
New
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
Showroom Location :
United States, Italy, France, Saudi Arabia, Pakistan, Argentina, South Africa, Australia
Marketing Type :
New Product 2020
Core Components :
Bearing, Motor, Pump, Gear
Max. Turned Length (mm) :
3000
Year :
2022
Max. Spindle Speed (r.p.m) :
300 r.p.m
Spindle Bore(mm) :
200
Packaging Details :
Standard Package
Port :
China Port
Supply Ability :
500 Set/Sets per Year
Price :
$100,000.00/sets 1-2 sets
MOQ :
1 set
Description

CNC Tube Threading Lathe

QK-190A QK-360A QK-510A

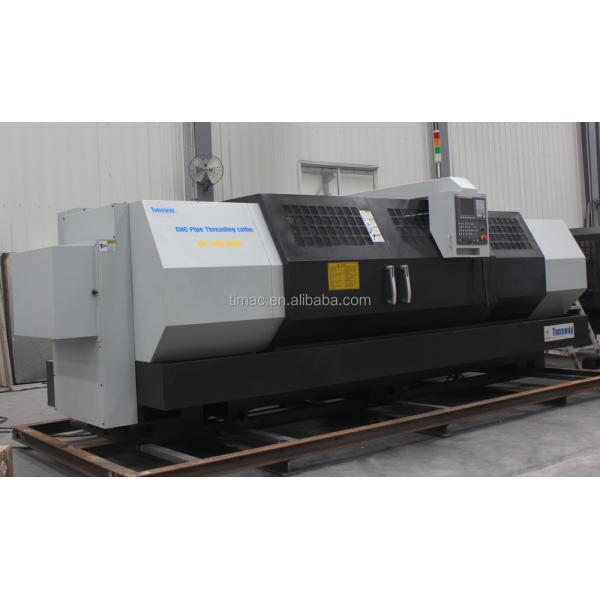

Main Outlook

2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight

Product Description

Features:

  • The machine is developed for oil pipe threading turning, and suitable for all kinds of pipe thread turning.
  • It is full-closed loop control system CNC pipe threading lathe, also can be used as ordinary CNC lathe.
  • It is suitable for processing complex shape of shaft, set, the dish parts, such as turning internal and external cylindrical face, internal and external cone face, circular arc surface, end face, cutting and corner, turning thread etc.
  • Strong adaptability and high processing efficiency, low scrap rate, finished good consistency, can reduce to requirements of skilled workers.
  • Electronic hand-wheel at the control panel for manual operation ensure easy, quick setup of new workpieces and tools.
  • High-torque drives and preloaded ball screws on all axes.
  • Including high-preformance coolant system, and central lubrication unit, and chain-type chip conveyor.
  • According to customer's requirement, we provide 4-jaw self-centering chuck and horizontal 6-station tool-post, but standard equipment is 3-jaw chuck and vertical 4-station tool-post.

2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight 2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight 2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight

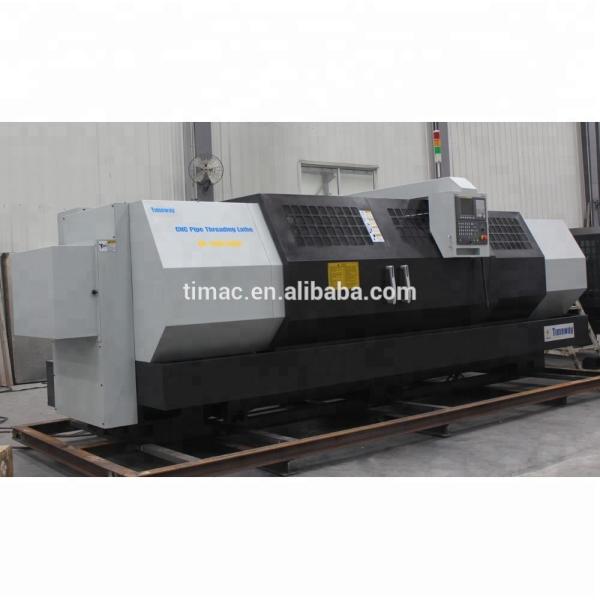

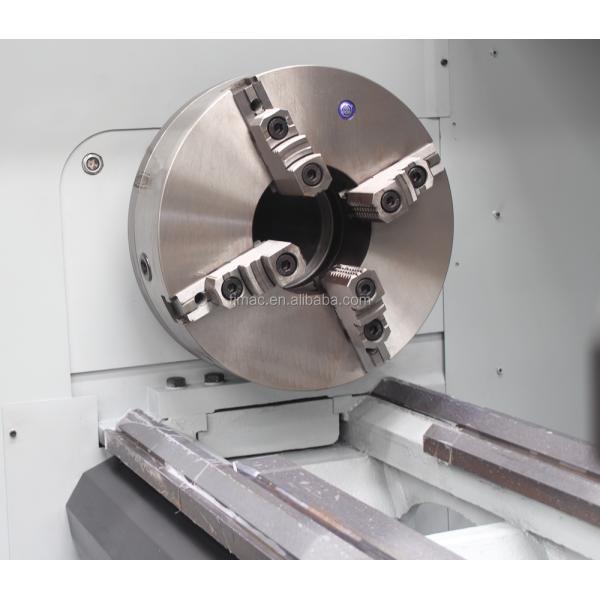

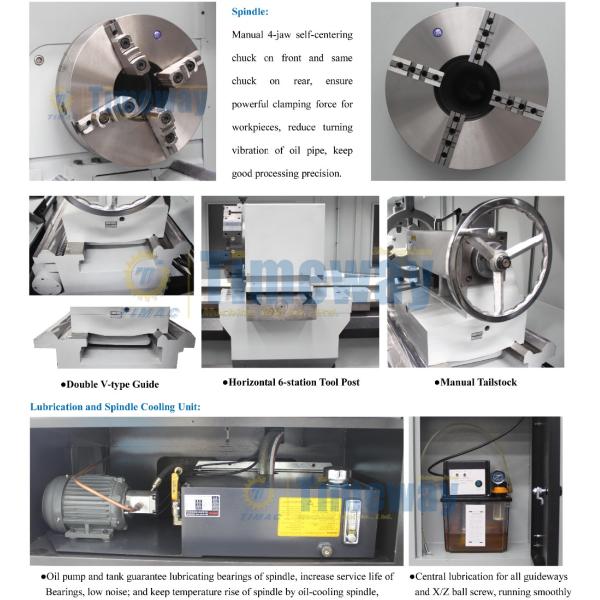

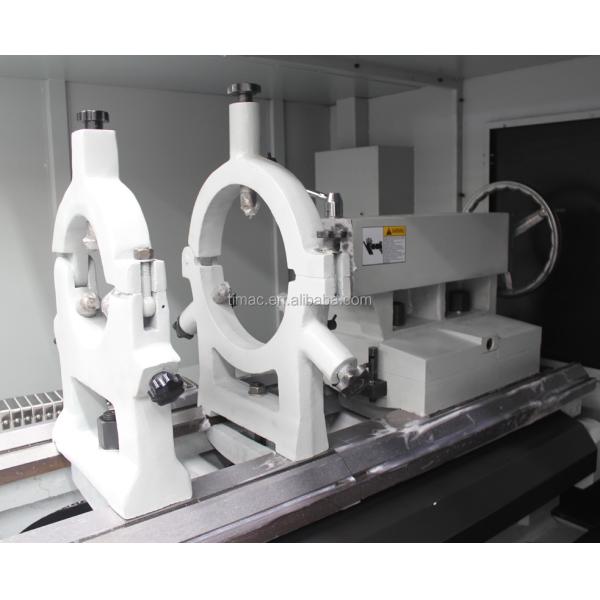

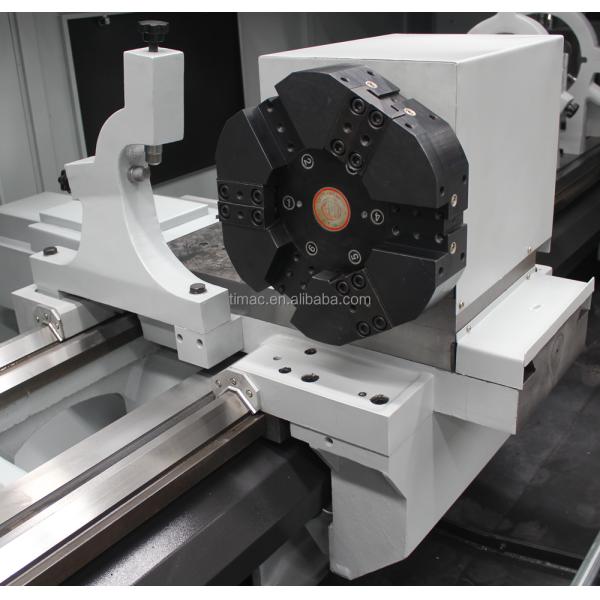

•Servo-motor Direct-drive Spindle •Carriage with 6-station Tool-post •Manual Tailstock and Steady Rest

Technical Parameters:

Specification

Unit

QK-190A

QK-360A

QK-510A

Max. Swing over bed

mm

Φ630

Φ1000

Φ1200

Max. Swing over carriage

mm

Φ340

Φ610

Φ710

Distance between two centers

mm

3000

3000

3000

Width of bed

mm

550

755

755

Guideway type

-

Double V type (As client’s request)

Diameter of spindle inner hole

mm

Φ200

Φ390

Φ520

Max. Clamped pipe diameter

mm

Φ50-193

Φ190-380

Φ330-510

Chuck type

mm

Manual 3 jaw

Manual 4 jaw

Manual 4 jaw

Steps of spindle speed

step

2

3

3

Range of spindle speed

r.p.m

30- 300 (stepless)

10- 200 (stepless)

10- 200 (stepless)

Feed increment and pitch range

mm

0.001-40

0.001-40

0.001-40

Max. travel of X/Z-axis

mm

X:320/520; Z:2750

X:500; Z:2750

X:500; Z:2750

Rapid speed of X/Z-axis

mm/min

4000

4000

4000

X/Z-axis feed servo motor power

kw/N.m

X: 1.5/10; Z: 2.3/15

X: 2.3/15; Z: 4.7/30

X: 2.3/15; Z: 4.7/30

Number of tools

-

4 Electro

4 Electro

4 Electro

Tool section ( H×W )

mm

32×32

40×40

40×40

Diameter of tailstock sleeve

mm

Φ100

Φ140

Φ140

Travel of tailstock sleeve

mm

205

300

300

Taper of tailstock sleeve

-

MT5

MT6

MT6

Main motor power (Inverter)

kw

7.5/11

22

37

Coolant pump

kw

0.125

0.15

0.15

CNC system

-

FANUC 0i-mate TD controller

Overall dimensions ( L×W× H)

mm

5157×1360×1555

5157×2200×1520

6100 × 2200 × 1750

Machine weight

kg

5050

12000

15000


Notes: Manual 4-jaw chuck is optional, standard equipment is 3-jaw self-centering chuck; Spindle(servo motor) speed range 30-500rpm(stepless) can be available.

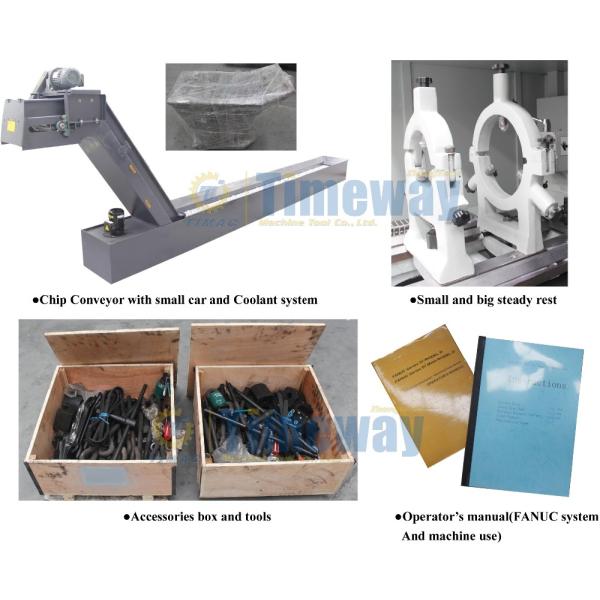

Standard Accessories:

  • FANUC 0i-mate TD CNC system
  • Vertical 4-station tool post
  • Manual 3-jaw self-centering chuck
  • Steady rest
  • Chip covenyor and small car
  • Coolant system
  • Central lubricating system
  • Electronic hand-wheel
  • Working lamp
  • Tri-color light
  • Manual tailstock
  • Full-enclosed protection
  • Mat iron and bolt
  • Oil pot
  • Tool box and tools
  • Operator manual
  • Programming instructions

 2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight

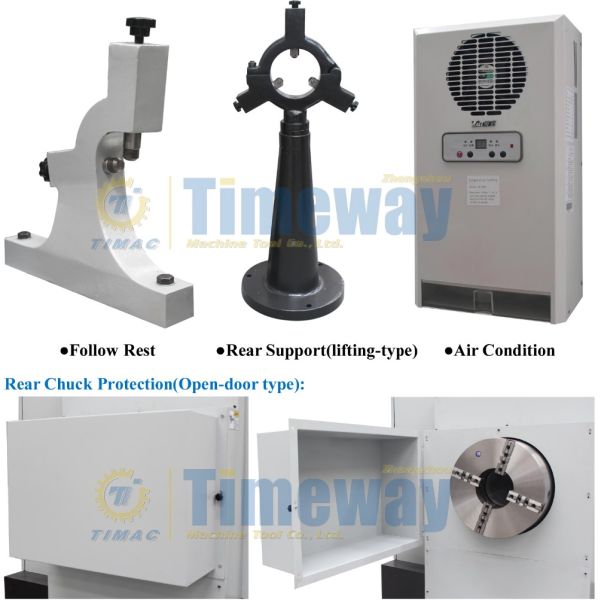

Optional Accessories:

  • SIEMENS CNC system or others
  • Double V-type guide(Z-axis)
  • Follow rest
  • Rear support(lifting-type)
  • Air condition
  • Horizontal 6-station tool-post
  • Manual 4-jaw indenpendent chuck
  • Full-enclosed guard of rear chuck
  • X-axis ball screw
  • Manual 4-jaw self-centering chuck

 2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight
Detailed Images

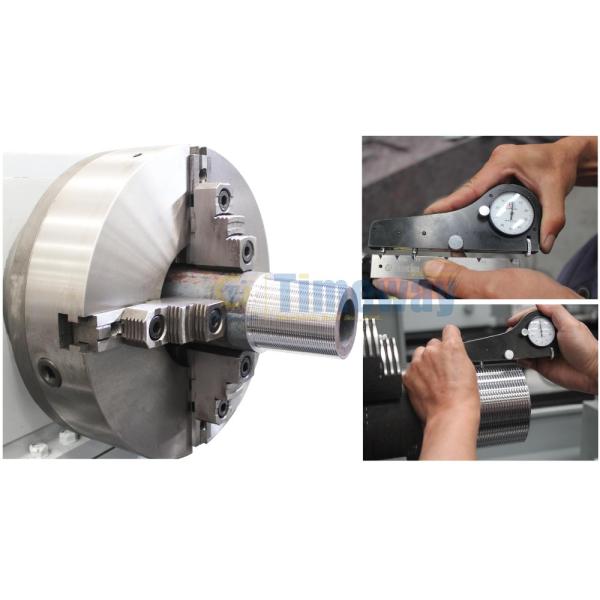

Actual Working Precision:

•Fine turning outside taper pipe thread(Taper: 1:16, Thread pitch: 3.175), meet accumulative error of pitch to 0.035/25.4mm. By precision special measuring instrument for thread. To the machine, can process the high-quality workpieces that customer need through our actual processing and measuring repeatedly.

2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight

The Way of Keeping High Precision of Machining Workpiece:(As Follow)

To improve the accuracy of the overall machine tool, we design a new guide on the Z-axis that double V-type guide keep better machining accuracy. So according to your need, the guide can be available.

2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight

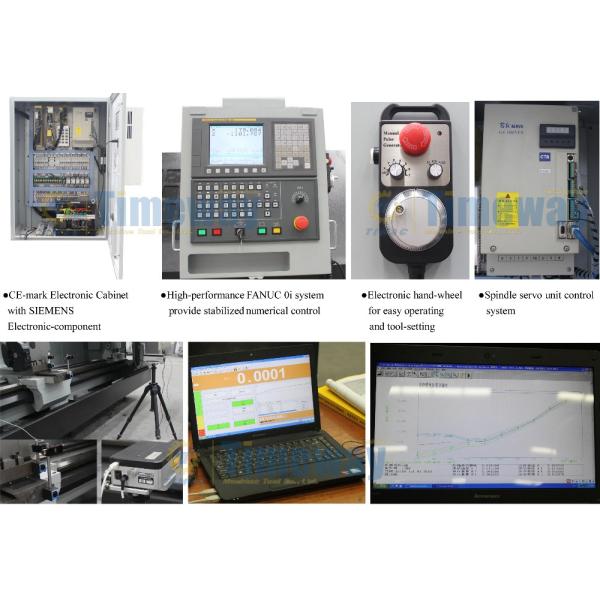

Electronic Unit and RENISHAW Laser Interferometer:

2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight

•Famous brand Renishaw laser interferometer not only can measuring X/Z-axis positioning accuracy and repositioning accuracy and back lash, but also can segmented pitch compensation on the X/Z-axis. Thus improving once- again the overall accuracy of machine tool and machining accuracy, and the accuacy of machining thread.

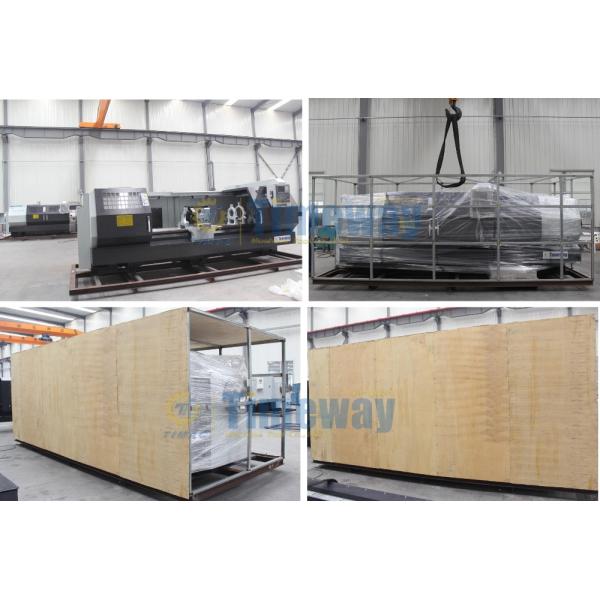

Standard Packaging of Machine Tool:

Box-iron pallet and integrated framework with square steel tube, around the woodiness plywood encapsulation. Rain-proof on the top of packaging.
