330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
Specifications
Max. Length of Workpiece (mm) :
1500
Range of Spindle Speed(r.p.m) :
7.5 - 280 r.p.m
Machining Capacity :
Heavy Duty
Type :
Horizontal
Spindle Motor Power(kW) :
22
Place of Origin :
China
Brand Name :
Timac
Model Number :
Q-330x1500mm
Voltage :
380v
Dimension(L*W*H) :
5000x2100x1630mm
Weight (KG) :
11500 KG
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Swing over bed :
1000mm
Swing over cross slide :
610mm
Distance between centers :
1500/3000mm
Pipe threading range :
190-320mm
Bed width :
755mm
X-axis travel :
520mm
Z-axis travel :
1300/2800mm
Max. loading capacity :
5000
Spindle bore :
330mm
Spindle speed steps :
9
Condition :
New
Applicable Industries :
Home Use, Retail, Construction works
Showroom Location :
Canada, Russia
Core Components :
Bearing, Pump
Spindle Bore(mm) :
330
Max. Turned Length (mm) :
3000 mm
Year :
2019
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$65,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

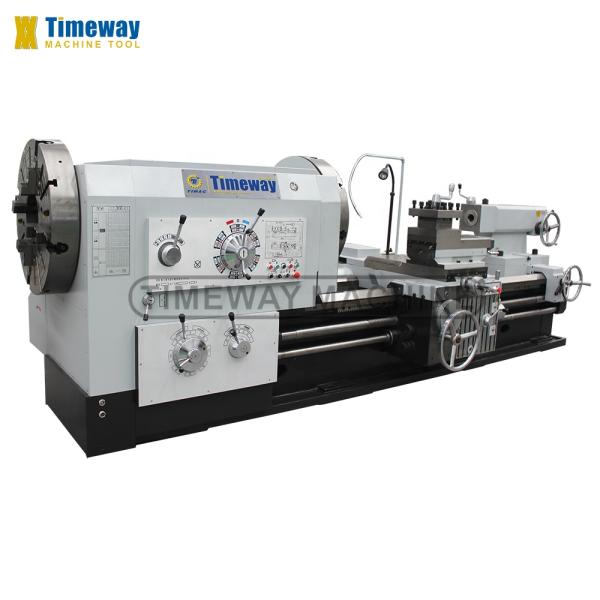

Oil Country Lathe Q-330
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency

Features

• The oil country lathes are used for turning pipe threads, inside and outside.
• They can be used to make external circles, holes and end surfaces of shafts or discs as general machine tools.
• Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck mounts on both sides
• High torque at the working spindle ensures high chip removal rates when machining parts with large diameters.
• Heavy machine bed made of premium cast-iron with hardened and ground guideways.
• Central, practical controls for feeds and thread leads.
• Wide spectrum of inch and metric threads.
• Gears are hardened and ground.
• Heavy-duty 4-station tool holder.
• Coolant system is included.
Specification
Specification
Unit
Q-330
Swing over bed
mm
1000
Swing over cross slide
mm
610
Distance between centers
mm
1500/3000
Pipe threading range
mm
190-320
Bed width
mm
755
X-axis travel
mm
520
Z-axis travel
mm
1300/2800
Max. loading capacity
kg
5000
Spindle bore
mm
330
Spindle speed steps
steps
9
Accessories

Standard accessories:

* 4 - jaw independent chuck, 2 sets
* Taper turning device, 1 set
* Out board support, 1 piece
* Manual moving tailstock
* Chuck & tool post guard
* Coolant system, Halogen light
* Maintenance tool & tool box
* Operation manual in English
Packing & Delivery
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Company Profile
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
This is a picture of clients visiting our company when we hold exhibitions around the world.
Certifications
330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
