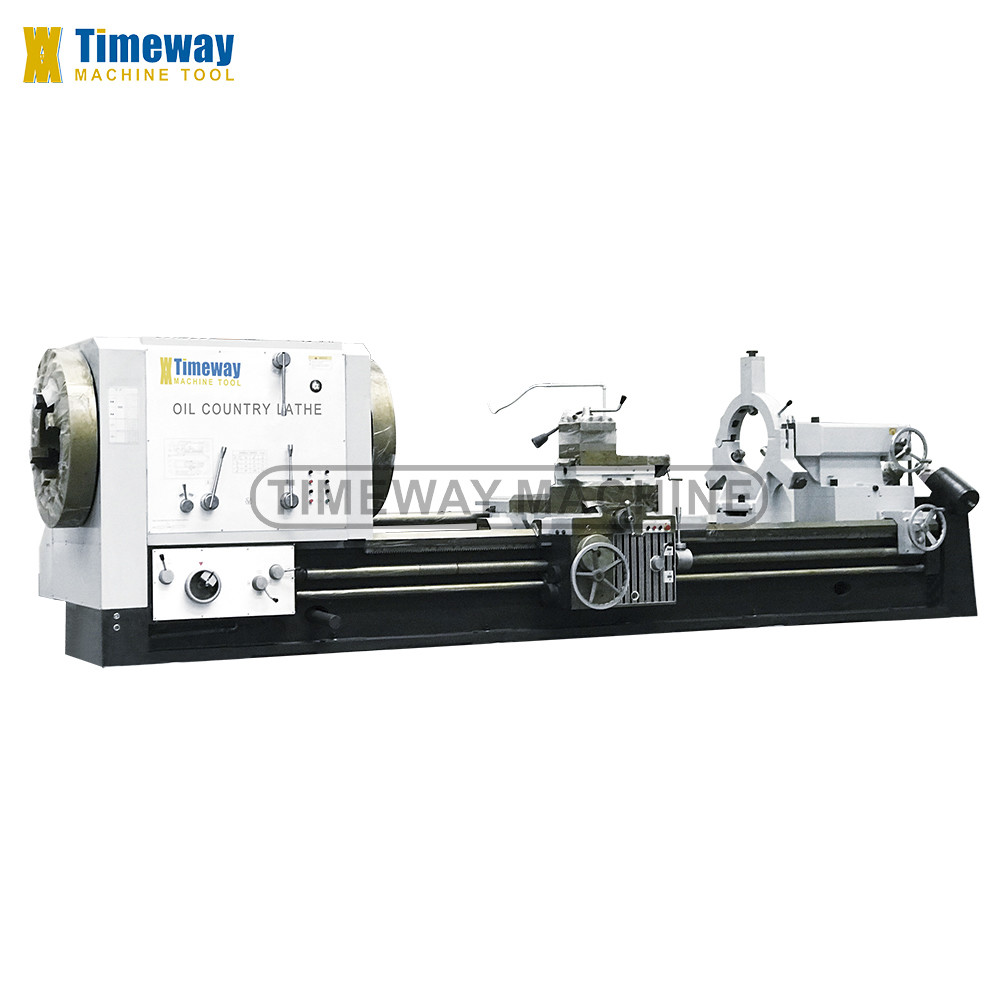

1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
Specifications
Max. Length of Workpiece (mm) :
1500
Range of Spindle Speed(r.p.m) :
4.9 - 180 r.p.m
Machining Capacity :
Heavy Duty
Width of bed (mm) :
755
Type :
Horizontal
Spindle Motor Power(kW) :
22
Place of Origin :
China
Model Number :
Q-520
Dimension(L*W*H) :
5000x2100x1800
Weight (KG) :
15000 KG
Warranty :
1 Year
Key Selling Points :
High-accuracy
Marketing Type :
Hot Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product Name :
Manual Metal Lathe Machine
Keyword :
Universal Metal Lathe
After-sales Service Provided :
Online Services
spindle bore :
520mm
max. swing over bed :
1200mm
loading capacity :
6000kg
Usage :
Metal Processing Lathe Machine
Certification :
CE
Precision :
High Precision Lathe
Distance between centers :
1500mm
Condition :
New
Showroom Location :
Italy
Spindle Bore(mm) :
520
Max. Turned Length (mm) :
1500 mm
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other
Core Components :
Other
Price :
$25,666.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
Specification
Specificayions
unit
Q-520
Max. swing over bed
mm
1200
Max. swing over cross slide
mm
710
Distance between centers
mm
1500/3000
Pipe threading range
mm
330-510
Bed width
mm
755
X-axis travel
mm
520
Z-axis travel
mm
1350/2850
Max. load capacity
kg
6000
Spindle bore
mm
520
Spindle speed steps
steps
9
Spindle speed
rpm
4.9-180
Chuck size
mm
1000

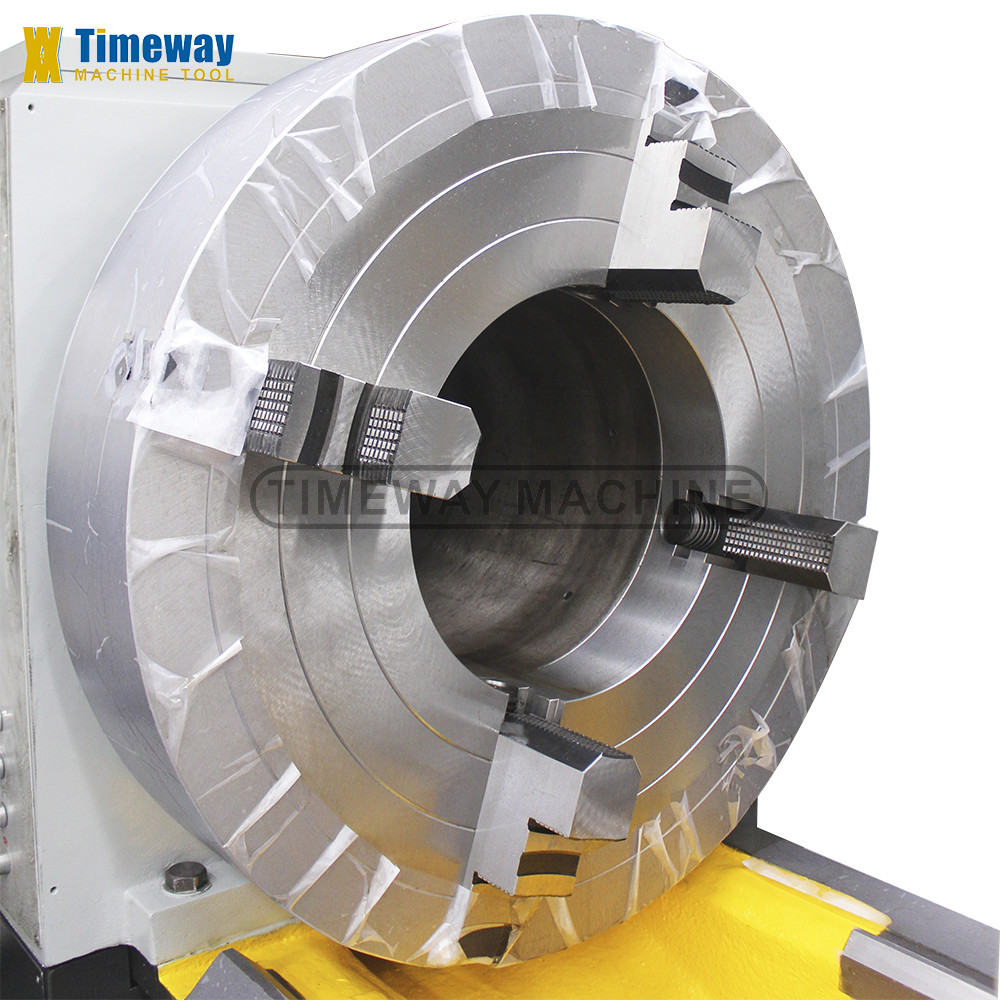

Chuck type
-
4-jaw electric
Turret type (manual)
-
V4
Tool shank size
mm
45x45
X-axis feed range (steps)
mm/r
0.05-0.75 (32)
X-axis rapid feed speed
mm/min
1870
Z-axis feed range (steps)
mm/r
0.1-1.5 (32)
Z-axis rapid feed speed
mm/min
3740
No. of Metric thread and range
mm
1-15 (23)
No. of Inch thread and range
TPI
2-28 (22)
Tailstock quill diameter
mm
160
Tailstock quill taper
-
MT6
Tailstock quill travel
mm
300
Main motor power
kw
22
Rapid motor power
kw
1.5
Coolant motor power
kw
0.125
Machine dimensions (LxWxH)
mm
5000/6500x2100x1800
Machine weight
kg
15000/16500

STANDARD ACCESSORIES:

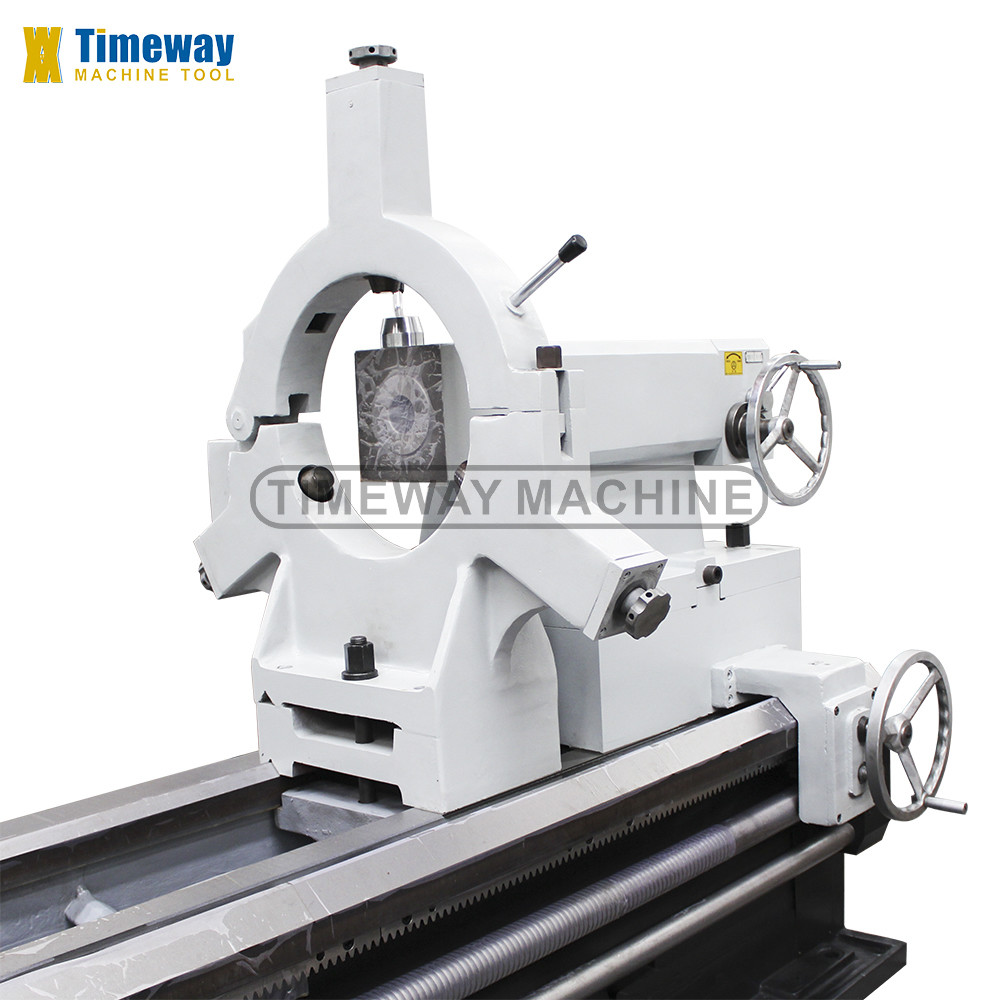

Electric chuck, Follow rest, Dead center, 4-station tool post, Taper turning attachment, Cooling system, Work lamp, General tools, Leveling wedge and bolts, Operation manual (English).

OPTIONAL ACCESSORIES:

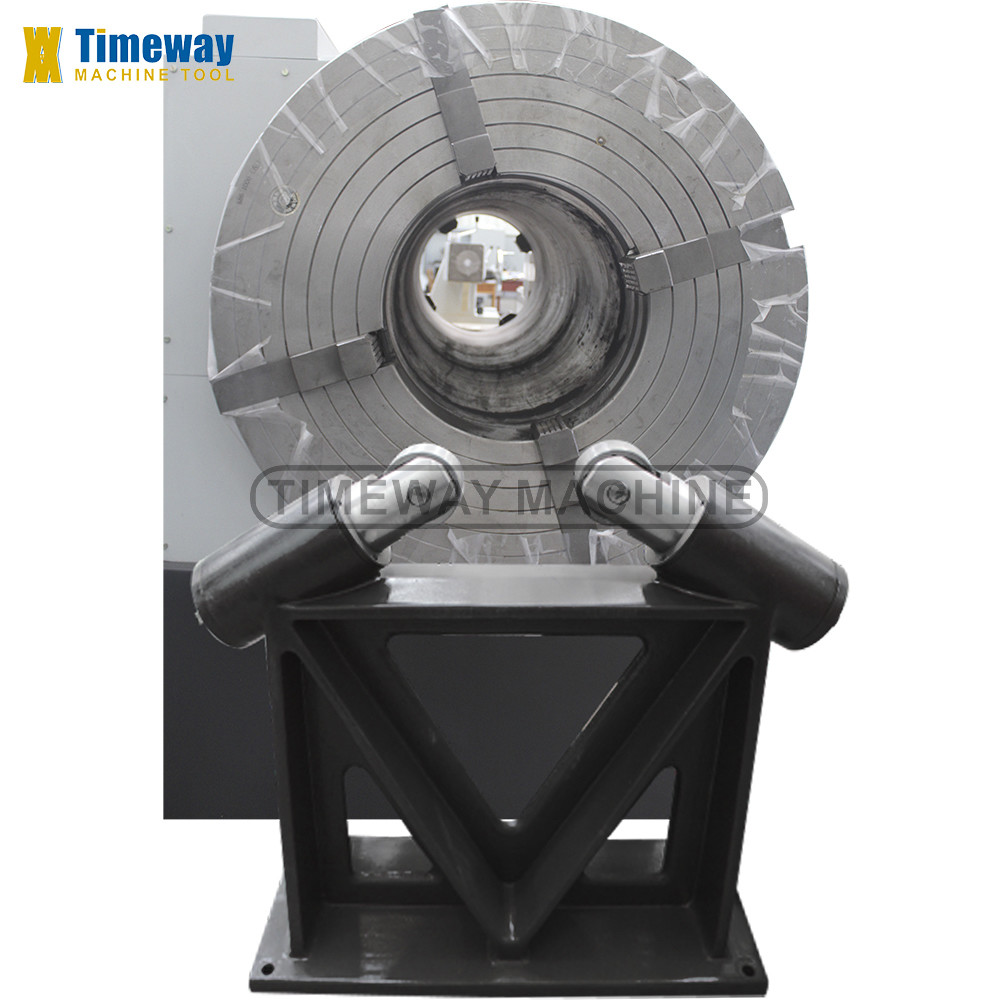

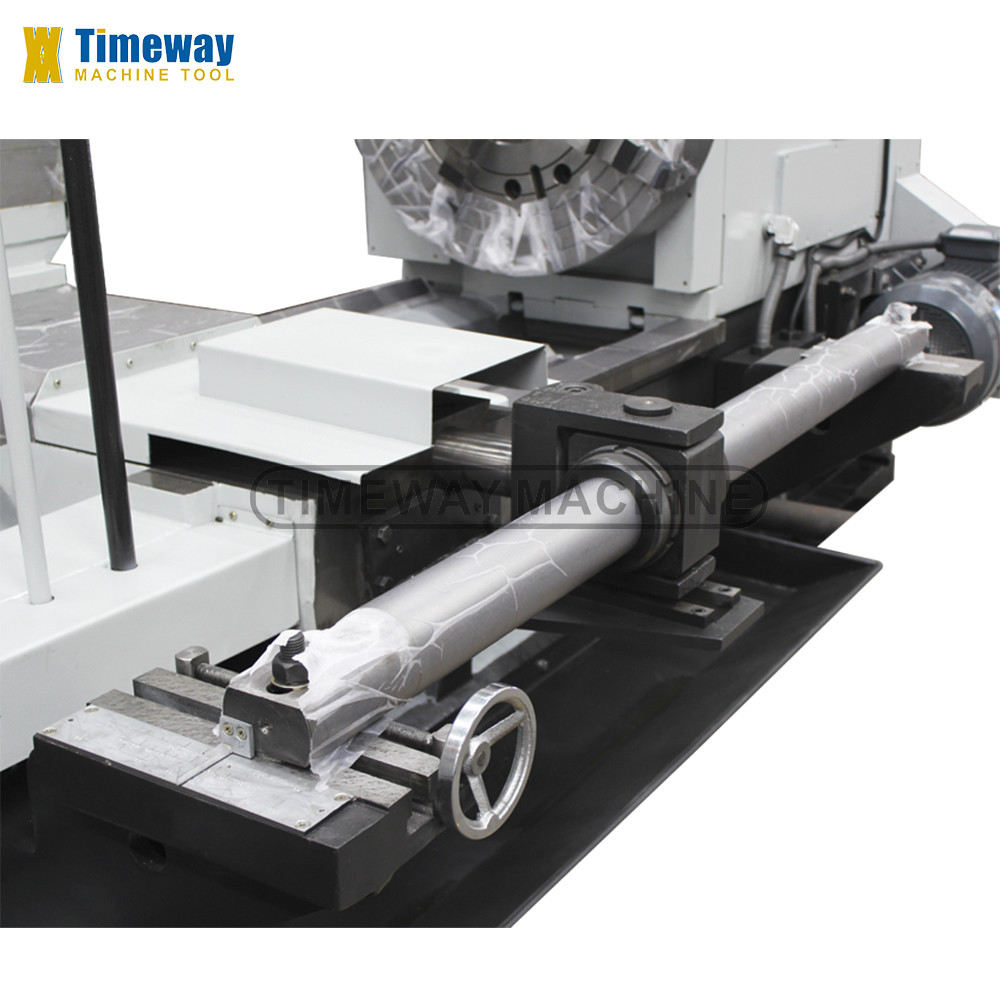

2 or 3-axis digital indicator, Chuck guard, Tool-post guard, Rear support for long pipe.
One-Stop Shopping
You can click on the picture to view the products you are interested in
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
Factory Display：
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
