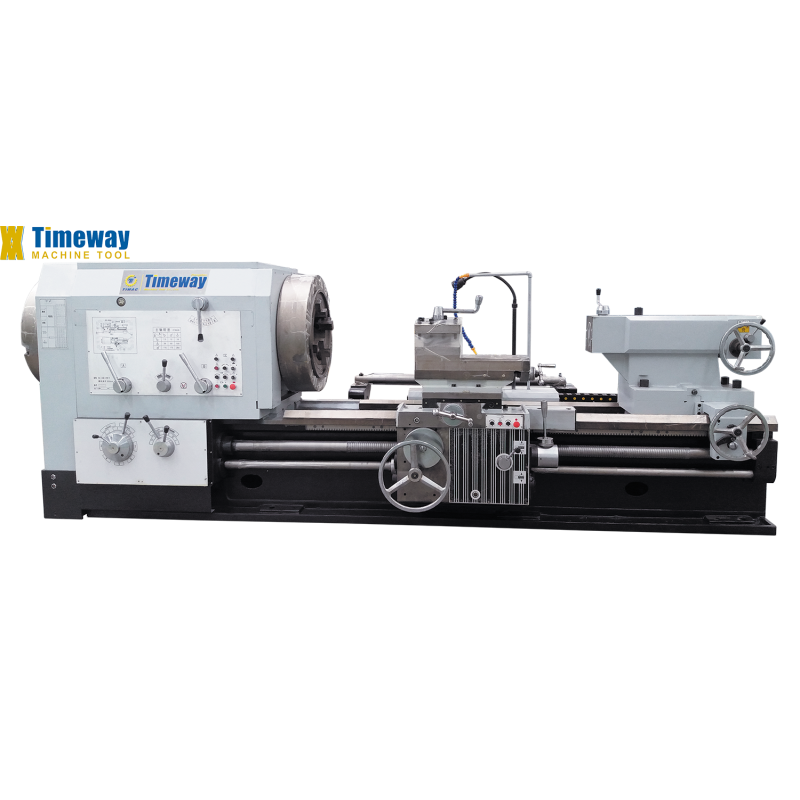

Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Specifications
Max. Length of Workpiece (mm) :
3000
Range of Spindle Speed(r.p.m) :
7.5 - 280 r.p.m
Machining Capacity :
Medium Duty
Type :
Horizontal
Spindle Motor Power(kW) :
22
Place of Origin :
Henan, China
Brand Name :
Timeway
Model Number :
Q-330
Weight (KG) :
13000 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max. swing over bed :
1000 mm
Max. swing over cross slide :
610 mm
Distance between centers :
1500/3000 mm
Pipe threading range :
190-320 mm
Bed width :
755 mm
X-axis travel :
520 mm
Z-axis travel :
1350/2850 mm
Max. load capacity :
6000 mm
Spindle bore :
330 mm
Spindle speed steps :
9 steps
Condition :
New
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other
Showroom Location :
Turkey, Germany, Indonesia, Thailand
Core Components :
Bearing, Gear, Motor, Engine
Spindle Bore(mm) :
330
Max. Turned Length (mm) :
320 mm
Year :
2024
Price :
$51,000.00/sets 1-4 sets
MOQ :
1 set
Description
Product Description
The lathe is mainly used in oil field, suitable for processing and repairing drill pipe, drill collar, coupling, casing, and so on. At the same time suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face.
Equipped with front and rear electric 4-jaw chuck (780mm/850mm), motorized clamping workpieces.
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Specification
Specifications
Q-330
Max. swing over bed
1000 mm
Max. swing over cross slide
610 mm
Distance between centers
1500/3000 mm
Pipe threading range
190-320 mm
Bed width
755 mm
X-axis travel
520 mm
Z-axis travel
1350/2850 mm
Max. load capacity
6000 mm
Spindle bore
330 mm
Spindle speed steps
9 steps
Spindle speed
7.5-280 rpm
Chuck size
780 mm
Chuck type
4-jaw electric
Turret type (manual)
V4
Tool shank size
45x45 mm
X-axis feed range(steps)
0.05-0.75(32) mm/r
X-axis rapid feed
1870 mm/min
Z-axis feed range(steps)
0.1-1.5(32) mm/r
Z-axis rapid feed
3740 mm/min
No. of Metric thread and range
1-15(23) mm
No. of Inch thread and range
2-28(22) TPI
Tailstock quill diameter
140 mm
Tailstock quill taper
MT6
Tailstock quill travel
300 mm
Main motor power
22 kw
Rapid motor power
1.5 kw
Coolant motor power
0.125 kw
Machine dimensions (LxWxH)
4900/6400x2100x1650 mm
Machine weight
11500/13000 kg
Packing & Delivery
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Factory Display：
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
