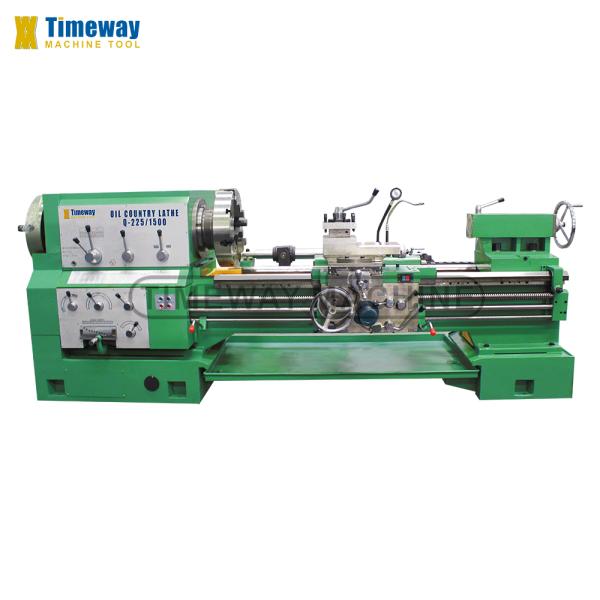

220mm Bed Width Oil Country Big Bore Lathe for Metal Q-225 Pipe Thread Horizontal Lathe
220mm Bed Width Oil Country Big Bore Lathe for Metal Q-225 Pipe Thread Horizontal Lathe
220mm Bed Width Oil Country Big Bore Lathe for Metal Q-225 Pipe Thread Horizontal Lathe
220mm Bed Width Oil Country Big Bore Lathe for Metal Q-225 Pipe Thread Horizontal Lathe
220mm Bed Width Oil Country Big Bore Lathe for Metal Q-225 Pipe Thread Horizontal Lathe
220mm Bed Width Oil Country Big Bore Lathe for Metal Q-225 Pipe Thread Horizontal Lathe
220mm Bed Width Oil Country Big Bore Lathe for Metal Q-225 Pipe Thread Horizontal Lathe
220mm Bed Width Oil Country Big Bore Lathe for Metal Q-225 Pipe Thread Horizontal Lathe
220mm Bed Width Oil Country Big Bore Lathe for Metal Q-225 Pipe Thread Horizontal Lathe
220mm Bed Width Oil Country Big Bore Lathe for Metal Q-225 Pipe Thread Horizontal Lathe
220mm Bed Width Oil Country Big Bore Lathe for Metal Q-225 Pipe Thread Horizontal Lathe
220mm Bed Width Oil Country Big Bore Lathe for Metal Q-225 Pipe Thread Horizontal Lathe
Specifications
Max. Length of Workpiece (mm) :
1350
Range of Spindle Speed(r.p.m) :
20 - 480 r.p.m
Machining Capacity :
Medium Duty
Width of bed (mm) :
220
Type :
Horizontal
Place of Origin :
China
Model Number :
Q-225
Dimension(L*W*H) :
3700x1650x155
Weight (KG) :
4500 KG
Warranty :
1 Year
Key Selling Points :
High Rigidity
Marketing Type :
Hot Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max. Weight of Workpiece(kg) :
3000
Spindle Taper :
Other
Cutting torque :
266 N.m
Rapid Feed Speed(mm/min) :
2300 - 4000 mm/min
Feed Speed(mm/min) :
2000 - 2600 mm/min
Tool Post Stations :
4
Machine Type :
Horizontal Metal Turning Lathe Machine
Product Name :
Manual Metal Lathe Machine
After-sales Service Provided :
Online Support
Precision :
High Precision High Accuracy
Processing :
Metal Workpiece
CNC or Not :
Nomal
Max. swing over bed :
630mm
Certification :
CE
Spindle speed :
20-480
Motor power :
11kw
Price :
$25,666.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description
220mm Bed Width Oil Country Big Bore Lathe for Metal Q-225 Pipe Thread Horizontal Lathe
Specification
Specification
Q-225
Max. swing over bed
630/800mm
Max. swing over cross slide
340/520mm
Distance between centers
1500/3000mm
Pipe threading range
50-220mm
Bed width
550mm
X-axis travel
320/420mm
Z-axis travel
1350/2850mm
Loading capacity
3000kg
Spindle bore
225mm
Spindle speed steps
CCW: 12/CW: 9
Spindle speed
20-480rpm
Chuck size
520mm
Chuck type (manual)
4-jaw
Turret type (manual)
V4
Tool shank size
30x30mm
X-axis feed range (steps)
0.02-0.45 mm/r(22)
X-axis rapid feed speed
2300mm/min
Z-axis feed range (steps)
0.07-1.33mm/r (26)
Z-axis rapid feed speed
4000mm/min
No. of Metric thread and range
1-14 mm(24)
No. of Inch thread and range
28-2 TPI(40)
Tailstock quill diameter
100mm
Tailstock quill taper
MT5
Tailstock quill travel
250mm
Main motor power
11kw
Rapid feed motor power
0.3kw
Coolant motor power
0.125kw
Machine dimensions (LxWxH)
3700/5200x1650x1550mm
Machine weight
4500/5700kg

STANDARD ACCESSORIES:

Big bore chuck (Front & Rear), Dead center, 4-station tool post, Taper turning attachment, Cooling system, Work lamp, Chip collecting plate, General tools, Leveling wedge and bolts, Operation manual (English).

OPTIONAL ACCESSORIES:

2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Rear support for long pipe.
