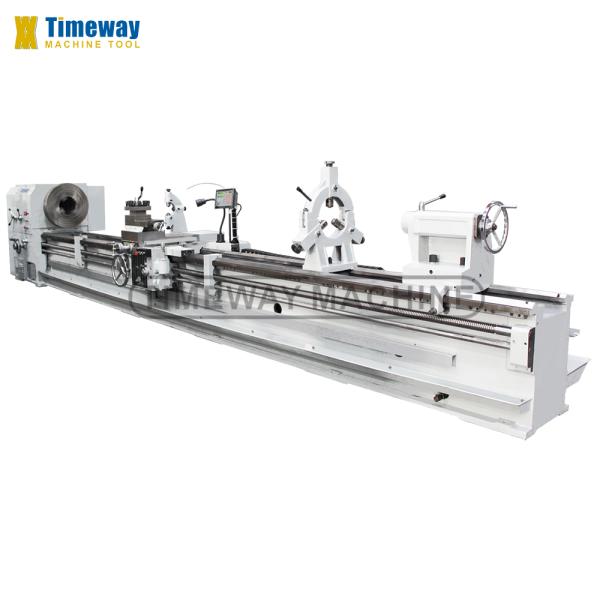

Metal Pipe Thread Lathe Machine Q-280F for Full Function Manual Oil Country Machining
Metal Pipe Thread Lathe Machine Q-280F for Full Function Manual Oil Country Machining
Metal Pipe Thread Lathe Machine Q-280F for Full Function Manual Oil Country Machining
Metal Pipe Thread Lathe Machine Q-280F for Full Function Manual Oil Country Machining
Metal Pipe Thread Lathe Machine Q-280F for Full Function Manual Oil Country Machining
Metal Pipe Thread Lathe Machine Q-280F for Full Function Manual Oil Country Machining
Metal Pipe Thread Lathe Machine Q-280F for Full Function Manual Oil Country Machining
Metal Pipe Thread Lathe Machine Q-280F for Full Function Manual Oil Country Machining
Metal Pipe Thread Lathe Machine Q-280F for Full Function Manual Oil Country Machining
Metal Pipe Thread Lathe Machine Q-280F for Full Function Manual Oil Country Machining
Metal Pipe Thread Lathe Machine Q-280F for Full Function Manual Oil Country Machining
Metal Pipe Thread Lathe Machine Q-280F for Full Function Manual Oil Country Machining
Specifications
Max. Length of Workpiece (mm) :
1000
Range of Spindle Speed(r.p.m) :
20 - 300 r.p.m
Machining Capacity :
Medium Duty
Type :
Horizontal
Place of Origin :
China
Model Number :
Q-280F
Dimension(L*W*H) :
3700 1700 1600
Weight (KG) :
7300 KG
Warranty :
1 Year
Key Selling Points :
Multifunctional, High Rigidity
Marketing Type :
Hot Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max. Weight of Workpiece(kg) :
4000
Spindle Taper :
Other
Cutting torque :
66 N.m
Rapid Feed Speed(mm/min) :
1870 - 3740 mm/min
Feed Speed(mm/min) :
1870 - 3740 mm/min
Tool Post Stations :
4
After-sales Service Provided :
Provided
Precision :
High Precision High Accuracy
Processing :
Metal Workpiece
CNC or Not :
Nomal
Max. Swing Diameter :
800mm
Spindle speed :
20-100,100-300rpm
Spindle bore :
280mm
Distance between centers :
1000/1500/2000/3000mm
X axis travel :
520mm
Turret type :
Manual 4 position
Price :
$25,666.00/sets 1-1 sets
MOQ :
1 set
Description
Product Description
Metal Pipe Thread Lathe Machine Q-280F for Full Function Manual Oil Country Machining
Specification
Swing over bed
Φ800mm
Swing over cross slide
Φ480mm
Distance between centers
1000/1500/2000/3000mm
Pipe threading range
Φ70-275mm
Width of bed way
600mm (Opt. 650)
Spindle bore
Φ280mm
Spindle speed steps
VF.2steps
Spindle speed range
20-100,100-300rpm
Chuck size
Φ780mm
Chuck type
4-jaw manual
Turret type
Manual 4 position
Tool shank
40x40mm
X axis travel
520mm
Z axis travel
800/1300/1800/2800mm
X axis rapid traverse speed
1870mm/min
Z axis rapid traverse speed
3740mm/min
X axis feed grade/range
32/0.095-14mm/r
Z axis feed grade/range
32/0.095-14mm/r
Tailstock quill diameter
Φ140mm
Tailstock quill taper
MT6
Tailstock quill travel
250mm
Main spindle motor power
15kw
Rapid traverse motor power
1.5kw
Coolant pump motor power
0.125kw
Metric thread grade/range
22 / 1-15mm
Inch thread grade/range
26 / 14-1T.P.I
Machine length
3700/4200/4700/5700mm
Machine width/machine height
1700x1600mm
Machine weight
7300/8000/8700/9700mm

STANDARD ACCESSORIES:

Big bore chuck (Front & Rear)
Dead center
4-station tool post
Taper turning attachment
Cooling system
Work lamp
Chip collecting plate
General tools
Leveling wedge and bolts
Operation manual (English)

OPTIONAL ACCESSORIES:

2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Rear support for long pipe
