Specifications
Place of Origin :
Henan, China
Brand Name :
Timeway
Model Number :
QK-130
Price :
$36,000.00/sets 1-2 sets
Type :
Horizontal
Max. Length of Workpiece (mm) :
3000
Structure :
Flat Bed Lathe
Machining Capacity :
Heavy Duty
Width of bed (mm) :
450 mm
Spindle Motor Power(kW) :
11
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
390 mm
Travel (Z Axis)(mm) :
450 mm
Positioning Accuracy (mm) :
±0.001
Repeatability (X/Y/Z) (mm) :
±0.002
CNC Control System :
FANUC
Tool Post Stations :
4
Weight (KG) :
7500
Warranty :
1 Year
Key Selling Points :
Competitive Price
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Machine Type :
Lathe Machine CNC
Product name :
CNC Lathe Mechine
Precision :
High Precision Machine
Color :
Customer Optional
Max. Swing Over Bed :
800mm
Spindle bore :
130mm
Max. length of workpiece :
1000/1500/2000/3000mm
Keyword :
Automatic CNC Lathe Machine
Function :
Machining Metal
Condition :
New
Spindle Bore(mm) :
130
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining
Showroom Location :
Egypt, Canada, United Kingdom, France, Germany, Viet Nam, Philippines, Indonesia, Mexico, Russia, Morocco, Chile, Romania, South Africa, Japan, Malaysia, None
Core Components :
Bearing, Motor, PLC, Engine
Year :
2024
Max. Spindle Speed (r.p.m) :
1000 r.p.m
Marketing Type :
Hot Product 2024
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
Product Description

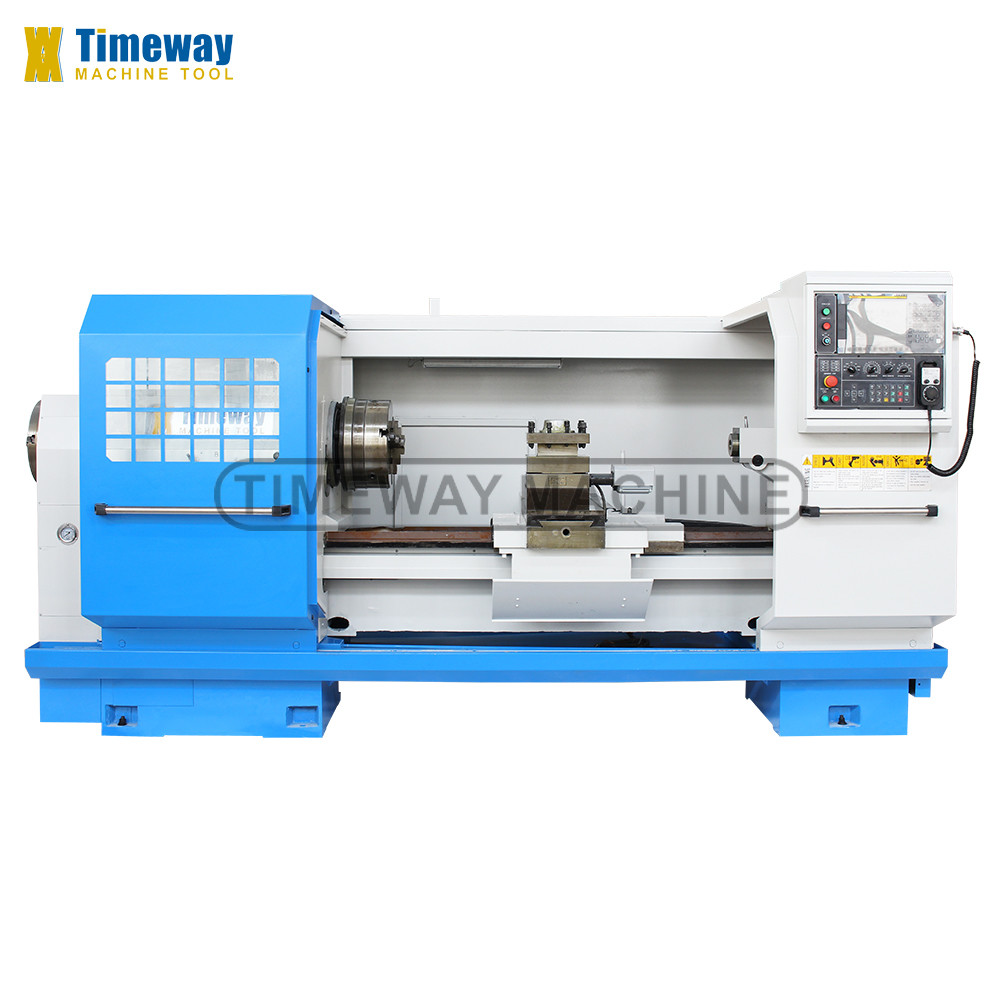

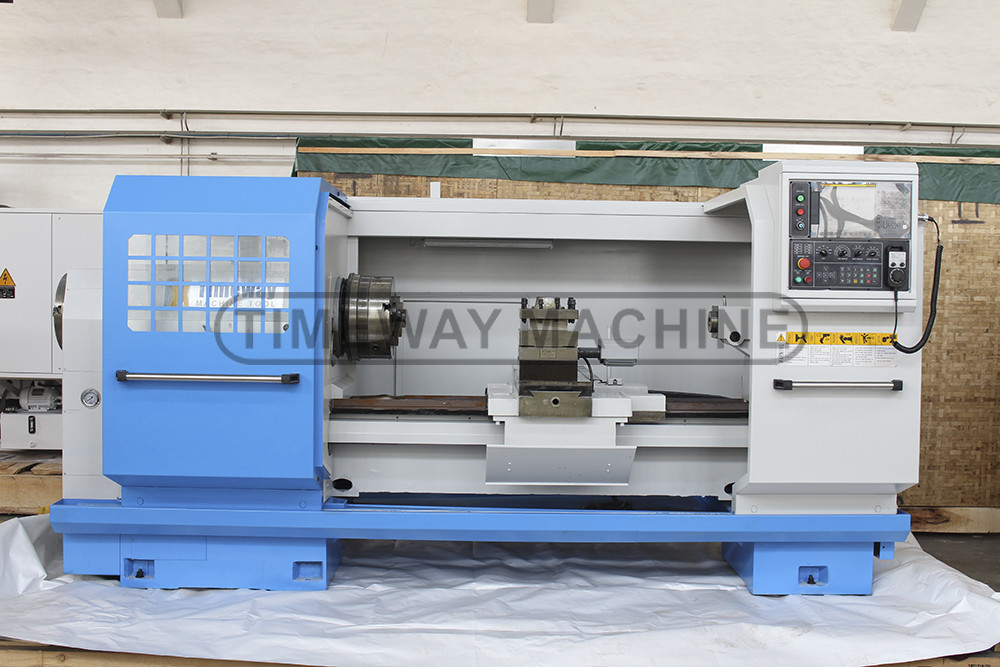

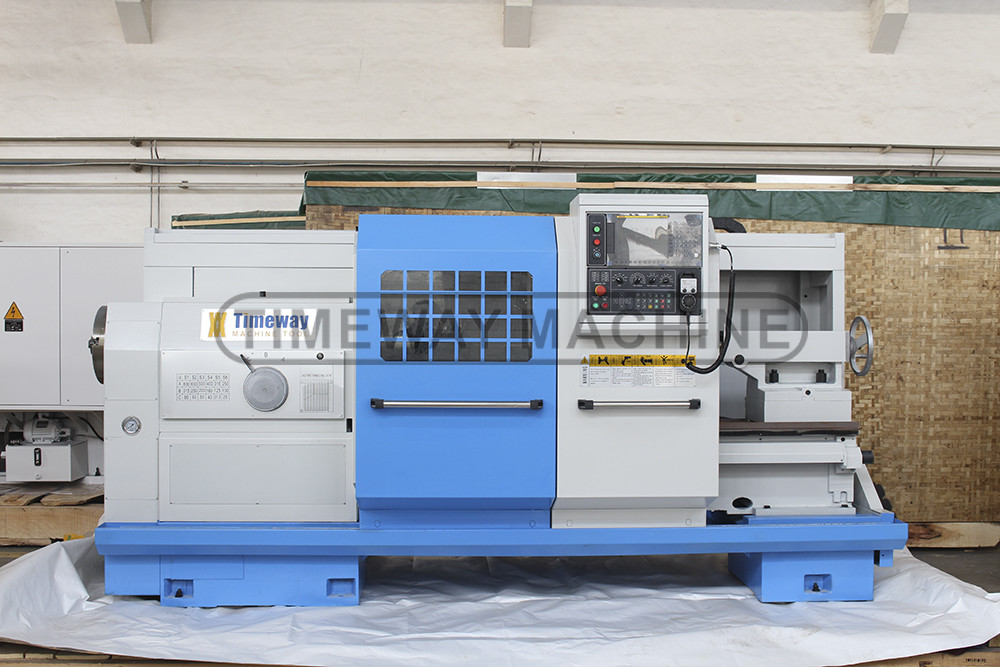

CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery

STANDARD ACCESSORIES:

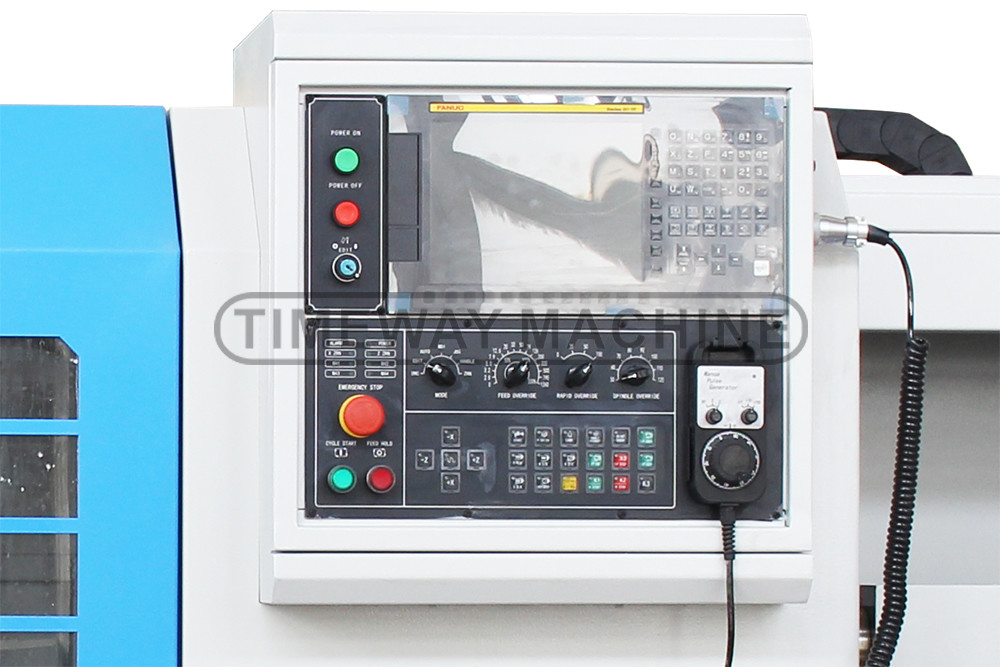

√ FANUC/SIEMENS/GSK CNC system
√ Big bore chuck (Front & Rear)√ Dead centers
√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Automatic lubrication pump
√ Oil gun

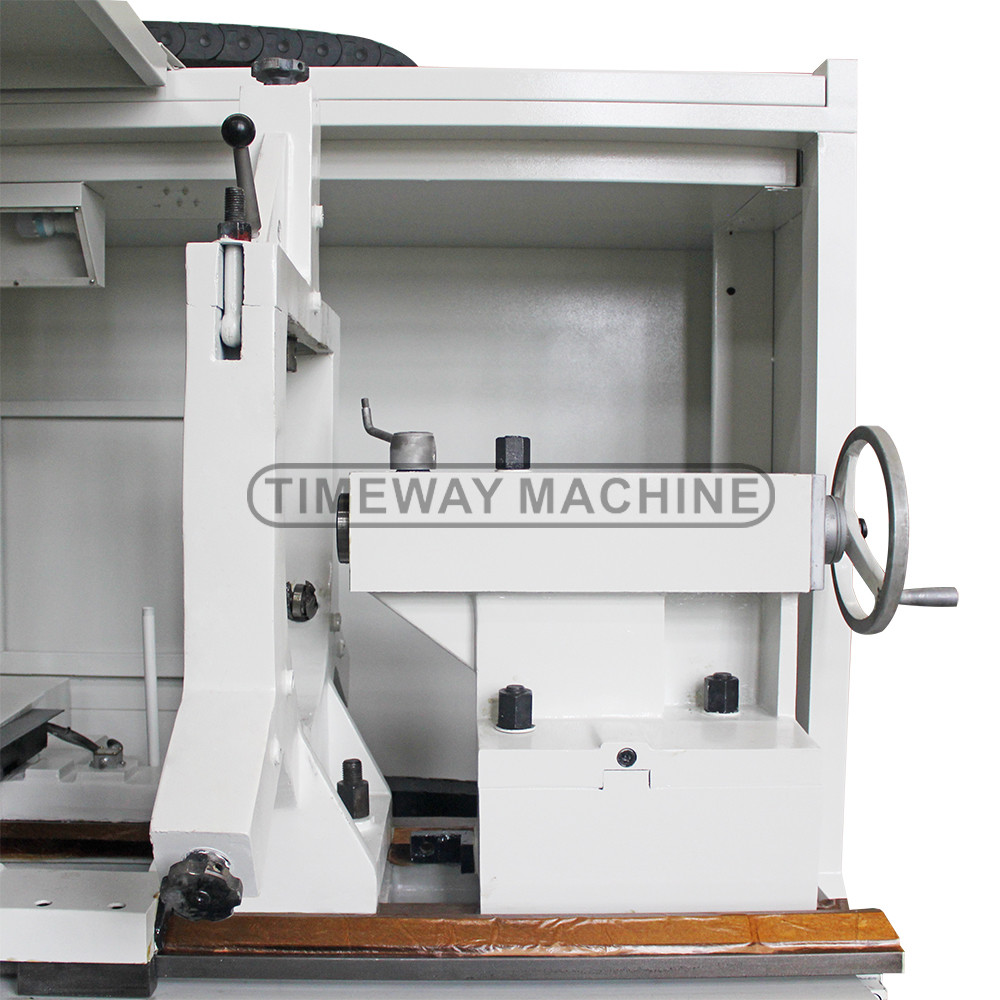

√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

OPTIONAL ACCESSORIES:

_ Pneumatic chuck
_ Other tool post
_ Air conditioner
_ Chip conveyor
_ Rear support for long pipe
Specification
SPECIFICATION
UNIT
QK-130
Pipe threading range
mm
30-120
Max. swing over bed
mm
800
Max. swing over cross slide
mm
450
Max. length of workpiece
mm
1000/1500/2000/3000
Max. turning length
mm
800/1350/1800/2800
Bed width
mm
550
Spindle nose
-
C15
Spindle taper
-
Metric 140
Spindle bore
mm
130
Spindle center taper
-
MT6

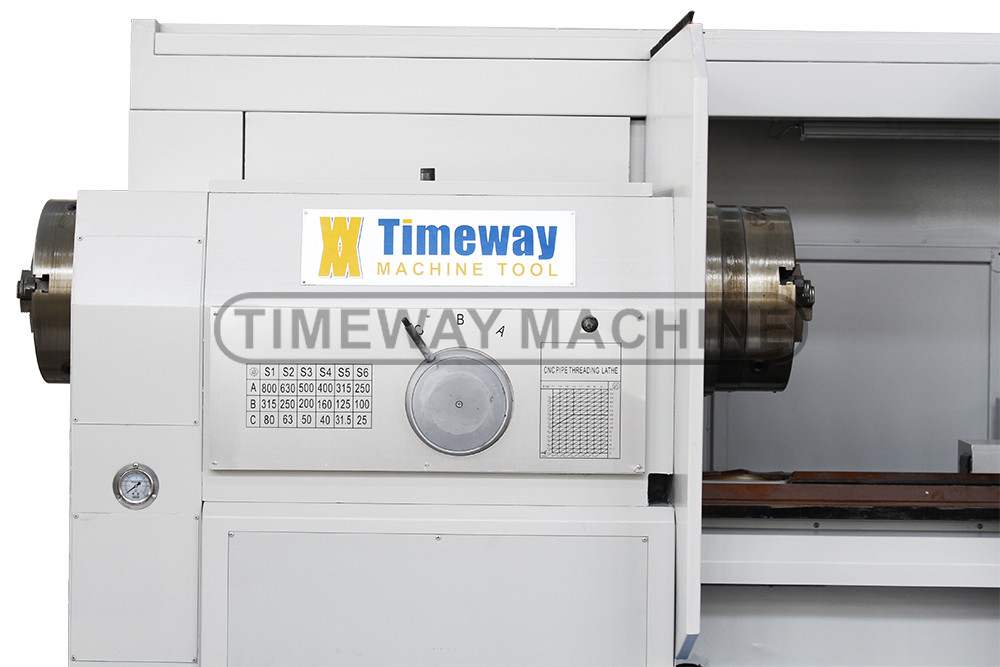

Spindle speed
rpm
20-1000 (manual 3steps)
Chuck size
mm
Φ380 (3-jaw)
Min. feed increment of X/Z-axis
mm
0.001/0.001
X/Z-axis rapid feed speed
m/min
3/6
X-axis travel
mm
390
Turret type
mm
V4, □240
Section of tool shank
mm
40x40
Indexing repeatility
mm
0.008
Max. cutting force
N
19600
Tailstock quill diameter
mm
100
Tailstock quill travel
mm
250
Tailstock quill taper
-
MT5
Main motor power
kw
11
Working accuracy
um
IT6-IT7
Surface roughness
um
Ra1.6
Machine length
mm
3227/3677/4177/5177
Machine width
mm
1800
Machine height
mm
1850
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
Factory Display:
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
Factory Profile:
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction:
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
Company Profile:
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
Customer Visited:
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
Exhibitions:
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
