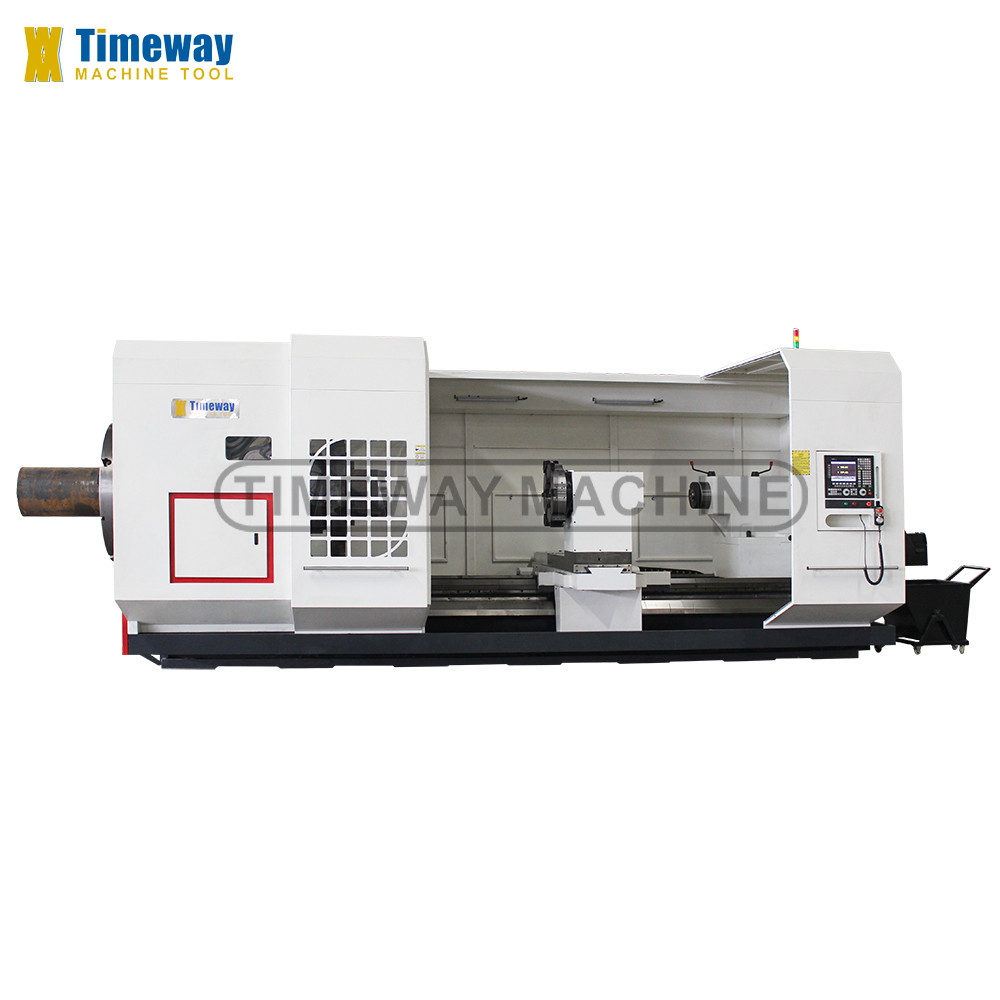

High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
5000
Structure :
Flat Bed Lathe
Machining Capacity :
Heavy Duty
Width of bed (mm) :
1100 mm
Spindle Motor Power(kW) :
37
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
850 mm
Travel (Z Axis)(mm) :
900 mm
Positioning Accuracy (mm) :
±0.001
Repeatability (X/Y/Z) (mm) :
±0.002
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Model Number :
QK-550
CNC Control System :
FANUC
Tool Post Stations :
4
Weight (KG) :
17800
Warranty :
1 Year
Key Selling Points :
Competitive Price
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Machine Type :
Lathe Machine CNC
Product name :
CNC Oil Country Lathe
Precision :
High Precision Machine
Color :
Customer Optional
Max. Swing Over Bed :
1250mm
Spindle bore :
550mm
Max. length of workpiece :
1500/3000/5000mm
Keyword :
Automatic CNC Lathe Machine
Function :
Machining Metal
Condition :
New
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining
Showroom Location :
Egypt, Canada, United Kingdom, France, Germany, Viet Nam, Philippines, Indonesia, Mexico, Russia, Morocco, Chile, Romania, South Africa, Japan, Malaysia, None
Core Components :
Bearing, Motor, PLC, Engine
Year :
2024
Max. Spindle Speed (r.p.m) :
258 r.p.m
Spindle Bore(mm) :
550
Marketing Type :
Hot Product 2024
Price :
$36,000.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
Product Description
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno

STANDARD ACCESSORIES:

√ FANUC/SIEMENS/GSK CNC system
√ Big bore chuck (Front & Rear)√ Dead centers
√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Automatic lubrication pump
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

OPTIONAL ACCESSORIES:

_ Pneumatic chuck
_ Other tool post
_ Air conditioner
_ Chip conveyor
_ Rear support for long pipe
Specification
SPECIFICATION
UNIT
QK-550
Pipe threading range
mm
330-550
Max. swing over bed
mm
1250
Max. swing over cross slide
mm
900
Max. length of workpiece
mm
1500/3000/5000
Max. turning length
mm
1300/2850/4850
Span of guideway
mm
1100
Spindle nose
-
A2-28
Spindle bore
mm
550
Spindle speed
rpm
23-258 (2)
Chuck size
mm
1250
Min. feed increment of X/Z-axis
mm
0.001/0.001
X/Z-axis rapid feed speed
m/min
4/6
X-axis travel
mm
850
Turret type
mm
V4
Section of tool shank
mm
50x50
Indexing repeatility
mm
0.008
Max. cutting force
N
39200
Tailstock quill diameter
mm
260
Tailstock quill travel
mm
300
Tailstock quill taper
-
Metric 80
Main motor power
kw
37
Working accuracy
um
IT6-IT7
Surface roughness
um
Ra1.6
Machine length
mm
5500/7000/9000
Machine width
mm
3200
Machine height
mm
2800
Machine weight
tons
17.8/19/23
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
Factory Display：
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
