Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
1500
Structure :
Flat Bed Lathe
Machining Capacity :
Light Duty
Width of bed (mm) :
190 mm
Spindle Motor Power(kW) :
11
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
390 mm
Travel (Z Axis)(mm) :
1150 mm
Place of Origin :
China
Dimension(L*W*H) :
3677 1800 1850
Model Number :
QK-200
CNC Control System :
FANUC
Tool Post Stations :
6
Weight (KG) :
5100
Warranty :
1 Year
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Machine Type :
Lathe Machine CNC
Product name :
CNC Lathe Mechine
Keyword :
Automatic CNC Lathe Machine
Function :
Machining Metal
Precision :
High Precision Machine
Max. Swing Over Bed :
800mm
spindle bore :
200mm
Distance between centers :
1500mm
Name :
cnc oil country lathe
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other
Showroom Location :
Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia
Core Components :
Other
Max. Spindle Speed (r.p.m) :
600 r.p.m
Spindle Bore(mm) :
200
Max. Turned Length (mm) :
1350
Marketing Type :
Hot Product
Price :
$22,666.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

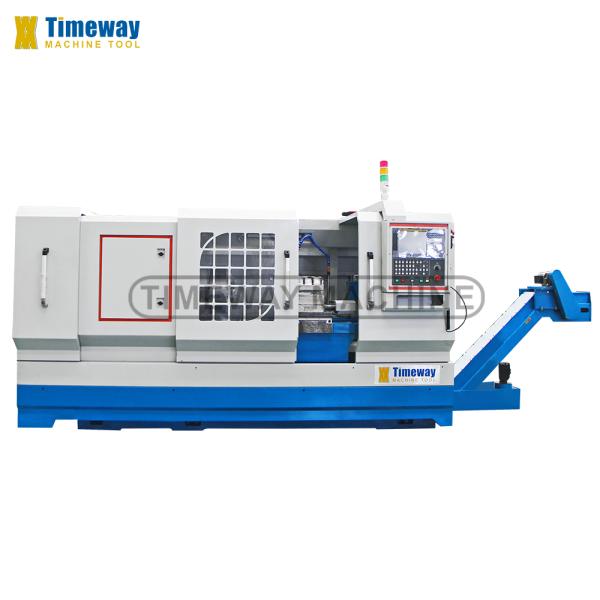

State-of-the-Art CNC Oil Country Lathe Machine for Flat Bed Lathe Structure
Specification
Specifications
UNIT
QK200
Pipe threading range
mm
50-190
Max. swing over bed
mm
800
Max. swing over cross slide
mm
450
Max. length of workpiece
mm
1000/1500/2000/3000
Max. turning length
mm
800/1350/1800/2800
Bed width
mm
550
Spindle nose
-
C15
Spindle taper
-
Metric 213
Spindle bore
mm
200
Spindle center taper
-
MT6
Spindle speed
rpm
20-600 (manual 2steps)
Chuck size
mm
Φ500 (3-jaw)
Min. feed increment of X/Z-axis
mm
0.001/0.001
X/Z-axis rapid feed speed
m/min
3/6
X-axis travel
mm
390
Turret type
mm
V4, □240
Section of tool shank
mm
40x40
Indexing repeatility
mm
0.008
Max. cutting force
N
19600
Tailstock quill diameter
mm
100
Tailstock quill travel
mm
250
Tailstock quill taper
-
MT5
Main motor power
kw
11
Working accuracy
um
IT6-IT7
Surface roughness
um
Ra1.6
Machine length
mm
3227/3677/4177/5177
Machine width
mm
1800
Machine height
mm
1850
Machine weight
kg
4300/5500

STANDARD ACCESSORIES:

FANUC/GSK/SIEMENS CNC system, 4-station electric tool-post, Work lamp, etc.

OPTIONAL ACCESSORIES:

Penumatic chuck, Other tool-post, Chip conveyor, Air conditioner, Rear support for long pipe.
