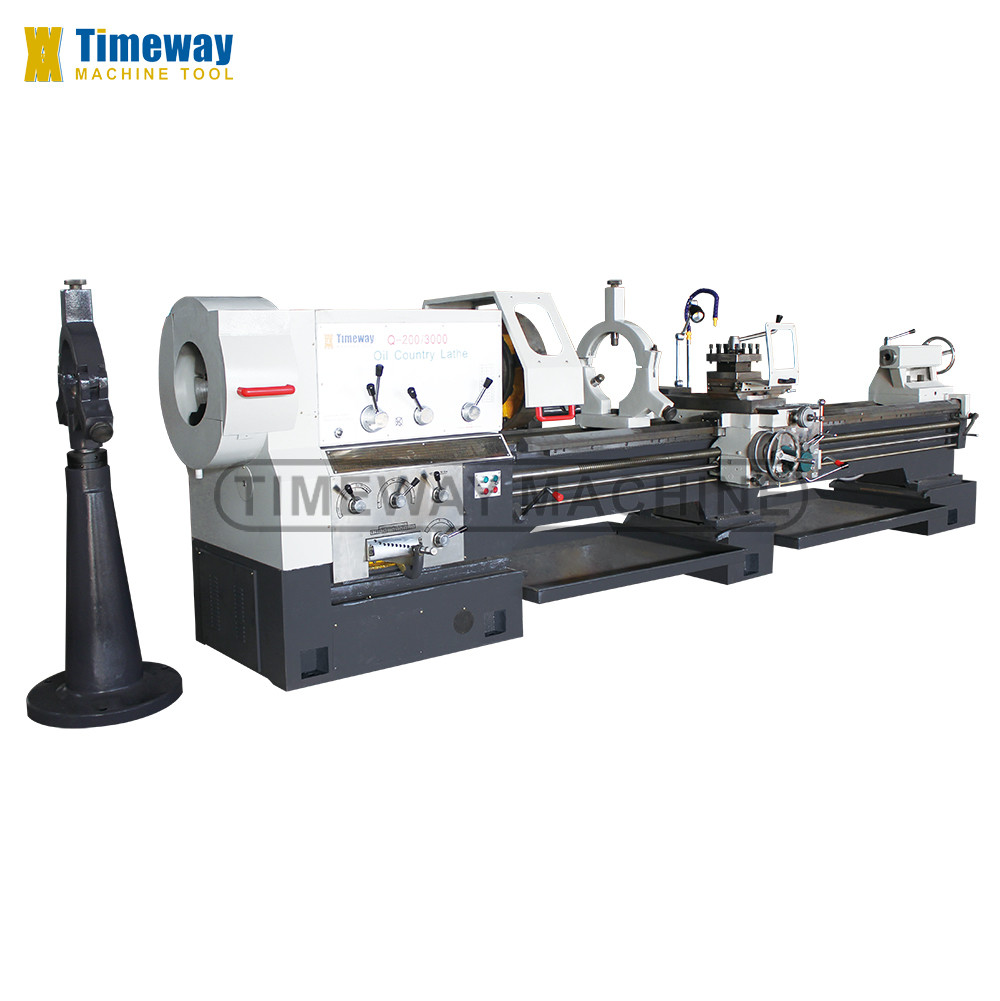

11kW Spindle Motor Power Q-200 Pipe Thread Lathe Machine for Various Applications
11kW Spindle Motor Power Q-200 Pipe Thread Lathe Machine for Various Applications
11kW Spindle Motor Power Q-200 Pipe Thread Lathe Machine for Various Applications
11kW Spindle Motor Power Q-200 Pipe Thread Lathe Machine for Various Applications
11kW Spindle Motor Power Q-200 Pipe Thread Lathe Machine for Various Applications
11kW Spindle Motor Power Q-200 Pipe Thread Lathe Machine for Various Applications
11kW Spindle Motor Power Q-200 Pipe Thread Lathe Machine for Various Applications
11kW Spindle Motor Power Q-200 Pipe Thread Lathe Machine for Various Applications
11kW Spindle Motor Power Q-200 Pipe Thread Lathe Machine for Various Applications
11kW Spindle Motor Power Q-200 Pipe Thread Lathe Machine for Various Applications
Specifications
Max. Length of Workpiece (mm) :
1500
Range of Spindle Speed(r.p.m) :
20 - 480 r.p.m
Machining Capacity :
Light Duty
Width of bed (mm) :
193
Type :
Horizontal
Spindle Motor Power(kW) :
11
Place of Origin :
China
Model Number :
Q-200
Dimension(L*W*H) :
3700 1550 1550
Weight (KG) :
4300 KG
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Marketing Type :
Hot Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Machine Type :
Horizontal Metal Turning Lathe Machine
Product Name :
Manual Metal Lathe Machine
Keyword :
Universal Metal Lathe
After-sales Service Provided :
Online Services
Precision :
High Precision High Accuracy
Processing :
Metal Workpiece
Certification :
CE
spindle bore :
200mm
max. swing over bed :
630mm
Distance between centers :
1500mm
Condition :
New
Showroom Location :
Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia
Spindle Bore(mm) :
200
Max. Turned Length (mm) :
1500 mm
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other
Core Components :
Other
Price :
$22,666.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

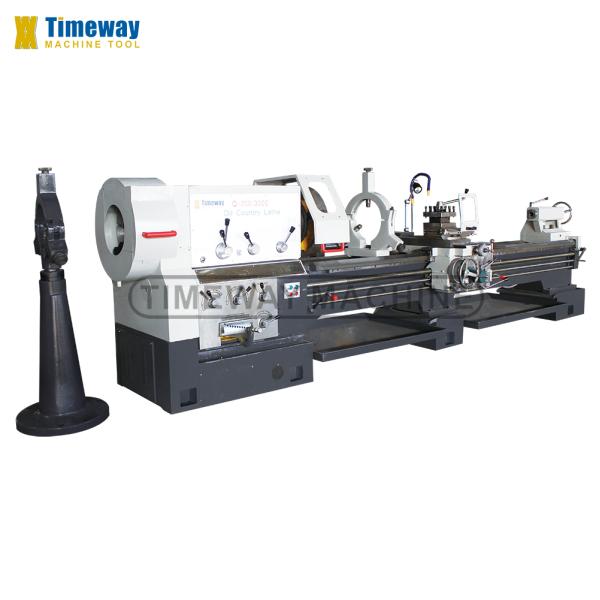

11kW Spindle Motor Power Q-200 Pipe Thread Lathe Machine for Various Applications
Specification
Max. swing over bed
mm
630/800
Max. swing over cross slide
mm
340/520
Distance between centers
mm
1500/3000
Pipe threading range
mm
50-193
Bed width
mm
550
X-axis travel
mm
320/420
Z-axis travel
mm
1350/2850
Loading capacity
kg
3000
Spindle bore
mm
200
Spindle speed steps
steps
CCW: 12/CW: 9
Spindle speed
rpm
20-480
Chuck size
mm
520

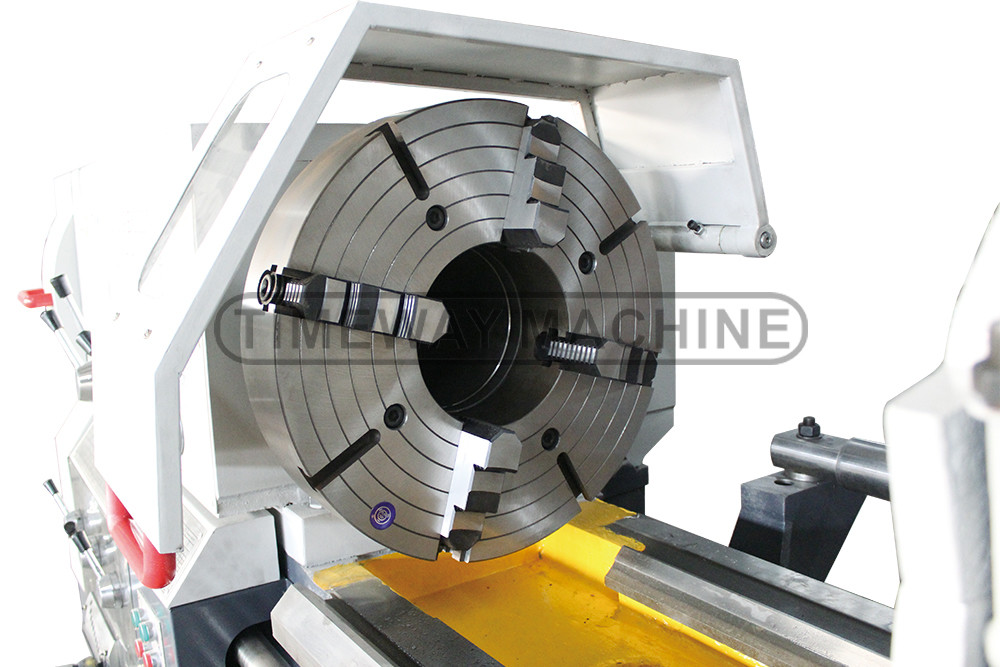

Chuck type (manual)
-
4-jaw
Turret type (manual)
-
V4
Tool shank size
mm
32x32
X-axis feed range (steps)
mm/r
0.02-0.45 (22)
X-axis rapid feed speed
mm/min
2300
Z-axis feed range (steps)
mm/r
0.07-1.33 (26)
Z-axis rapid feed speed
mm/min
4000
No. of Metric thread and range
mm
1-14 (24)
No. of Inch thread and range
TPI
28-2 (40)
Tailstock quill diameter
mm
100
Tailstock quill taper
-
MT5
Tailstock quill travel
mm
250
Main motor power
kw
11
Rapid feed motor power
kw
0.3
Coolant motor power
kw
0.125
Machine dimensions (LxWxH)
mm
3700/5200x1550x1550
Machine weight
kg
4300/5500

STANDARD ACCESSORIES:

Big bore chuck (Front & Rear), Dead center, 4-station tool post, General tools, Leveling wedge and bolts, Operation manual (English), etc.

OPTIONAL ACCESSORIES:

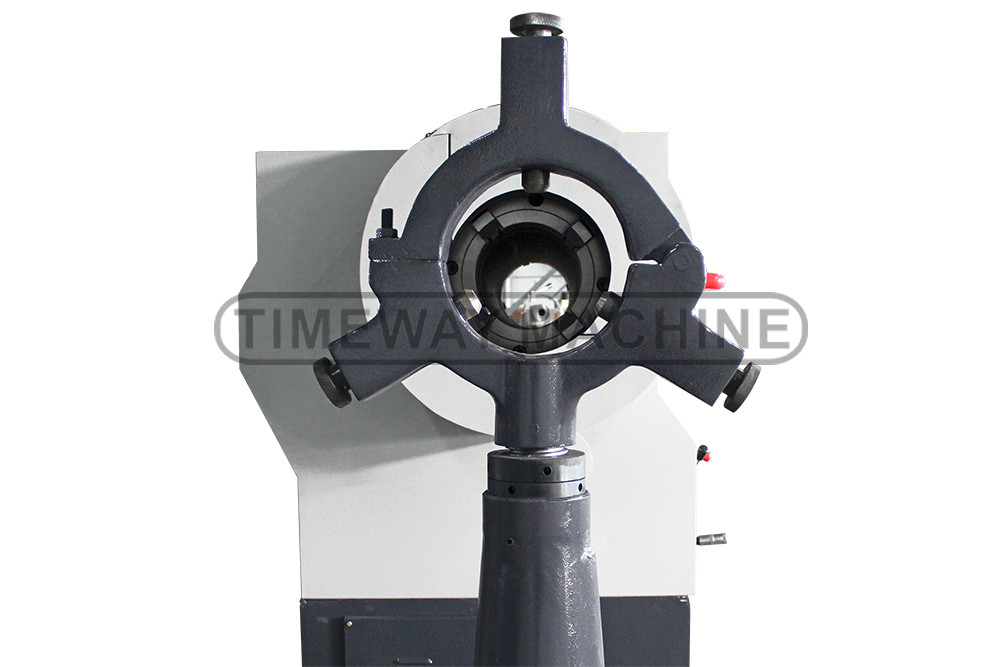

2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Rear support for long pipe.
