PLC Circular Seam Welding Machine 1-10r/Min TIG CO2 Welding Long Seam
PLC Circular Seam Welding Machine 1-10r/Min TIG CO2 Welding Long Seam
PLC Circular Seam Welding Machine 1-10r/Min TIG CO2 Welding Long Seam
PLC Circular Seam Welding Machine 1-10r/Min TIG CO2 Welding Long Seam
PLC Circular Seam Welding Machine 1-10r/Min TIG CO2 Welding Long Seam
PLC Circular Seam Welding Machine 1-10r/Min TIG CO2 Welding Long Seam
Specifications
Brand Name :
Lemar
Model Number :
HFH
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
500-5000usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
30sets/month
Delivery Time :
7 days
Packaging Details :
Standard
Welding source :
TIG MIG MAG LASER CO2
Power :
380V 50HZ
Spindle speed :
1-10r/min
Wire Diameter :
0.8-1.2mm
Control Method :
PLC
Welding torch angle :
25°-60°
Welding length :
Customized
Description

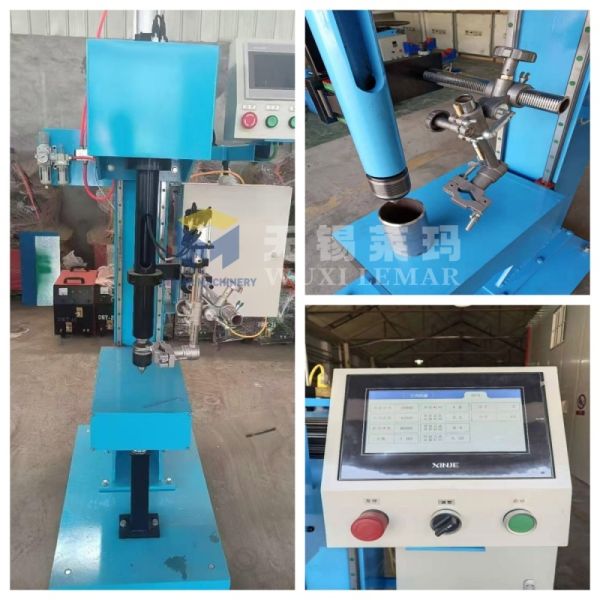

Shock Absorber Circular Seam Welding Machine
The Automatic Rotating Gun Welding Machine is a core piece of equipment in modern automotive shock absorber manufacturing. With superior performance characterized by high precision, efficiency, and stability, this equipment helps automotive parts manufacturers improve product quality while reducing production costs.
Whether you are building a new shock absorber production line or automating existing welding processes, this equipment provides a reliable solution for circumferential seam welding applications.
PLC Circular Seam Welding Machine 1-10r/Min TIG CO2 Welding Long Seam
Technical Specifications
Power Supply 380V 50HZ Welding Source TIG, MIG, MAG, PAW, SAW
Spindle Speed 1-10r/min Suitable Diameter 30-60mm
Wire Diameter 0.8-1.2mm Pressure 0.4-0.6MPa
Welding Torch Stroke 100mm Welding Torch Angle 25°-60°
Control Mode PLC + Touch Screen Brand LEMAR
Additional Circumferential Welding Equipment
  • Hydraulic cylinder welding equipment
  • Pneumatic cylinder welding equipment
  • Circumferential weld equipment for pipe fittings and flanges
  • Circumferential weld equipment for thin-walled vessel shells
Industry Applications
  • Shock absorber oil reservoir welding to base: Achieving circumferential seam connection between the cylinder and the bottom end cap.
  • Shock absorber spring disc welding: Precisely positioning the lap weld between the spring seat and the cylinder.
  • Shock absorber lifting ring (mounting bracket) welding: Completing the circumferential seam weld between the top mounting bracket and the cylinder.
  • Shock absorber valve body welding to oil pipe: Precisely positioning the connection weld between the valve body and the pipe fitting.
