1000KG Circular Seam Welding Machine ±45deg Pipe Welding Corner Seam Welder
1000KG Circular Seam Welding Machine ±45deg Pipe Welding Corner Seam Welder
1000KG Circular Seam Welding Machine ±45deg Pipe Welding Corner Seam Welder
1000KG Circular Seam Welding Machine ±45deg Pipe Welding Corner Seam Welder
1000KG Circular Seam Welding Machine ±45deg Pipe Welding Corner Seam Welder
1000KG Circular Seam Welding Machine ±45deg Pipe Welding Corner Seam Welder
Specifications
Brand Name :
Lemar
Model Number :
LM-28
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
500-5000usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
30sets/month
Delivery Time :
7 days
Packaging Details :
Standard
Pipe diameter :
Φ108-710mm
Rotate speed :
100～1000mm/min
Max load capacity :
1000KG
Tilt angle :
±45
Power :
3P 380/50HZ
Drive wheel height :
950mm
Warranty :
1 year
Duration :
20 days
Description

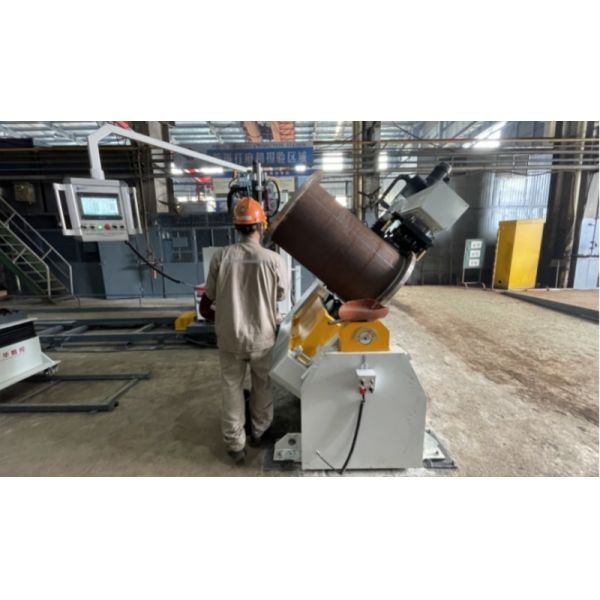

Roller-Type Machine Rotary Welding Machine 1000kg
Lemar's pipe rotary welding machine offers exceptional practicality and reliability. This roller-type pipe circular welding positioner serves as a versatile welding auxiliary device for welding pipes to pipes, pipes to flanges, bent pipes, T-shaped pipes, and pipes of different diameters with offset centers of gravity.
The equipment securely clamps pipes or flanges and rotates or tilts the workpiece to optimal welding positions as needed. Primarily used for rotary pipe welding across various industries including shipbuilding, chemical engineering, and skid-mounted equipment. This roller-type pipe welding positioner can also integrate with mobile cantilever welding machines to create automated welding systems.
Technical Specifications
Model LM-28
Pipe diameter Φ108-710mm
Rotate speed 100～1000mm/min
Rotational torque 30000NM
Equipment power 4.15KW
Displacement method Electric
Drive wheel height 950mm
Equipment weight About 1500KG
Max load capacity 1000KG
Drive wheel transmission method Motor + gear reducer + worm gear drive with self-locking function, high rotational stability and precision
Arm lifting and guiding method High-precision linear guides for superior transmission accuracy, stability, and maintenance convenience
Arm lifting method Motor + Gear Reducer + Lead Screw and Nut Pair
Control Hand control box + foot switch
Tilt angle ±45°
Power 3P, 380/50HZ
Key Features
  • Dedicated Workpiece Clamping System: V-shaped clamp structure adapts to pipes of different diameters while ensuring precise positioning
  • Multi-Degree-of-Freedom Welding Torch Adjustment: Welding torch angle adjustable from 25°-60°, maintaining proper alignment with pipe surface normal direction
  • Automatic Arc Length Tracking System (AVC): Maintains constant distance between welding torch and workpiece with ±0.2V sensitivity for consistent welding quality
  • Multi-Process Compatibility: Supports TIG (Tungsten Arc Welding), MIG/MAG (Gas Shielded Gas Welding), and plasma welding processes
  • Intelligent Control System: PLC programmable controller with touchscreen interface stores up to 30 sets of welding process parameters
  • Dual Operation Modes: Manual mode for pre-welding preparation and touch-up welding; automatic mode for unmanned welding operations
Premium Construction: Features high-precision linear guides and worm gear drive systems for superior stability and precision, avoiding low-cost chain drive and steel guide alternatives that require frequent maintenance.
