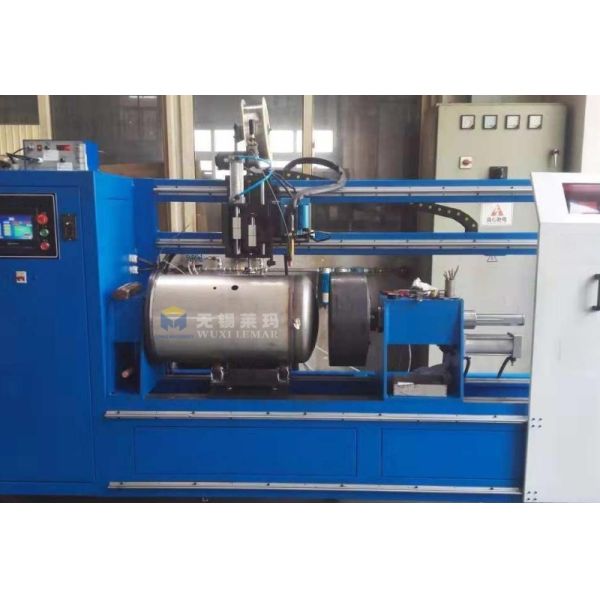

Horizontal Type Circumferential Welding 0.4 - 0.6Mpa Hydraulic Cylinder Machine Pipe Welder
Horizontal Type Circumferential Welding 0.4 - 0.6Mpa Hydraulic Cylinder Machine Pipe Welder
Horizontal Type Circumferential Welding 0.4 - 0.6Mpa Hydraulic Cylinder Machine Pipe Welder
Horizontal Type Circumferential Welding 0.4 - 0.6Mpa Hydraulic Cylinder Machine Pipe Welder
Horizontal Type Circumferential Welding 0.4 - 0.6Mpa Hydraulic Cylinder Machine Pipe Welder
Horizontal Type Circumferential Welding 0.4 - 0.6Mpa Hydraulic Cylinder Machine Pipe Welder
Specifications
Torch qty :
1 or 2
Welding source :
TIG MIG MAG LASER CO2
Model Number :
HF-400
Payment Terms :
L/C,D/A,D/P,T/T,
Certification :
CE
Pressure :
0.4-0.6Mpa
Welding speed :
200-1500mm/min
MOQ :
1
Place of Origin :
China
Brand Name :
Lemar
Packaging Details :
Standard
Power :
380V 50HZ
Delivery Time :
7 days
Price :
500-5000usd
Torch stroke :
30-60mm
Supply Ability :
30sets/month
Control Method :
PLC
Operate :
Manual or Automatic
Description
Horizontal Type CO2 MIG MAG TIG Circular Seam Welder for Hydraulic Cylinder
This general-purpose automatic welding device is engineered for performing various circular and circumferential welds with exceptional precision. Capable of high-quality welding across multiple materials including carbon steel, low-alloy steel, stainless steel, aluminum and its alloys, this system offers versatile configuration options with various welding power sources.
Welding Configuration Options
The system supports multiple welding processes including TIG welding (with or without filler wire), gas metal arc welding (CO2/MIG/MAG), and plasma welding, forming a complete automatic circumferential weld system tailored to your specific requirements.
Industrial Applications
This equipment is widely utilized for welding critical components across various industries:
  • Hydraulic cylinders and automotive steering frames
  • Drive shafts and gas cylinders
  • Chemical and medical containers
  • Liquefied gas tanks and fire-fighting equipment
  • Mining rollers and production line liquid storage tanks
Performance Features
Robust Construction
Features a horizontal structure constructed from welded structural components that have undergone annealing and precision machining, ensuring the bed guideways remain undeformed under operational stresses.
Precision Drive System
Rotary head is driven by a DC motor or AC variable frequency motor, delivering stable and reliable rotational speed for consistent weld quality.
Versatile Workpiece Handling
Welding fixture or three-jaw chuck installed at the spindle end provides secure clamping and precise positioning of workpieces. Tailstock can be pneumatically or manually tightened, with customizable welding fixtures or movable centers selected based on workpiece shape requirements.
Adjustable Configuration
Tailstock slides smoothly on bed guideways, allowing easy adjustment of headstock-tailstock distance to accommodate workpieces of varying lengths and diameters.
Horizontal Type Circumferential Welding 0.4 - 0.6Mpa Hydraulic Cylinder Machine Pipe Welder
Pressure Vessel Welding Specialization
This automated welding equipment is specifically engineered for pressure vessel welding applications. Featuring simple operation, high welding efficiency, and excellent weld quality, it effectively improves production efficiency, enhances weld integrity, reduces labor costs, and ensures consistent, reliable welding quality suitable for mass production environments.
