Shock Absorber Circular Seam Welding Machine Automatic Rotating Gun Welding Machine
Shock Absorber Circular Seam Welding Machine Automatic Rotating Gun Welding Machine
Shock Absorber Circular Seam Welding Machine Automatic Rotating Gun Welding Machine
Shock Absorber Circular Seam Welding Machine Automatic Rotating Gun Welding Machine
Shock Absorber Circular Seam Welding Machine Automatic Rotating Gun Welding Machine
Shock Absorber Circular Seam Welding Machine Automatic Rotating Gun Welding Machine
Specifications
Brand Name :
Lemar
Model Number :
HFH
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
500-5000usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
30sets/month
Delivery Time :
7 days
Packaging Details :
Standard
Welding source :
TIG MIG MAG LASER CO2
Power :
220V 50HZ
Spindle speed :
1-10r/min
Wire Diameter :
0.8-1.2mm
Control Method :
PLC
Pressure :
0.1-0.6MPa
Welding length :
30-1000mm
Duration :
10 days
Description

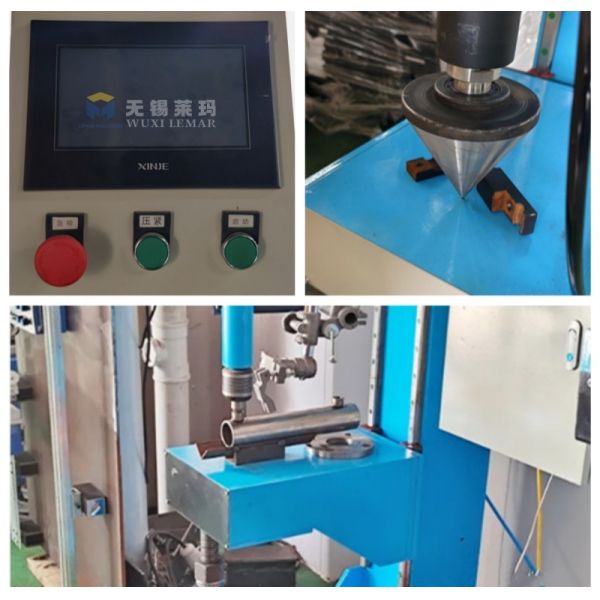

Shock Absorber Circular Seam Welding Machine
This fully automatic rotating gun welding machine enables one-time forming of shock absorber circular seams, eliminating inefficiency and defects while increasing productivity by 200%.
Working Method
The rotating gun welding machines weld joints on workpiece surfaces using PLC-controlled automation. The workpiece remains stationary while the welding gun rotates, with omnidirectional adjustment capabilities to meet precise welding requirements. Welding speed is steplessly adjustable via DC motor, and automatic control of welding gun feed, lifting, and reset ensures stable, reliable operation.
Shock Absorber Circular Seam Welding Machine Automatic Rotating Gun Welding Machine
Technical Specifications
Power Supply 220V 50HZ Welding Source TIG, MIG, MAG, PAW, SAW
Spindle Speed 1-10r/min Suitable Diameter Max to 400mm
Suitable length 30-1000mm Pressure 0.1-0.6MPa
Control Mode PLC + Touch Screen Brand LEMAR
Customer Support & Services
  • Pre-sales process solution demonstration and sample testing
  • Equipment installation, commissioning, and operator training
  • 12-month machine warranty and lifetime technical support
  • 7x24-hour emergency response service
Industry Applications
  • Shock absorber oil reservoir welding to base: Circumferential seam connection between cylinder and bottom end cap
  • Shock absorber spring disc welding: Precise lap weld positioning between spring seat and cylinder
  • Shock absorber lifting ring (mounting bracket) welding: Circumferential seam weld between top mounting bracket and cylinder
  • Shock absorber valve body welding to oil pipe: Precise connection weld between valve body and pipe fitting
In today's competitive automotive parts manufacturing industry, this automatic rotating gun welding machine provides superior welding performance, stable operation, and significant economic benefits, making it the ideal choice for shock absorber manufacturers seeking to enhance their market position.
