Seven Axis Circumferential Welder 380V 50HZ Portable Seam Welder
Seven Axis Circumferential Welder 380V 50HZ Portable Seam Welder
Seven Axis Circumferential Welder 380V 50HZ Portable Seam Welder
Seven Axis Circumferential Welder 380V 50HZ Portable Seam Welder
Seven Axis Circumferential Welder 380V 50HZ Portable Seam Welder
Seven Axis Circumferential Welder 380V 50HZ Portable Seam Welder
Specifications
Brand Name :
Lemar
Model Number :
LMH
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
500-5000usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
30sets/month
Delivery Time :
7 days
Packaging Details :
Standard
Structure :
Movable
Move method :
Electric moving
Welding method :
MIG TIG
Power :
3P 380/50HZ
Warranty :
1 year
Duration :
10 days
Description

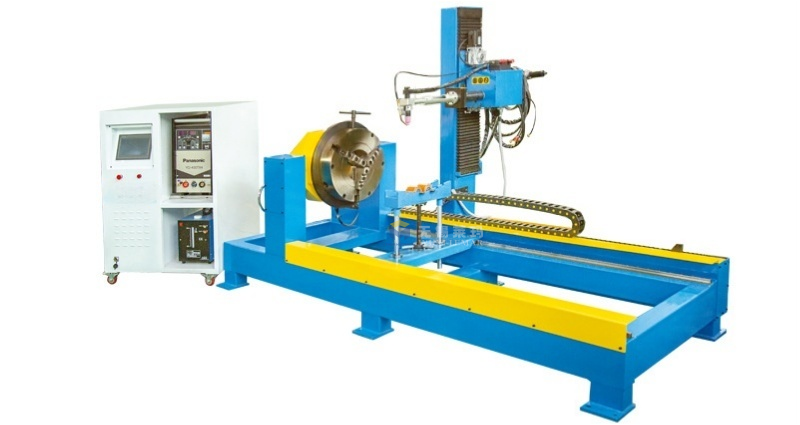

Mobile High-Precision Seven-Axis Circumferential Welder
Mobile and high-precision seven-axis circumferential welder designed for welding pipes, flanges, and tees. Equipped with Pana-sonic TIG welding machines, this system is suitable for welding various materials including carbon steel, alloy steel, and stainless steel.
Advanced Welding Capabilities
  • Full-angle positioner + 3D manipulator + welding torch angle adjustment mechanism for multi-angle, multi-position welding (capable of both circumferential and straight seam welding)
  • Automatic wire feeding function with automatic wire feeding and retraction
  • Comprehensive welding torch oscillation system with adjustable oscillation amplitude, oscillation speed, and delayed pause functions
  • One-button operation automatically completes the welding process with real-time parameter adjustment capability
  • Emergency pause function allows immediate stopping during welding issues with seamless resumption capability
  • Stores 60 sets of welding processes for quick access to different welding configurations
Seven Axis Circumferential Welder 380V 50HZ Portable Seam Welder
Technical Specifications
Input Power Control box 800W/220V/50HZ
TIG Welder 30KW/380V/50HZ
Positioning Angle 0-360 degrees
Weld Flange OD 20-600mm
Weld Thickness ≥1mm
Welding Method TIG MIG
Duration 10 days
