3m Circular Seam Welding Equipment TIG MIG Dual Process Seam Welding Tool
3m Circular Seam Welding Equipment TIG MIG Dual Process Seam Welding Tool
3m Circular Seam Welding Equipment TIG MIG Dual Process Seam Welding Tool
3m Circular Seam Welding Equipment TIG MIG Dual Process Seam Welding Tool
3m Circular Seam Welding Equipment TIG MIG Dual Process Seam Welding Tool
3m Circular Seam Welding Equipment TIG MIG Dual Process Seam Welding Tool
Specifications
Max load capacity :
1000KG
Certification :
CE
Model Number :
LM-16
Supply Ability :
30sets/month
Drive wheel height :
950mm
Payment Terms :
L/C,D/A,D/P,T/T,
Brand Name :
Lemar
Delivery Time :
7 days
Max welding length :
3m
Pipe diameter :
Φ108-710mm
Rotate speed :
100～1000mm/min
Max welding diameter :
1m
Price :
500-5000usd
Tilt angle :
±45
Duration :
20 days
Place of Origin :
China
Power :
3P 380/50HZ
MOQ :
1
Packaging Details :
Standard
Warranty :
1 year
Description

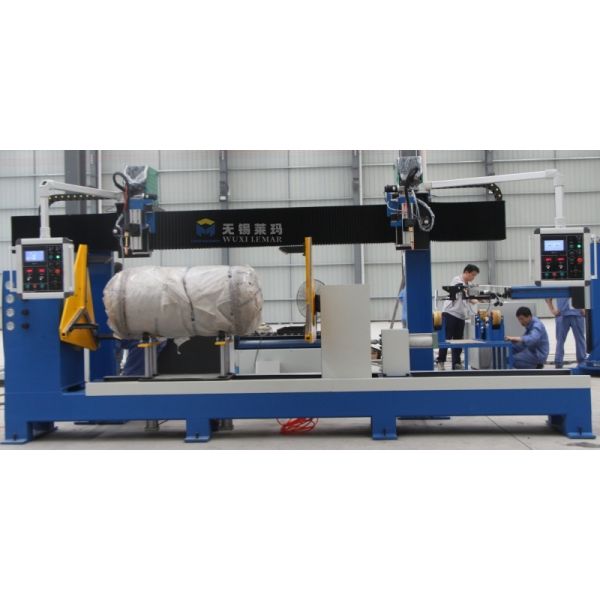

3M Length Oil Cylinders Tanks TIG MIG Circumferential Welding Machines
Lemar circumferential welding machines are automated circumferential welding equipment featuring TIG/MIG dual process capabilities specifically designed for hydraulic cylinders and storage tanks. This advanced equipment significantly improves welding efficiency while reducing labor costs. Custom configurations are available to meet your specific tank requirements.
Applicable Scenarios
Pressure Piping and Flanges
Circumferential welding of pipes and flanges, suitable for petrochemical, food, and pharmaceutical industries.
Gas Storage and Transportation Equipment
CNG cylinders, breathing gas cylinders, fire extinguisher cylinders.
General Containers
Air compressor storage tanks, expansion tanks, buffer tanks.
Food Equipment
Beer fermentation tanks, dairy storage tanks, beverage storage tanks.
3m Circular Seam Welding Equipment TIG MIG Dual Process Seam Welding Tool
Compatible Materials
  • Carbon steel
  • Stainless steel
  • Aluminum alloys
  • Titanium and titanium alloys
  • High-temperature alloys
Through TIG/MIG dual-process switching, the equipment can flexibly handle the welding characteristics of different materials, providing optimal results across various metal types.
Technical Specifications
Model LM-16
Max Welding Length 3m
Welding Diameter 200-1200mm
Welding Thickness 0.5-6mm
Equipment Power 380V 50HZ
Displacement Method Electric
Welding Method TIG MIG
Duration 20 days
