Description
20 Ton Steel Structure H Beam Tilter Machine Heavy Duty Beam Turning Rotator

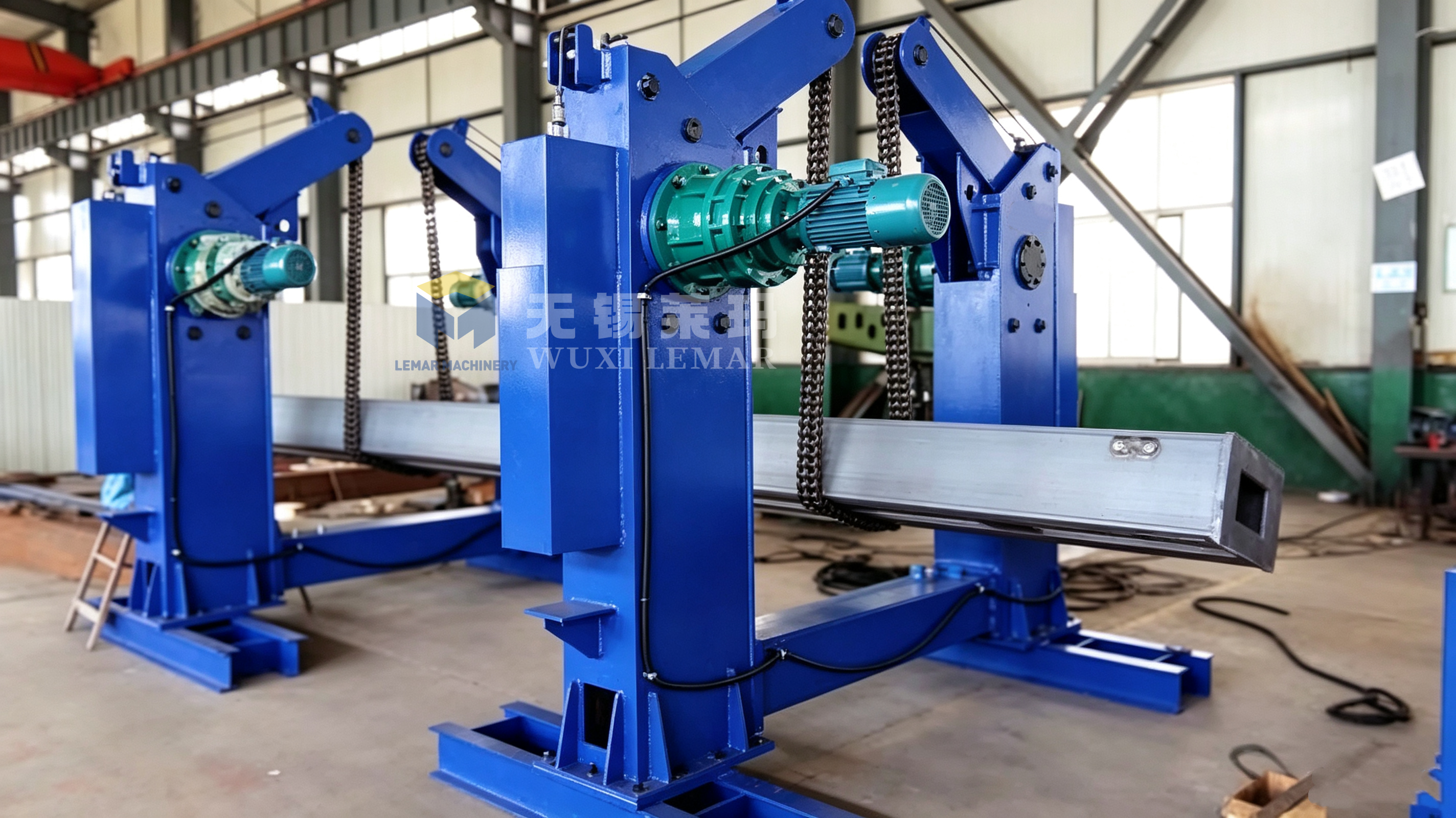

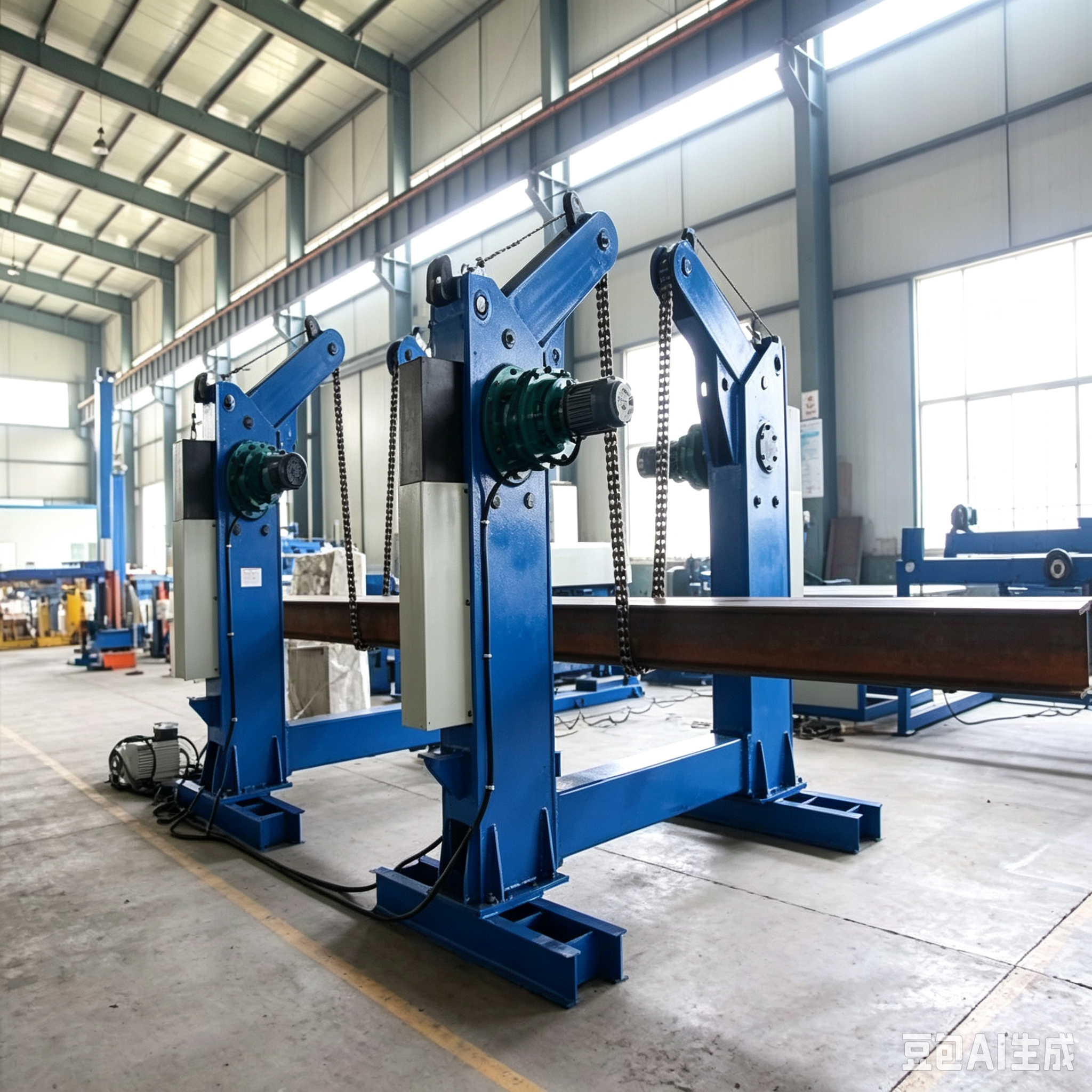

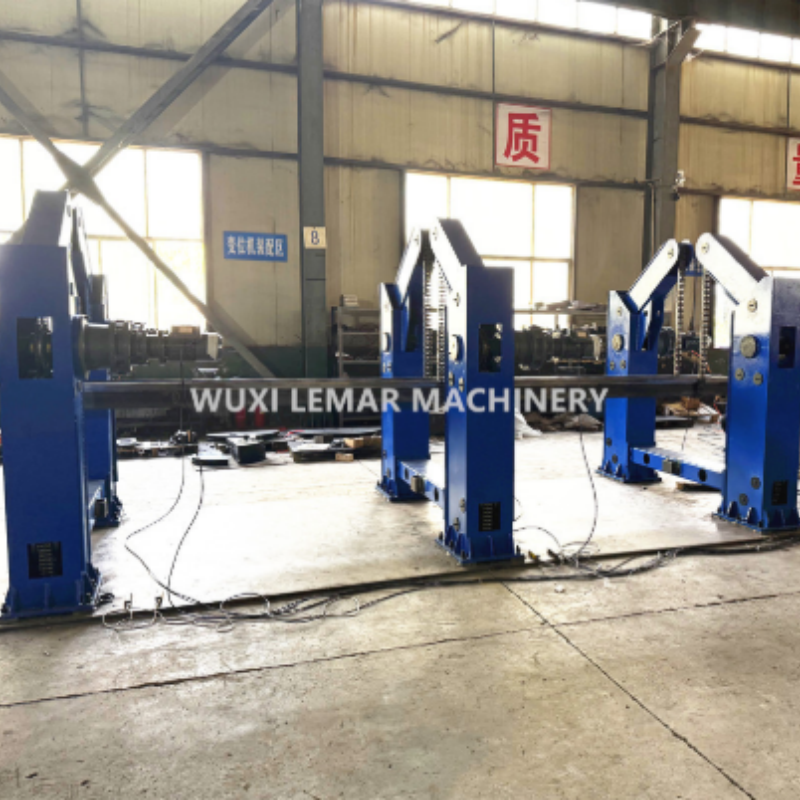

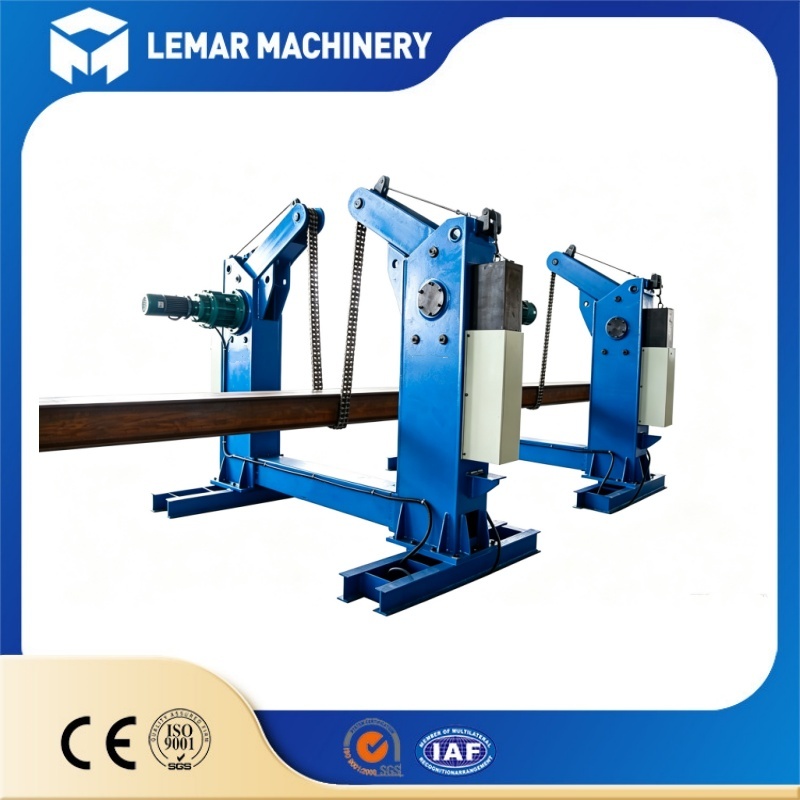

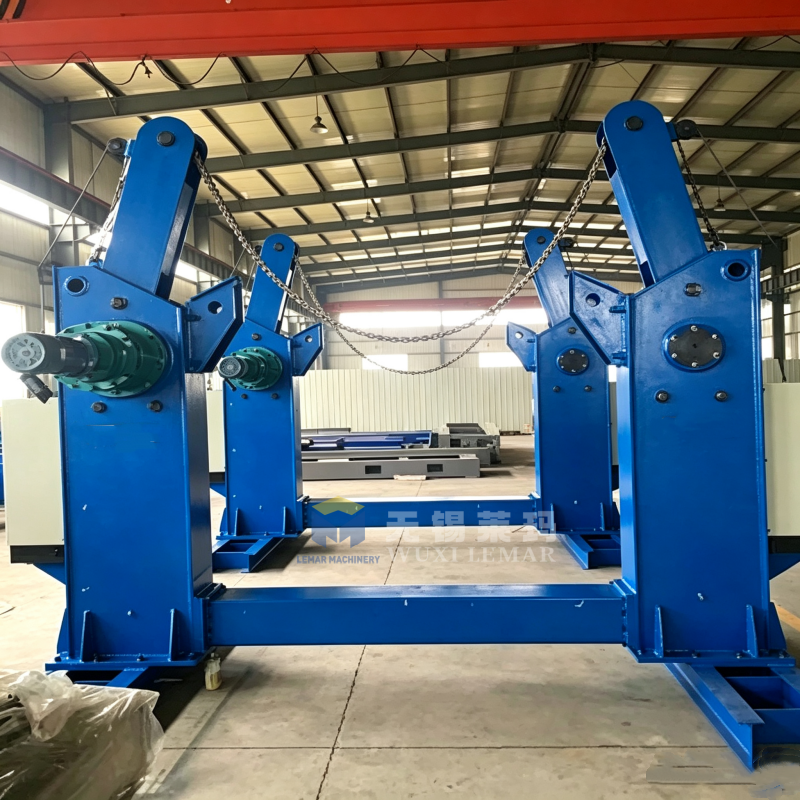

20 Ton Steel Structure Tilter Machine / H Beam Turning Rotator is heavy-duty workpiece flipping equipment widely used in steel fabrication workshops. It can safely turn H-beams, box beams and large welded steel structures to any required angle for boat-position welding and assembly.
20 Ton Steel Structure H Beam Tilter Machine Heavy Duty Beam Turning Rotator20 Ton Steel Structure H Beam Tilter Machine Heavy Duty Beam Turning Rotator
Core Advantages
  • 20 ton heavy load capacity, high rigidity main beam, stable performance for continuous heavy-duty operation
  • Synchronous dual drive system, anti-twist design, no slipping during beam turning
  • Remote wireless control, operator keeps distance from heavy workpiece for higher safety
  • Adjustable turning speed, can stop at arbitrary angle for welding and assembly
  • Wide compatibility, suitable for H-beam, box beam and various large steel structural members
  • Built-in safety interlock, overload protection and emergency stop function
  • Support OEM & ODM customization, CE certificate available
  • Simple maintenance, long service life, reduce crane usage and labor cost
Technical Parameters
Item Specification
Model 20 Ton H Beam Turning Rotator
Rated Load 20 Ton
Turning Angle 0~360° adjustable, stop at any angle
Drive Mode Dual motor synchronous chain drive
Control Method Wireless remote control + local button box
Applicable Workpiece H-beam, box beam, heavy steel structure assembly
Turning Speed Adjustable variable speed
Safety Device Overload protection, emergency stop, anti-slip protection
Input Voltage 380V / 415V customizable
Optional Accessory Reinforced chain, wear-resistant sling, safety guard
20 Ton Steel Structure H Beam Tilter Machine Heavy Duty Beam Turning Rotator20 Ton Steel Structure H Beam Tilter Machine Heavy Duty Beam Turning Rotator
Application Scope
  • Steel Structure Fabrication: Flipping H-beam, box beam for submerged arc welding and assembly
  • Bridge Construction Industry: Turning heavy bridge steel components for welding and inspection
  • Heavy Machinery Manufacturing: Flip large welded frame and mechanical structural parts
  • Prefab Steel Building: Workpiece turnover for steel column and beam production line
  • Welding Workshop Automation: Replace crane manual flipping to reduce workshop safety hazard

20 Ton Steel Structure H Beam Tilter Machine Heavy Duty Beam Turning Rotator

Matching Solutions
  • H-beam Welding Line Package: 20T H beam tilter + H beam straightening machine + SAW welding machine
  • Steel Structure Fabrication Cell: 20T turning rotator + welding manipulator + welding rotator
  • Custom Heavy Flipping System: Custom lifting frame, longer chain and reinforced structure for oversized workpieces
Optional accessories: heavy duty chain, textile sling, safety barrier, speed control module

Frequently Asked Questions
Q1: What is the max load capacity of this tilter machine?
A1: Rated load is 20 ton, designed for heavy H-beam and box beam turnover.
Q2: Can this machine stop at any angle during turning?
A2: Yes. Variable speed control, it can stop at arbitrary angle for boat-position welding.
Q3: What workpieces can this H beam turning rotator handle?
A3: Mainly for H-beam, box beam and large heavy welded steel structural assemblies.
Q4: Is the turning system stable, will the workpiece slip?
A4: Dual motor synchronous chain drive, anti-slip design to prevent twisting and slipping during flipping.
Q5: Can you customize voltage or reinforced structure?
A5: Yes, OEM & ODM available. Custom voltage, longer chain and heavy reinforced frame are optional.
Q6: What about warranty and delivery time?
A6: 12 months warranty. Lead time is 25-35 working days after deposit.
