Specifications
Brand Name :
Lemar
Model Number :
LTF-3T
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 set
Price :
500-5000USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500pcs/month
Delivery Time :
3 days
Packaging Details :
Standard Export package
Max loading weight :
3T 5T 10T 20T
Suitable for Beam size :
4000-20000mm
Turning angle :
±360°
Chain specifications :
Double chain
Warranty :
1 year
Turning speed :
1500mm/min
Motor :
6*0.75kw
Export port :
Shanghai,Tianjin,Ningbo
Voltage :
380V
Wheel material :
Steel or Polyurethane
Payment :
30% deposit+70% balance
MOQ :
1 set
Description

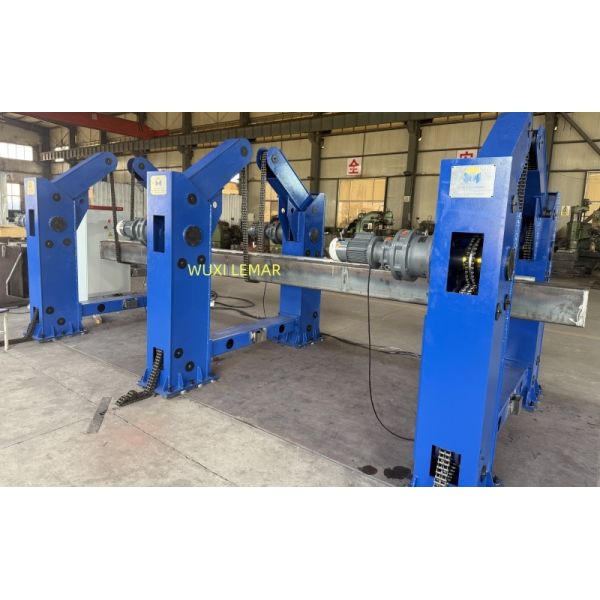

Chain Type 3T 360 Degree Rotating Beam Rotator
Chain-driven beam rotator is a mechanical device specifically designed to adjust the spatial orientation of large steel beams (such as H-beams, box beams, and U-beams) during manufacturing. Its core function is to safely and efficiently flip heavy steel beams, for example, by rotating them 180 degrees to facilitate welding on the other side, or by flipping them to the required angle during specific processes. It can also flip and lift irregularly shaped frame components to facilitate welding, painting, and assembly.
Composition and structure of chain-type tilting roller rotators

Item Details Function
Mechanical support structure Base/frame, support arm/column As the foundation of the entire turning rotator, it provides a stable mounting platform for all components and bears the full weight of the workpiece and equipment.
Sprocket and chain drive system Drive sprocket/driven sprocket, ring chain The chain, wound around the sprocket, forms a closed loop, creating a platform for supporting and rotating the workpiece. The sprocket drives the chain, using friction or a special structure to rotate the workpiece.
Drive and power system Motor (including reducer), drive shaft The motor provides power to the entire system. Through a speed reducer, it outputs appropriate torque and speed to drive the drive shaft and sprocket.
Electrical control system Control cabinet/control module, operation panel, sensors It controls the motor's start/stop, forward/reverse rotation, and speed to achieve precise control of the flipping motion and interacts with the operator.
Working Principle
Chain-driven tilting rollers are similar to welding positioners, and are heavy-duty devices that use chain drive to achieve 0-360° rotation of workpieces. Their core principle is to use a motor to drive sprockets and chains, transmitting power to components that support the workpiece (such as rollers or brackets), thereby causing the workpiece (usually an H-beam, I-beam, or U-beam) to rotate smoothly around an axis.
