Specifications
MOQ :
1
Delivery Time :
10-20 work days
Rotation Speed :
6~60 m/h, VFD stepless speed
Warranty :
12 months
Payment Terms :
T/T,D/P,D/A,L/C
Control :
Electric cabinet + wired remote control
Model Number :
KTG-20
Load Capacity :
5Ton /10Ton /20Ton
Price :
500-1000USD
Roller Material :
PU roller / Steel roller optional
Certification :
CE
Roller Adjustment :
Manual bolt/screw adjustable center distance
Supply Ability :
500 units/month
Brand Name :
LEMAR
Model :
KTG-5T / KTG-10T / KTG-20T
Packaging Details :
220.00cm * 130.00cm * 120.00cm
Place of Origin :
WUXI
Workpiece Diameter :
250–2500mm(5T);300–2800mm(10T);400–3000mm(20T)
Description

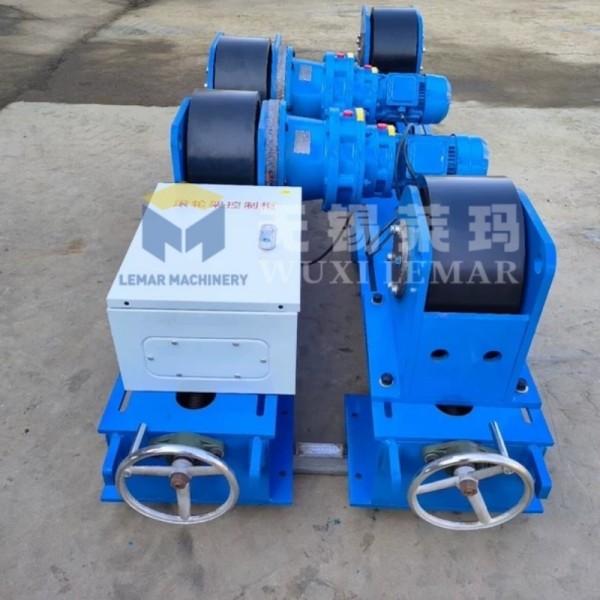

5Ton/10Ton/20Ton Tank Welding Roller, Adjustable Roller Spacing Welding Rotator
Adjustable Welding Rotator 5T 10T 20T

Adjustable welding turning rolls are designed for circumferential welding of cylindrical workpieces, including water tanks, boilers, small pressure vessels, pipes and stainless steel barrels. The roller center distance can be manually adjusted to adapt different cylinder diameters, widely used in metal fabrication workshops.

5Ton/10Ton/20Ton Tank Welding Roller, Adjustable Roller Spacing Welding Rotator5Ton/10Ton/20Ton Tank Welding Roller, Adjustable Roller Spacing Welding Rotator

Main Features
  • Adjustable Roller Spacing: Roller base with reserved holes or screw adjustment, easy to change roller distance to fit various tank OD. Suitable for mixed batch production.
  • VFD Stepless Rotation Speed: Stable variable frequency drive, smooth rotation, no shaking. Match SAW, MIG/TIG automatic girth welding.
  • Optional Roller Material: PU roller: Protect thin stainless plate surface, no scratch. Steel roller: For heavy carbon steel thick wall tank, high wear resistance.
  • Simple & Safe Operation: Equipped with control box and hand pendant, forward/reverse, speed adjustment, emergency stop function.
  • Robust Welded Frame: Heavy welded steel base, strong load bearing, low failure rate for long time continuous working.
Application

Pressure vessel, industrial boiler, water storage tank, chemical cylinder, pipe fabrication, steel structure workshop.

We also supply welding positioner, longitudinal seam welding machine, fiber laser cutter and plasma cutting machine. All machines are CE certified. For Russian market, we can support TR CU / EAC certification application.

Contact us for technical drawing, layout plan and quotation.

5Ton/10Ton/20Ton Tank Welding Roller, Adjustable Roller Spacing Welding Rotator5Ton/10Ton/20Ton Tank Welding Roller, Adjustable Roller Spacing Welding Rotator

Specification Table
Model Max Load Workpiece Dia. Roller Material Rotation Speed
KTG-5T 5 Ton 250-2500 mm PU / Steel 6~60 m/h
KTG-10T 10 Ton 300-2800 mm PU / Steel 6~60 m/h
KTG-20T 20 Ton 400-3000 mm PU / Steel 6~60 m/h
Package & Delivery
  • Standard export wooden case or bulk packing for the main machine.
  • Protective film on rollers and control cabinet to prevent scratch and rust.
  • Loading port: Shanghai / Ningbo / Lianyungang.
  • Lead time: 15-25 working days after receiving deposit.
  • Shipping term: EXW, FOB, CFR, CIF available.

5Ton/10Ton/20Ton Tank Welding Roller, Adjustable Roller Spacing Welding Rotator5Ton/10Ton/20Ton Tank Welding Roller, Adjustable Roller Spacing Welding Rotator

After-sales Service
  • 12-month warranty for the whole machine, excluding wearing parts.
  • Lifetime technical consultation support.
  • Online video guidance for installation, commissioning and troubleshooting.
  • Spare parts can be supplied at cost price after warranty period.

5Ton/10Ton/20Ton Tank Welding Roller, Adjustable Roller Spacing Welding Rotator

FAQ
Q1: What is the difference between adjustable rotator and self-aligning rotator?
A: Adjustable type needs manual adjustment of roller distance. Lower cost, good for fixed batch production. Self-aligning model automatically adapts cylinder diameter with no manual adjustment.
Q2: Can this rotator work with submerged arc welding system?
A: Yes. Stable low-speed rotation matches SAW girth welding. We can make linkage function upon request.
Q3: Can you support TR CU EAC certificate for Russia market?
A: Yes, our welding equipment can apply TR CU certification to meet EAEU customs clearance.
Q4: What's included in one set?
A: 1 driving roller +1 idler roller set, electric control cabinet, wired remote controller.
