10T Load Welding Self Centering Rotator 0 - 45° Tilt Adjustment Turning Rolls
10T Load Welding Self Centering Rotator 0 - 45° Tilt Adjustment Turning Rolls
10T Load Welding Self Centering Rotator 0 - 45° Tilt Adjustment Turning Rolls
10T Load Welding Self Centering Rotator 0 - 45° Tilt Adjustment Turning Rolls
10T Load Welding Self Centering Rotator 0 - 45° Tilt Adjustment Turning Rolls
10T Load Welding Self Centering Rotator 0 - 45° Tilt Adjustment Turning Rolls
Specifications
Brand Name :
Lemar
Model Number :
ZTG-10
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 set
Price :
500-5000USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500pcs/month
Delivery Time :
3 days
Packaging Details :
Standard Export package
Max loading weight :
10T
Suitable for pipe diameter :
400-2500
Roller size :
350*150mm
Linear speed :
6-60
Warranty :
1 year
Drive type :
Double drive
Motor :
1.5KW
Export port :
Shanghai,Tianjin,Ningbo
Voltage :
220V
Wheel material :
Steel or Polyurethane
Description
20T Long Axle Motor Drive Tank Pipe Welding Rotator

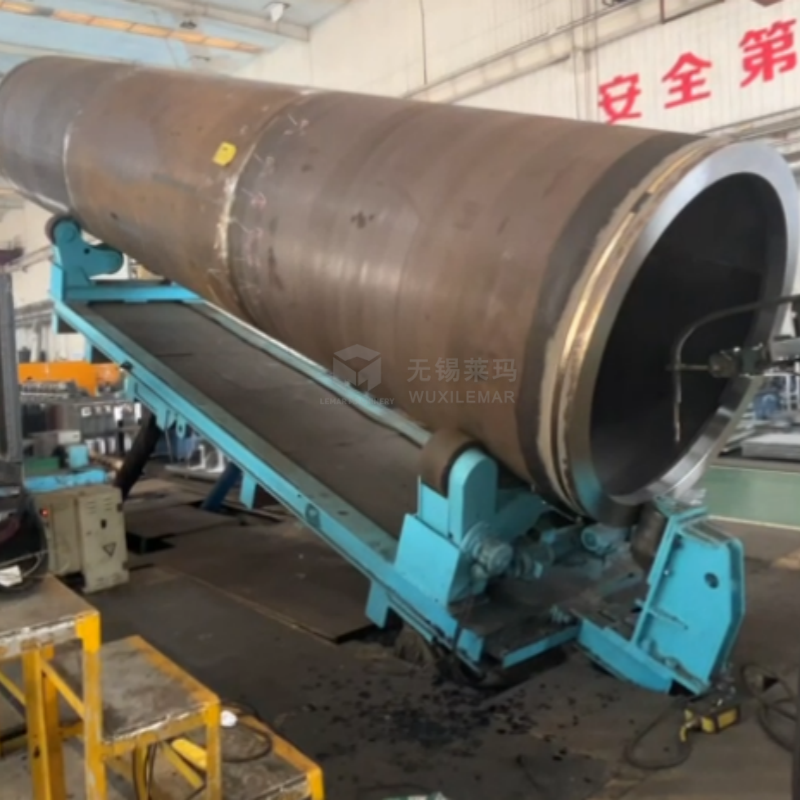

10T Tilt Welding Rotator with Self-Aligned Turning Rolls
The 10T Tilt Welding Rotator with self-aligned turning rolls is designed for cylindrical TIG, MIG, and LASER welding applications. This automated welding and processing equipment provides superior support and rotation for cylindrical workpieces including pipes, tanks, and pressure vessels.
Manufacturer Background
Wuxi Lemar Machinery Equipments Co., Ltd. is an intelligent manufacturing system integrating R&D, design, and production. As a well-known domestic enterprise, we specialize in steel structure equipment and complete welding equipment solutions. Our products serve construction machinery, boilers, pressure vessels, steel structures, wind power, and other industries, with exports to Southeast Asia, Middle East, Europe, United States, Brazil, South Africa, Pakistan, and many other countries.
Product Specifications
Loading Capacity 10T
Work Diameter 400~2500mm
Tilt Angle 0-45°
Linear Speed 6-60m/h
Power 380V/50Hz, 2.2kw
Tilt Mode Electric & Hydraulic
Key Features & Benefits
  • Tilting Capability: Based on horizontal rotation, the entire workpiece can tilt at angles from 0-45° using hydraulic cylinders, positioning welds in the optimal ship-shaped welding position
  • Self-Aligned Design: Adaptive adjustment capability ensures stable rotation for workpieces with different diameters, weights, or eccentricity
  • Versatile Applications: Ideal for welding cylindrical bodies with flanges, spokes, or pipes including road roller rollers, wind tower flanges, tube sheets, and complex thick-walled workpieces
  • Enhanced Welding Performance: Transforms fillet welds and complex welds into optimal positions, significantly improving welding speed and weld finish aesthetics
10T Load Welding Self Centering Rotator 0 - 45° Tilt Adjustment Turning Rolls
This industrial welding rotator excels in handling irregular or complex workpieces, providing precise control and superior weld quality through its advanced tilting and self-alignment capabilities.
