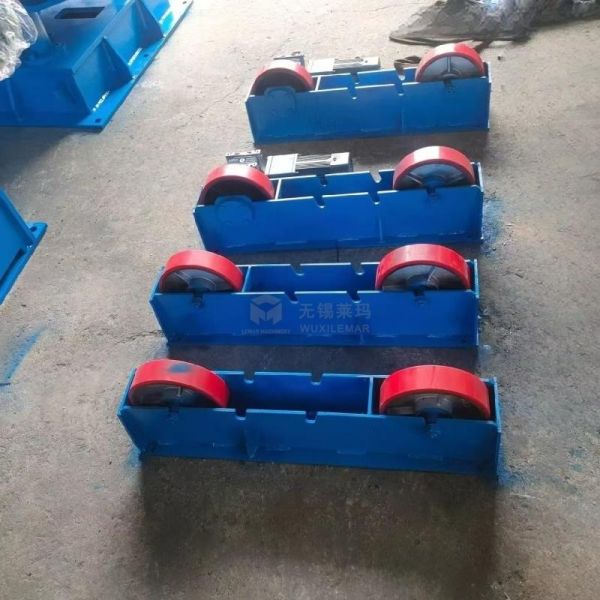

2000kg Welding Rotator Motorized Turning Rolls For Girth Welding 80 - 1200mm Pipe
2000kg Welding Rotator Motorized Turning Rolls For Girth Welding 80 - 1200mm Pipe
2000kg Welding Rotator Motorized Turning Rolls For Girth Welding 80 - 1200mm Pipe
2000kg Welding Rotator Motorized Turning Rolls For Girth Welding 80 - 1200mm Pipe
2000kg Welding Rotator Motorized Turning Rolls For Girth Welding 80 - 1200mm Pipe
2000kg Welding Rotator Motorized Turning Rolls For Girth Welding 80 - 1200mm Pipe
Specifications
Brand Name :
Brand
Model Number :
ZTG-3
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 set
Price :
500-5000USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500pcs/month
Delivery Time :
3 days
Packaging Details :
Standard Export package
Max loading weight :
2T
Suitable for pipe diameter :
80-1200
Roller size :
300*50mm
Linear speed :
6-60
Warranty :
1 year
Reducer type :
AC
Colour :
Blue,Yellow or Customized
Export port :
Shanghai,Tianjin,Ningbo
Voltage :
220V
Wheel material :
Steel or Polyurethane
Description
2000kg Motorized Turning Rolls for Girth Welding of Pressure Vessels
In the manufacturing process of heavy equipment such as pressure vessels, boilers, and pipelines, circumferential welding is a critical process that determines the safety and lifespan of the equipment. Welding rotators, as the core auxiliary equipment for realizing this process, have become an indispensable "rotary support" on modern pressure vessel manufacturing lines due to their stability and high efficiency.
Product Specifications
Model ZTG-2
Max Loading Weight 2T
Suitable for Pipe, Cylinder and Tank Ø80-Ø1500
Polyurethane Roller Size Ø250*50
Linear Speed of Welding Rotator 80-1600mm/min
Motor Power 370W
Way of Control AC 220V/110V
Structural Features
For pressure vessels of different specifications, roller frames are mainly divided into the following structural forms:
Self-Adjusting Welding Rollers
  • Automatically adjusts the swing angle of the roller assembly according to the workpiece diameter
  • Eliminates the need for manual adjustment of the roller spacing
  • Suitable for applications requiring frequent changes in workpiece diameter and multi-specification production
  • High efficiency with relatively complex structure
  • Load-bearing capacity limited by the swing angle
Adjustable Welding Rollers
  • Spacing between driving and driven rollers is manually adjusted via screw or bolt mechanism
  • Accommodates different workpiece diameters through manual adjustment
  • Suitable for large batches of workpieces with relatively fixed diameters
  • Simple structure with low cost and strong load-bearing capacity
Anti-Axial Movement Rollers
  • Equipped with displacement detection sensors and control system
  • Automatically corrects axial movement of the cylinder during welding
  • Adjusts driven roller height to maintain weld seam alignment
  • Suitable for long cylinder butt welding and high precision applications
  • Ideal for surfacing welding and LNG storage tanks with strict requirements
