1000kg CE Welding Rotator Turning Roll For Round Pipes With Foot Pedal
1000kg CE Welding Rotator Turning Roll For Round Pipes With Foot Pedal
1000kg CE Welding Rotator Turning Roll For Round Pipes With Foot Pedal
1000kg CE Welding Rotator Turning Roll For Round Pipes With Foot Pedal
1000kg CE Welding Rotator Turning Roll For Round Pipes With Foot Pedal
1000kg CE Welding Rotator Turning Roll For Round Pipes With Foot Pedal
Specifications
Packaging Details :
Standard Export package
Payment Terms :
L/C,D/A,D/P,T/T,
Supply Ability :
500pcs/month
Linear speed :
6-60
Place of Origin :
China
Suitable for pipe diameter :
200-800
Roller size :
250*50mm
Motor :
370W
Certification :
CE Certificate
Price :
500-5000USD
Delivery Time :
3 days
Max loading weight :
1T
Model Number :
ZTG-1
Colour :
Blue,Yellow or Customized
Wheel material :
Steel or Polyurethane
MOQ :
1 set
Export port :
Shanghai,Tianjin,Ningbo
Voltage :
220V
Brand Name :
Brand
Reducer type :
AC
Description

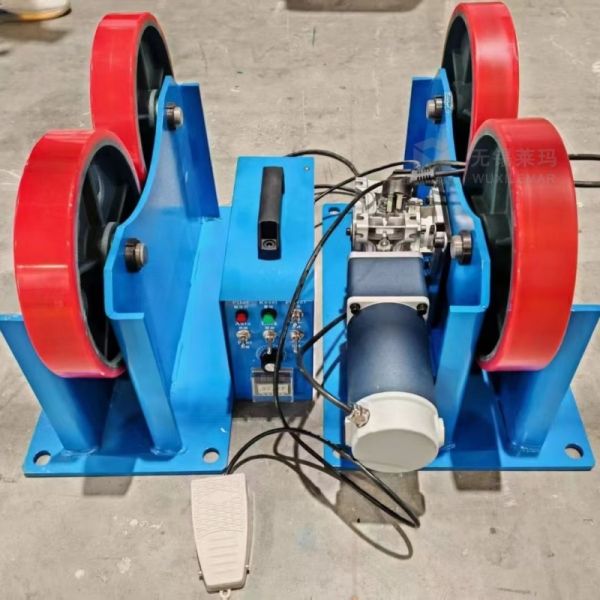

1000kg Welding turning roll for rotating round pipes with foot pedal

1000kg Welding turning roll with a rated load of 1 ton, mainly suitable for cylindrical and columnar pipes with diameters between 20mm and 800mm. This equipment is typically sold in sets, consisting of one active frame and one passive frame. The active roller frame provides rotational power to the workpiece via a motor, while the passive frame provides follow-up support; the two work together to achieve smooth rotation of the workpiece.

Specification:

Model ZTG-1
Max loading weight 1T
Suitable for pipe cylinder and tank Ø20-Ø800
Polyurethane roller size Ø250*50
Linear speed of welding rotator 80-1600mm/min
Motor power 370W
Way of control AC 220V/110V

Structural composition

Active turning rolls:

Includes a drive motor, reducer, control system, and two active rollers.

Driven turning rolls:

Includes two driven rollers, without a power source, and rotates freely with the workpiece.

Roller material:

Typically uses an inner iron core and an outer rubber (or polyurethane) structure. This design ensures the roller's load-bearing strength while utilizing the high coefficient of friction and elasticity of rubber to effectively increase friction with the workpiece, preventing slippage and protecting the workpiece surface from scratches.

1000kg CE Welding Rotator Turning Roll For Round Pipes With Foot Pedal

Creating Core Value

1. Improves welding efficiency and quality.

2. Reduces labor intensity and costs; pipe fittings can be placed on roller frames and rotated by a motor.

3. Ensures welding safety and precision.

4. Enables users to perform various circumferential welding tasks, including manual welding, TIG welding, gas shielded welding, and submerged arc welding.

5. Welding turning rolls are not only suitable for welding but also for polishing, grinding, assembly, and other applications.
