5T Lead Screw Self Aligning Rotator 300 - 2800mm Pipe Diameter Turning Rolls
5T Lead Screw Self Aligning Rotator 300 - 2800mm Pipe Diameter Turning Rolls
5T Lead Screw Self Aligning Rotator 300 - 2800mm Pipe Diameter Turning Rolls
5T Lead Screw Self Aligning Rotator 300 - 2800mm Pipe Diameter Turning Rolls
5T Lead Screw Self Aligning Rotator 300 - 2800mm Pipe Diameter Turning Rolls
5T Lead Screw Self Aligning Rotator 300 - 2800mm Pipe Diameter Turning Rolls
Specifications
Brand Name :
Lemar
Model Number :
KTG-5
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 set
Price :
500-5000USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500pcs/month
Delivery Time :
3 days
Packaging Details :
Standard Export package
Max loading weight :
5T
Suitable for pipe diameter :
300-2800
Roller size :
300*300mm
Linear speed :
6-60
Warranty :
1 year
Drive type :
Double drive
Motor :
0.75kw
Export port :
Shanghai,Tianjin,Ningbo
Voltage :
380V
Wheel material :
Steel or Polyurethane
Description

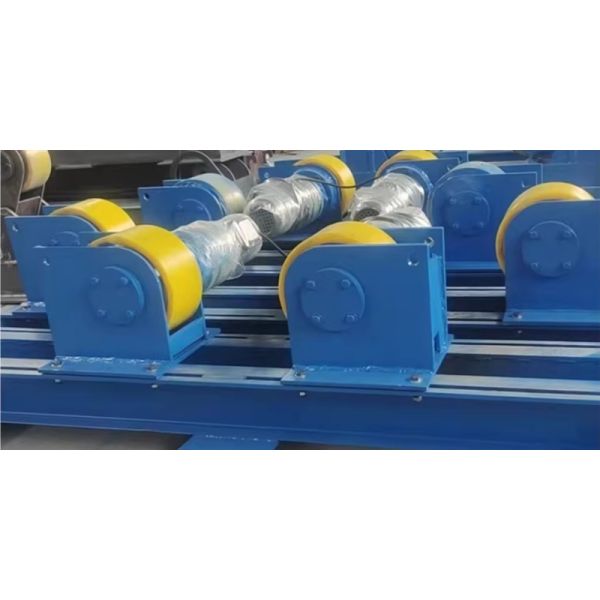

5T Lead Screw Adjustable Welding Rotator
The 5T Lead Screw Adjustable Welding Rotator is a precision welding auxiliary device designed to support and drive the rotation of cylindrical workpieces for welding internal and external circumferential and longitudinal seams.
Application Scope
Standard Workpieces
Ideal for cylindrical bodies including pipes, pressure vessels, boilers, oil tanks, and wind towers.
Irregularly Shaped Workpieces
By adjusting the height of driving and driven rollers, suitable for conical bodies and segmented rotating bodies with unequal diameters.
Non-Circular Elongated Parts
When clamped in specially designed annular fixtures, enables welding operations on non-circular elongated weldments.
5T Lead Screw Self Aligning Rotator 300 - 2800mm Pipe Diameter Turning Rolls

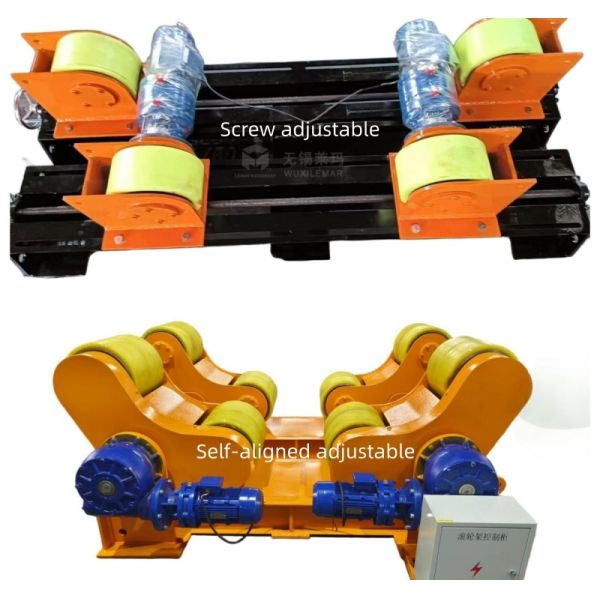

Comparison: Screw Adjustable vs Self-Aligned Adjustable Rotators
Feature Screw Adjustable Self-Aligned Adjustable
Adjustment Method Manual rotation of lead screw (handwheel) adjusts roller center distance Automatic swing angle adjustment via clamp-like frame structure
Operating Characteristics Requires machine stop for manual adjustment when changing diameters, but offers wider adjustment range Automatic adjustment when workpiece is hoisted into place, with strict application scope
Core Structure Base, lead screw, guide block, roller assembly Clamping frame with rotating shaft, roller assembly
Adjustment Accuracy High precision, reliably maintains set position for centering operations Depends on mechanical flexibility and workpiece weight, primarily for stable support
Applicable Scenarios Frequent diameter variations, multiple specifications, strict assembly accuracy requirements Mass production of cylindrical bodies, diameter variations within range, high-efficiency workflow

If efficiency is paramount and you want to reduce work time, with the pipe rotating automatically once hoisted, then self-adjusting rollers would be more suitable.

If precision is the priority, especially for frequent cylinder assembly and precise control of the center distance, then reliably adjustable and accurately positioned lead screw-type adjustable rollers are a more reliable choice.

5T Lead Screw Self Aligning Rotator 300 - 2800mm Pipe Diameter Turning Rolls
