Light Duty 5T Adjustable Welding Rotator With Polyurethane Rollers
Light Duty 5T Adjustable Welding Rotator With Polyurethane Rollers
Light Duty 5T Adjustable Welding Rotator With Polyurethane Rollers
Light Duty 5T Adjustable Welding Rotator With Polyurethane Rollers
Light Duty 5T Adjustable Welding Rotator With Polyurethane Rollers
Light Duty 5T Adjustable Welding Rotator With Polyurethane Rollers
Specifications
Supply Ability :
500 units/month
Max Loading Weight :
5ton
Model Number :
KTG-5
Welding Turning Rolls Type :
Adjustable
Payment Terms :
L/C,D/A,D/P,T/T,
Drive Motor :
0.55kw*2
Price :
500-1000USD
Wheels Quantity :
4 Wheels
Certification :
CE
Suitable Pipe Diameter :
250-2800mm
MOQ :
1
Delivery Time :
10-20 work days
Colour :
Customized
Rubber Roller Diameter :
225mm
Brand Name :
LEMAR
Model NO. :
KTG-5
Place of Origin :
WUXI
Roller Linear Speed :
100-1000mm/Min
Packaging Details :
220.00cm * 130.00cm * 120.00cm
Description
Light Duty 5T Adjustable Welding Rotator With Polyurethane Rollers
Light Duty 5T Adjustable Welding Rotator With Polyurethane Rollers
Product Overview

This 5 ton adjustable self-align welding rotator is light-duty equipment specially designed for small-diameter pipes, boiler shells and pressure vessel cylinder sections. Equipped with polyurethane anti-slip rollers, it protects workpiece surfaces without scratches. Variable frequency speed regulation ensures smooth rotation for circumferential automatic welding. Compact overall size saves workshop space, making it widely applicable in small metal fabrication workshops.

We offer 12-month full machine warranty and lifelong remote technical debugging service.

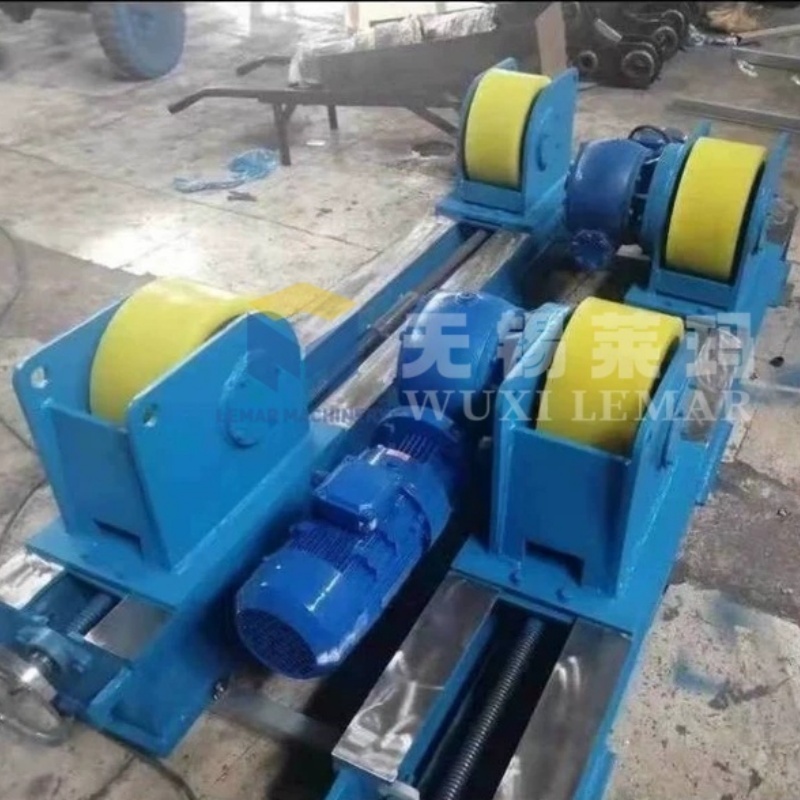

Light Duty 5T Adjustable Welding Rotator With Polyurethane RollersLight Duty 5T Adjustable Welding Rotator With Polyurethane Rollers
Technical Specifications
Parameter Item Specification
Max Rated Load 5 Tons (11000 Lbs)
Adjustment Mode Manual Self-align
Control Mode Variable Frequency Stepless Speed Control
Drive Type Dual Wheel Synchronous Drive
Rotating Linear Speed 80 - 1600 mm/min
Roller Material Polyurethane Wear-resistant Roller
Running Noise ≤ 65 dB
Continuous Working Time 24 Hours Non-stop
Speed Regulation Accuracy ± 2%
Applicable Workpiece Diameter 50 - 1200 mm
Min Workpiece Thickness 0.5 mm
Max Workpiece Length 6000 mm
Roller Center Distance Adjustment 150 - 800 mm
Overall Dimension 1200 × 650 × 450 mm (L×W×H)
Roller Specification φ120 × 60 mm
Frame Material Thickened Welded Steel Structure
Core Advantages
  • Manual self-align design for quick centering of different diameter workpieces
  • Soft PU rollers prevent scratches on stainless steel and thin plate surfaces
  • VFD speed control with stepless adjustable rotation speed for various welding processes
  • Synchronous dual driving wheels ensure uniform rotation without workpiece slipping
  • Thickened integral steel frame provides anti-deformation for long-time continuous work

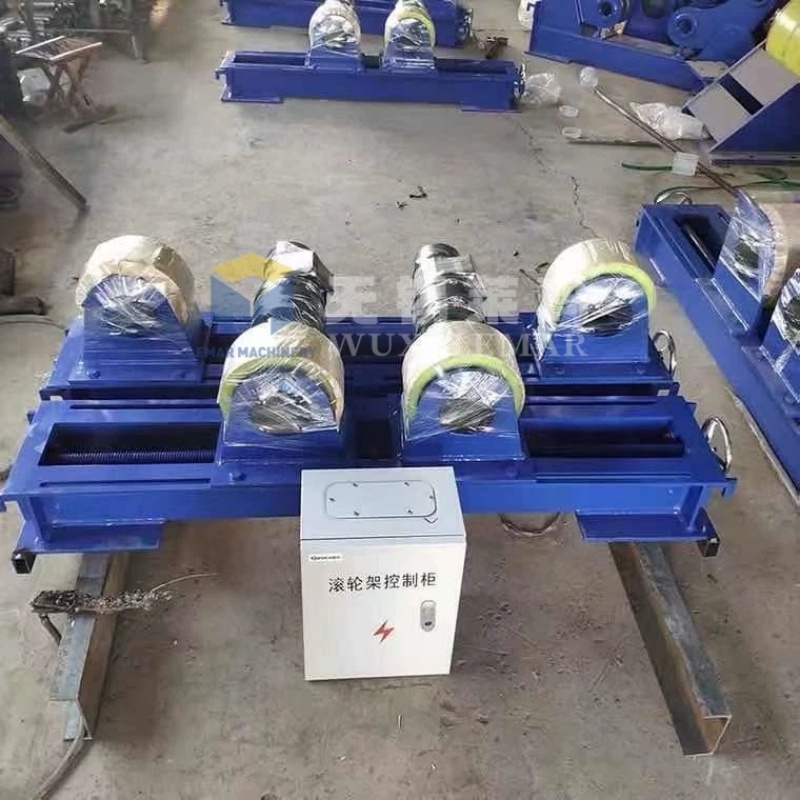

Light Duty 5T Adjustable Welding Rotator With Polyurethane RollersLight Duty 5T Adjustable Welding Rotator With Polyurethane Rollers
Working Principle
  • Two groups of driving and driven rollers bear cylindrical workpieces together
  • Dual synchronous motors drive rollers to rotate the tank evenly for circumferential welding

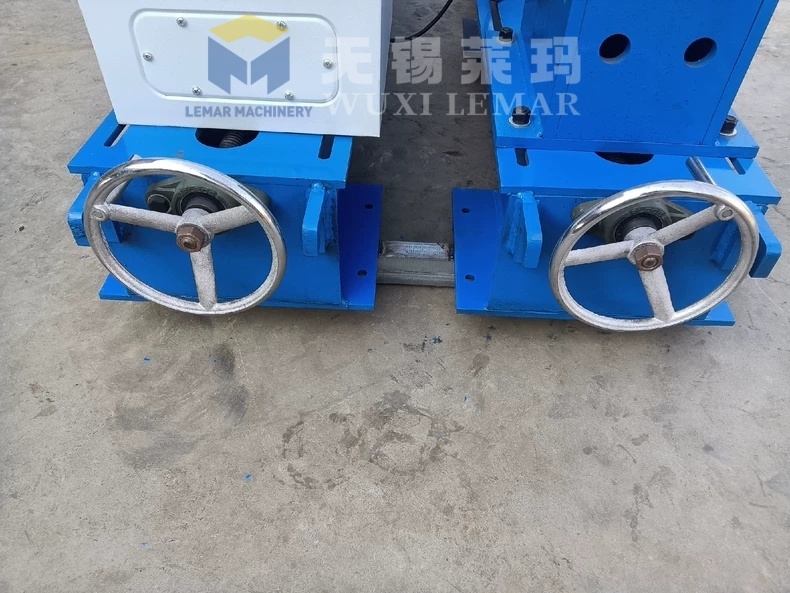

  • Manual screw adjustment changes roller center distance to fit different tube diameters
  • Frequency converter controls motor speed to match automatic welding operation speed
  • PU rollers increase friction coefficient to avoid workpiece sliding during rotation

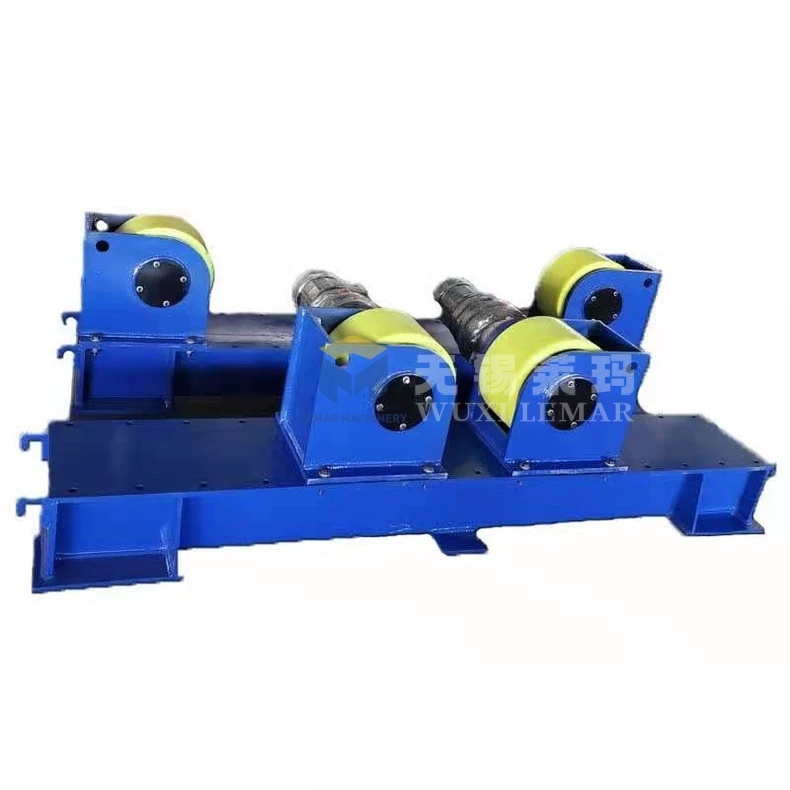

Light Duty 5T Adjustable Welding Rotator With Polyurethane RollersLight Duty 5T Adjustable Welding Rotator With Polyurethane Rollers
Application Scope
  • Small boiler and pressure vessel cylinder assembly welding
  • Stainless steel pipeline and thin-wall tank circumferential welding
  • Fire pipe, water storage tank and small cylinder processing
  • Metal workshop small batch automatic welding production line
  • Petrochemical thin shell pipe manufacturing and processing
Frequently Asked Questions
Q: Can this 5t adjustable welding rotator process thin stainless steel cylinders?

A: Yes, soft polyurethane rollers avoid surface scratches, making it suitable for thin stainless, carbon steel and aluminum tanks.

Q: Is the rotating speed adjustable?

A: Adopt variable frequency control with speed range 80-1600mm/min for flexible welding production.

Q: What's the minimum workpiece diameter it can handle?

A: Minimum applicable workpiece diameter reaches 50mm, ideal for small batch pipe welding.

Q: Does this rotator pass CE certification for EU export?

A: All electrical and mechanical parts meet CE export standard, with complete certification documents provided.

Q: Do you supply spare rollers and motors after purchase?

A: Long-term factory direct supply of all matching spare parts at factory cost price.
