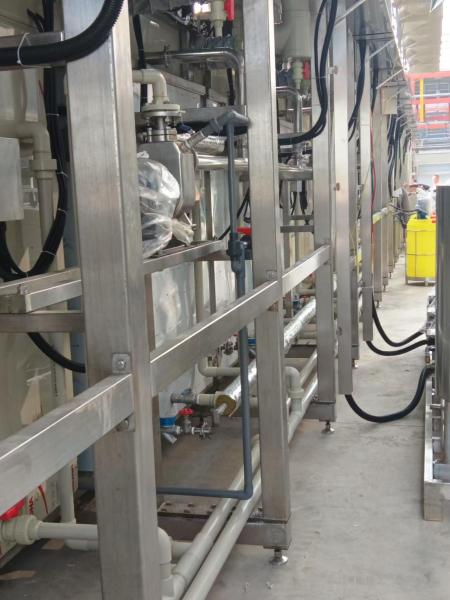

Iron Hardware Automatic Ultrasonic Cleaner With High Temperature Spray Drying For Furniture Fittings
Iron Hardware Automatic Ultrasonic Cleaner With High Temperature Spray Drying For Furniture Fittings
Specifications
Brand Name :
Hongshun
Model Number :
HS-1300SC
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$100,00 to $3000,0
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
50 days
Packaging Details :
film
Applications :
Furniture Fittings
PLC :
Mitsubishi of Japan
spray pressur :
130bar
Power supply :
380±10%/50HZ
Dryer temperature :
60-80℃
Ultrasonic frequency :
28KHZ
Description

Spray Washer for Iron Hardware with High Temperature Spray Drying for Furniture Fittings

Spray Washer Overview:

Uses high-temperature (60-80℃) spray at 130bar to clean iron furniture fittings. Its rugged structure withstands heavy use, and the dryer cuts drying time by 30%. Suitable for furniture factories producing hinges and handles, removing rust inhibitors and welding residues.

Cleaning requirements Reference(residues):

1. Total weight less than or equal to 4.5mg

2. Metal diameter less than or equal to 600um

3. Non-metallic diameter less than or equal to 1800um

4. Fiber length is less than or equal to 4000um

5. After cleaning, there should be no watermark on the surface (with pure water machine), and it should be completely dry (blind hole)

Reference of process flow:(workpiece flow direction → left in and right out)

Manual feeding → ultrasonic cleaning → fixed-point spraying → air cutting → fixed-point spraying → mobile spraying → mobile air cutting → fixed-point air cutting → vacuum drying → cooling section → automatic unloading (truss manipulator) → full inspection and packaging

Partial configuration Of Spray Cleaning Equipment:

2.2 Ultrasonic cleaning section

ordinal

1 section (section 2); 1 work station

Washing tank

structure

Inner tank size

L900×W780×H300mm (provisional, effective use height 300mm).

material

SUS304,2.5mm thick, single mirror stainless steel plate.

Configuration instructions

The cover of ultrasonic cleaning tank can up and low for control . When the product flows to this station, the top of the upper and lower cylinders lifts the seal, and the water pump starts to inject water. When the liquid level reaches the specified height, the ultrasonic starts to clean the product. After the time, the water is discharged from the bottom

Ultrasonic system

vibrator

The number of ultrasonic shockers is 30 per tank, and the power of each shocker is 60W.

Ultrasonic power: 1800W/cage.

Ultrasonic frequency: 28KHZ.

The ultrasonic output power is continuously adjustable, and all the ultrasonic transducers are imported from NTK in Japan.

ultrasonic

generator

It adopts the method of excitation and has a scanning circuit, and the output power is continuously adjustable.

circulating filtration

Storage tank

material

SUS304 single mirror panel, 2.5mm thick, equipped with a closed cover, and thermal insulation cotton is attached outside the groove.

configure

The tank is equipped with liquid level control, automatic shutdown of circulation pump and heating system without liquid, and sound and light alarm.

heat

SUS304 tubular heater is heated with a heating power of 6KW/cylinder.

heating control

Japanese "Omron" digital display temperature control.

filtration pump

Hangzhou "Lingxiao" single pole centrifugal pump is adopted.

Filter accuracy

10u, stainless steel filter, bag filter.

dissolvant

organic solvent

For a complete technical solution Of Spray Washer, please contact me. We will customize the design based on your product technical requirements and factory layout.

Our typical customers:

Iron Hardware Automatic Ultrasonic Cleaner With High Temperature Spray Drying For Furniture Fittings Iron Hardware Automatic Ultrasonic Cleaner With High Temperature Spray Drying For Furniture Fittings

About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
