ordinal

1 section (section 3); 1 work station

structure

structure

ü The spray pipe is effectively set in the inner cavity according to the shape of the workpiece, and the external spray system is connected

ü The whole machine adopts stainless steel frame structure, and emergency stop button is set at both ends and the middle of the equipment

ü Observation and maintenance Windows are arranged in front of each station.

ü Pneumatic isolation doors are set between each spray working chamber to avoid mixing cleaning liquid

ü The bottom of the working chamber of the equipment is a sloping funnel structure, so that the liquid is directly discharged to the storage tank,

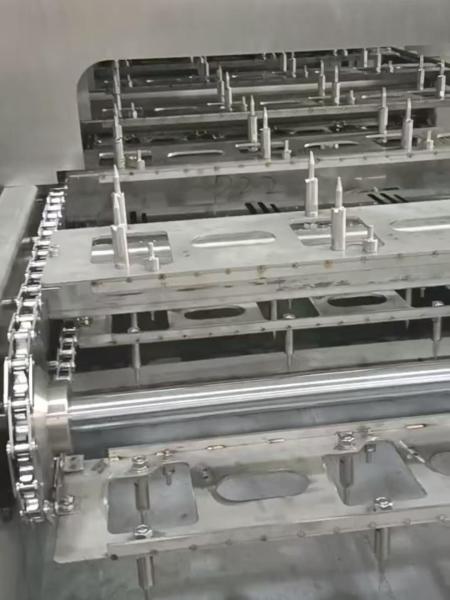

spray system

spray pipe

Material: SUS304 pipe; Model: Φ27;

The nozzle assembly is controlled by a valve and has a pressure display.

fan nozzle

ü Material: SUS304 material;

ü The fan nozzle is arranged on the spray pipe according to the shape of the workpiece to be cleaned.

spray pump

An immersion pump set is used.

The spray pressure can be adjusted within 8Bar

bag filter

Set a stainless steel bag filter with a filtration accuracy of 20μm. Set a water pressure gauge behind the filter to indicate the cleaning of the filter bag.

reservoir

volume

The volume of the storage tank is designed according to the spray flow, and 10mm thermal insulation cotton is attached to reduce heat loss.

material

2.5mm SUS304.

structure

Set low liquid level sensor;

The liquid level height mark is set in front;

Set up a maze structure to effectively separate the oil and impurities separated after product cleaning;

heating system

heating

Built-in SUS304 heating rod, power 2X6KW=12KW. It can be heated from room temperature 20℃ to 40℃ within 30 minutes

temperature controlling system

Digital display thermostat, control accuracy ±5℃.

Principle of cyclic filtration: multi-stage filtration

The spray water is returned through the return port (tray type stainless steel coarse filter screen (upper and lower layers of coarse and fine) (filter screen before the pump inlet (pump (bag filter 10μm (spray pipe
