Zinc Plated Parts Spray Cleaning Machine Hardware Manufacturing Ultrasonic Cleaning Line
Zinc Plated Parts Spray Cleaning Machine Hardware Manufacturing Ultrasonic Cleaning Line
Specifications
Brand Name :
Hongshun
Model Number :
HS-2300SC
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$100,00 to $30,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
50 days
Packaging Details :
film
Applications :
Zinc Plated Parts
conveyor speed :
3-10m/min
spray pressur :
90bar
Power supply :
380±10%/50HZ
Dryer temperature :
50℃
Ultrasonic frequency :
28KHZ
Description

Spray Washer for Zinc Plated Parts with Low Pressure Setting Drying Hardware Manufacturing

Spray Washer Overview:

Low pressure (90bar) setting protects zinc plating on hardware parts. The spray system covers all surfaces, and the 50℃ dryer prevents plating damage. Suitable for hardware manufacturing of door handles and hooks, removing polishing wax and fingerprints.

Cleaning requirements Reference(residues):

1. Total weight less than or equal to 4.5mg

2. Metal diameter less than or equal to 600um

3. Non-metallic diameter less than or equal to 1800um

4. Fiber length is less than or equal to 4000um

5. After cleaning, there should be no watermark on the surface (with pure water machine), and it should be completely dry (blind hole)

Reference of process flow:(workpiece flow direction → left in and right out)

Manual feeding → ultrasonic cleaning → fixed-point spraying → air cutting → fixed-point spraying → mobile spraying → mobile air cutting → fixed-point air cutting → vacuum drying → cooling section → automatic unloading (truss manipulator) → full inspection and packaging

Partial configuration Of Spray Washer:

2.6 Mobile spraying rinsing (pure water)

Mobile institutions

Electric cylinder + servo drive is adopted, and external spray pipe or compressed air nozzle can be added

structure

Electric cylinder 1 set

Two SUS hardened guide rods

Import 4 sets of sliders

A schematic diagram of a mobile mechanism

pay attention to

If the cleanliness cannot be achieved, the water at this station can not be reused!

For a complete technical solution Of Spray Washer, please contact me. We will customize the design based on your product technical requirements and factory layout.

Our typical customers:

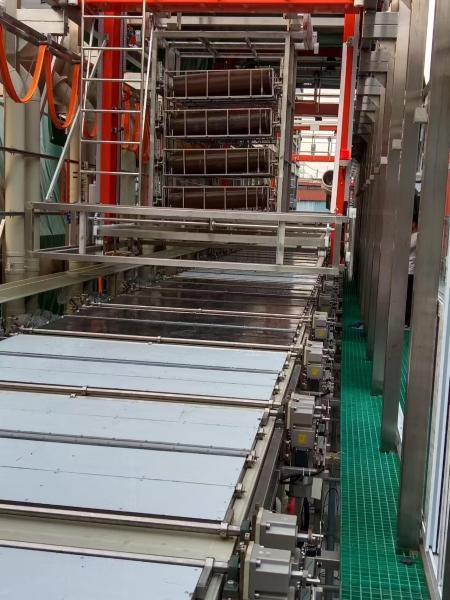

Zinc Plated Parts Spray Cleaning Machine Hardware Manufacturing Ultrasonic Cleaning Line Zinc Plated Parts Spray Cleaning Machine Hardware Manufacturing Ultrasonic Cleaning Line

About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
